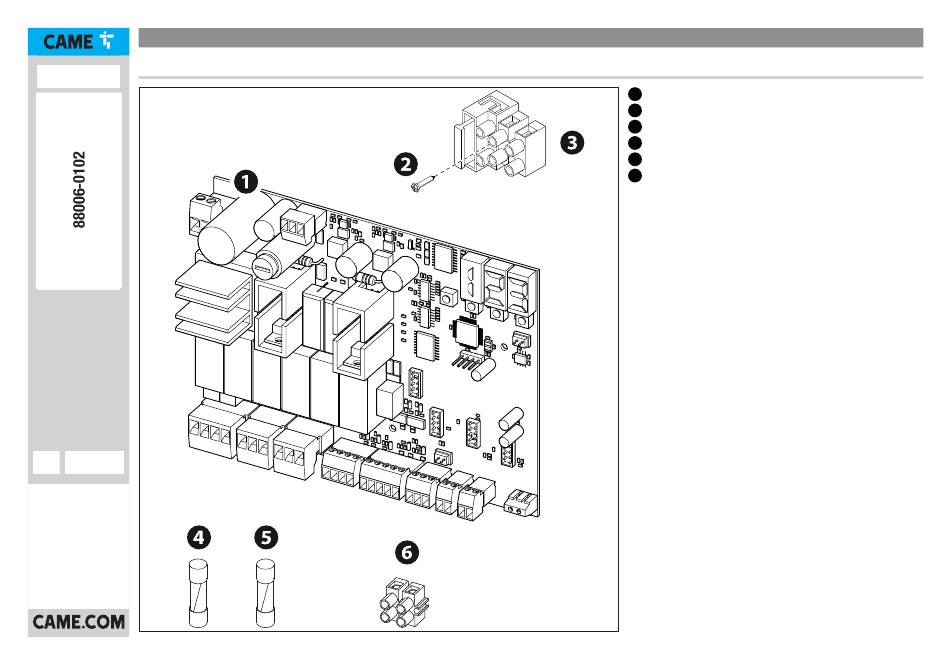

DESCRIPTION OF PARTS
KIT components
FA02034-EN
88006-0102
EN
English
CAME S.p.A.
Via Martiri della
Libertà, 15
31030 Dosson di Casier
Treviso – Italy
Tel. (+39) 0422 4940
Fax (+39) 0422 4941
info@came.com -
www.came.com
12/2023 - FA02034-EN
1

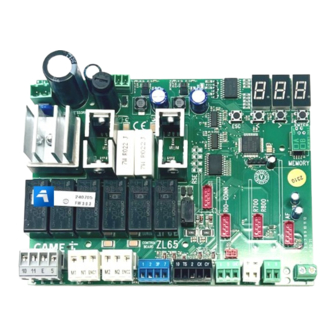

Control board ZL65 (002ZL65)
2
Fastening screw 2.9x16
3
Terminal block with fuse compartment
4
Fuse 2 A F (lien 230 V)
5
Fuse 5 A F (line 120 V)
6
2-pole terminal block
