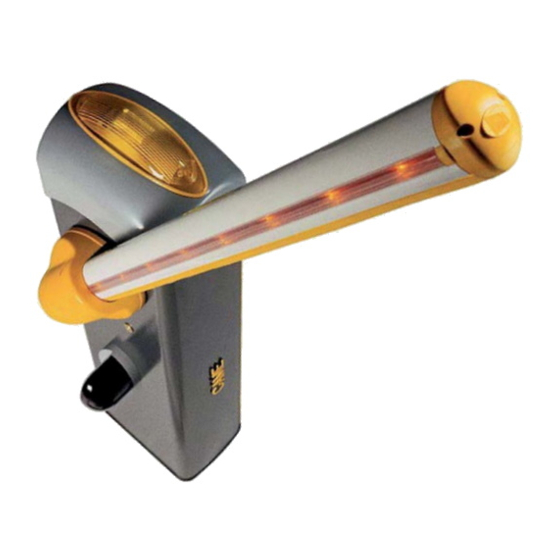

AUTOMATION FOR STREET BARRIERS
GARD 8
SERIES
INSTALLATION MANUAL
G2081 - G2081I

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GARD 8 SERIES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CAME GARD 8 SERIES

Summary of Contents for CAME GARD 8 SERIES

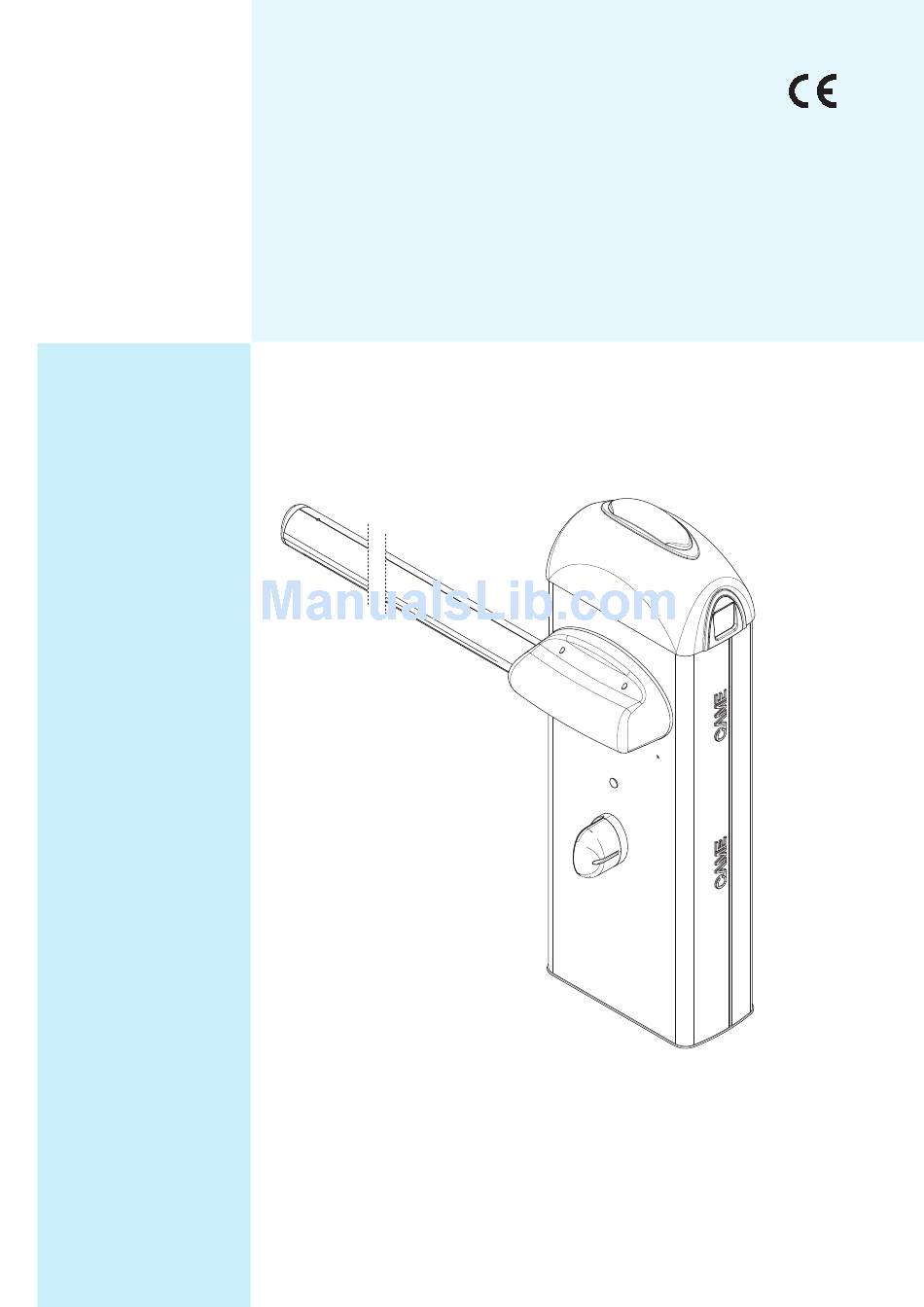

  • Page 1 AUTOMATION FOR STREET BARRIERS GARD 8 SERIES INSTALLATION MANUAL G2081 - G2081I...
  • Page 2 001 G02809 – Red reflector strips (package of 20); 001 G02806 - Painted aluminium rack in 2m modules; Important! Check that the safety equipment and accessories are CAME originals; this is a guarantee that also makes the system easy to set up and upkeep.

  • Page 3: Support Bracket

    G06080 - Ø55 (red) balancing spring G02806 - Rack G02802 - Support for DIR photoelectric cells G02803 - Luminous cord G02807 - Fixed barrier support G02808 - Mobile barrier support CAME CAME G02809 - Adhesive reflector strips CAME CAME G02801 - Flashing dome lamp...

  • Page 4: Installation

    4.4 Size measurements Measurements in mm 5 Installation Installation must be carried out by expert qualified personnel and in full observance of regulations in force. 5.1 Preliminary checks Before proceeding with the installation, it is necessary to: • Make sure the area selected for the mounting of the base and for the unit itself presents no hazards; •...
  • Page 5 5.3 Cable list and minimun thickness Connections Type of cable Length of cable 1 < 10 m Length of cable 10 < 20 m Length of cable 20 < 30 m 230V 2F power supply 3G x 1,5 mm 3G x 2,5 mm 3G x 4 mm 230V motor power supply 3 x 1 mm...
  • Page 6 5.4 Fitting for unit base The following applications are only examples, as the space required for unit installation and the accessories vary depending on dimensions and therefore it is up to the installer to select the best solution. - Prepare a hole to house the fixing base and prepare sheath tubes from the branch pit for the connections.

  • Page 7: Installation Of The Unit

    5.5 Installation of the Unit - Open the door with the proper key, remove the top dome and take out the inspection door. - The barrier is designed to be installed on the left of the gateway as seen from inside. Lever arm Transmission - Should installation on the right be...
  • Page 8 - Position the middle plate between the fitting plate and the Bar beam plate bar-fitting cover, and put in one UNI 5931 M8x20 screw Bar fi tting inter- without tightening it to facilitate bar assembly. mediate plate Bar fi tting cover - Insert the bar in the fitting cover and secure it with screws.
  • Page 9 - Tighten the anti-shearing protection cover to the bar fitting with UNI6954 Ø3.9x19 screws. UNI6954 Ø3.9x19x12 5.6 Bar balancing - Prior to bar balancing, select a suitable spring depending on the situation at hand. See table below. 400 mm PASSAGE CLEARANCE LAMP (max. 7.60 m) G02040 spring Ø...
  • Page 10 - Release the gearmotor and position the bar vertically, and then refasten the gearmotor. - Insert the UNI5739 M12X70 screw into the spring securing bracket and tighten the UNI5588 M12 nut to the screw (1-2). Tighten the screw to spring (2) and the tie rod to the part underneath (3-4).
  • Page 11 - Release the gearmotor and manually turn the spring to increase or decrease traction until the bar rests at 45°. - Tighten the blocking nut and refasten the gearmotor. Note: make sure the spring functions properly: - the spring is loose when the bar is in the vertical position (at rest) - the spring is tight when the bar is in the horizontal position (tense).
  • Page 12 5.8 End stop adjustment Power up the electric board, carry out a series of steps to make sure of the bar’s correct opening and closing positions, and then, if necessary, proceed to the adjustment of the dampers. Warning! For greater safety and better unit performance, the bar’s opening and closing operations should be carried out with the inspection hatch closed! - Execute the closing operation, adjust the open bar’s position by turning the free damper clockwise (to increase the bar’s...
  • Page 13 - After bar opening and closing adjustment, tighten the locking nuts under the dampers. - After making adjustments and settings from the control panel, put the container lid in place and secure with screws. -…place back the inspection door (1) and the upper dome (2). - Lock the door with the key.

  • Page 14: Maintenance

    5.9 Manual release of the barrier - Manually raise the bar - Insert the key into the lock and and block it again by turn it clockwise. WARNING! The release turning the key counter- procedure may constitute a clockwise. hazard for the user when, for whatever reason –...

  • Page 15: Demolition And Disposal

    UNI EN ISO 14001 standard to ensure environmental protection. Please continue our efforts to protect the environment—which CAME considers one of the cardinal elements in the development of its operational and market strategies—simply by observing brief recommendations as regards disposal: DISPOSAL OF PACKAGING –...
