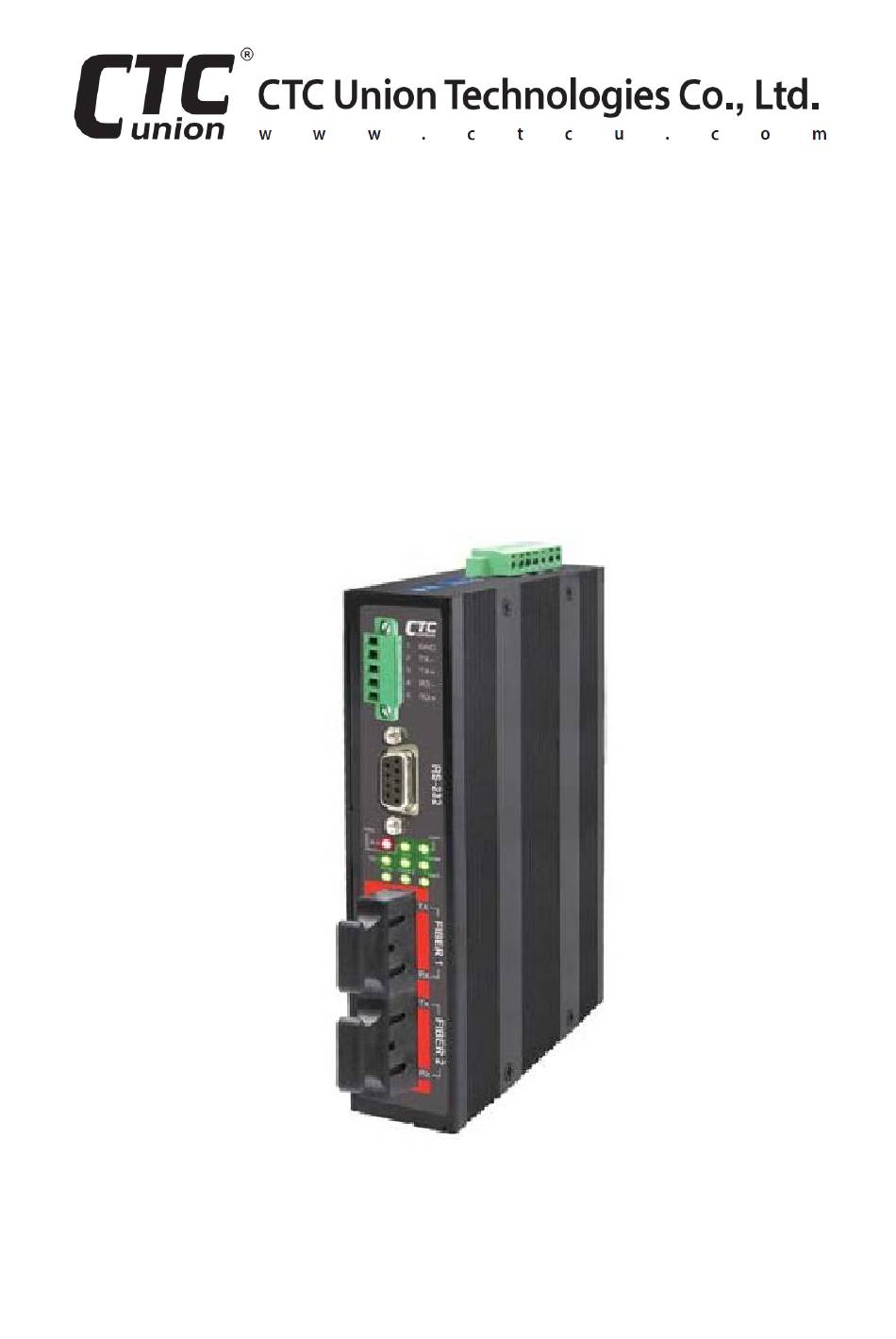

- Page 1 Quick Installation Guide IFC-FDC IFC-FDC-E RS-485 / RS-422 / RS-232 Daisy Chain Fiber Converter sales@ctcu.com...
- Page 2 8F, No. 60 Zhouzi St., Neihu, Taipei 114, Taiwan T +886-2-26591021 F +886-2-26590237 E sales@ctcu.com H www.ctcu.com 2012-2021 CTC Union Technologies Co., LTD. All trademarks are the property of their respective owners. Technical information in this document is subject to change without notice.
- Page 3 CTC Union Technologies makes no warranty, representation, or guarantee regarding the suitability of its products for any particular purpose, nor does CTC Union assume any liability arising out of the application or use of any product and specifically disclaims any and all liability, including without limitation any consequential or incidental damages.
-
Page 4: Table Of Contents
Table of Contents Introduction .................. 5 Package List ................. 5 Features ..................5 Specifications ................6 ....................6 PTICAL NTERFACE ..................6 LECTRICAL NTERFACE ......................6 OWER ...................... 6 ECHANICAL ....................7 NVIRONMENTAL ....................7 ERTIFICATIONS MTBF (MIL-HDBK-217) ..................7 Panels ................... -
Page 5: Introduction
RS- 232 (3 wire), RS-485 (2 wire, half duplex) or RS-422/485 (4 wire, full duplex). IFC-FDC(-E) media converters are also available in two operating temperature ranges, a standard -10°C~60°C commercial temperature range or an extended -40°C~75°C range. -
Page 6: Specifications
Specifications Optical Interface • Connector: SC or ST • Fiber Optical Rate: 50Mbps • Fiber Port: Two fiber ports • Fiber Type: MM (2km), SM (30km/60km), Bidi (20km) • Wavelength: MM 1310nm; SM 1310nm, 1550nm; Bidi Mode A TX 1310nm/RX 1550nm, Mode B TX 1550nm/RX 1330nm NOTE: When using WDM Bidi fiber type, connect one end of fiber cable to Mode A and the other end to Mode B or vice versa. -
Page 7: Environmental
Environmental • Operating Temperature: -10°C~60°C; -40°C~75°C (IFC-FDC-E) • Storage Temperature: -40°C~85°C • Humidity: 5%~95% (Non-condensing) Certifications • EMC: CE • EMI (Electromagnetic Interference): FCC Part 15 Subpart B Class A, CE • Immunity for Heavy Industrial Environment: EN61000-6-2 • Emission for Heavy Industrial Environment: EN61000-6-4 •... -
Page 8: Panels
Panels Figure 2. Top Panel Figure 1. Front Panel Description Fiber 1 & Fiber 2 interface RS-232 serial port connector RS-485/422 serial connection LED indicators Terminal block for power and alarm DIP switch Pull High & Pull Low rotary switch Grounding screw... -
Page 9: Fiber Port
Fiber Port IFC-FDC(-E) has two optical ports that use SC or ST optical connections for multimode, single mode or bidirectional fiber. The fiber connections require duplex cables and proper adherence to connections for RX and TX. When using WDM Bidi fiber type, you must connect one end of fiber cable to Mode A and the other end to Mode B or vice versa. -
Page 10: Dip Switch
DIP Switch IFC-FDC(-E) uses a 6-pole DIP switch for configuration. Each switch has the following functions. Status Function Description Disable No alarm when either power OFF * Power Alarm input loses power. Provide an alarm indication Enable Power when either power input loses Alarm power. -
Page 11: Terminal Block
Terminal Block Power There are input connectors for two power sources. Only one power source is required for normal operation. The second power source input may be provided for redundancy. When operating in a critical environment, connecting to two separate power sources will ensure non-stop operation even in the event that one power source fails. -
Page 12: Earth Grounding Connection
Earth Grounding Connection An earth ground connector is provided on the top panel with an earth ground sign next to it. Grounding the device can help to release leakage of electricity to the earth safely so as to reduce injuries from electromagnetic interference (EMI). -
Page 13: Led Indicators
LED Indicators Color Description PWR1/ Power is connected and active at the Green PWR2 PWR1/PWR2 input terminal connection. One of the listed faults occurs: -One power input loses power (DIP No.1 is -No fiber link (DIP No. 2 is ON) -Faults in ring topology (DIP No. -
Page 14: Pull High / Pull Low
The lines will be biased to known voltages and nodes will not interpret the noise from un-driven lines as actual data. IFC-FDC(-E) uses rotary switches to select from ten different bias resistor values. The factory default setting is at position 4 and provides bias resistors of 1KΩ... -
Page 15: Installation
Installation The converter comes with both wall mount and DIN rail hardware brackets. When installing the DIN rail bracket, be sure to correctly align the orientation pin. Figure 10. DIN Rail Figure 11. Wall Mount The converter with DIN Rail bracket has a steel spring in the upper rail of the bracket. -
Page 16: Application
Application Point to point connections Digital power meters Figure 14. Dual Fiber Auto Recovery Fiber Ring Figure 15. Fiber Ring for RS-232 Data Broadcasting RS422/RS-485 Figure 16. RS-422/485 Fiber Daisy Chain... - Page 17 Version Date Description 2020/8/28 Use new document format Revise spec. errors (kpbs→kbps)
