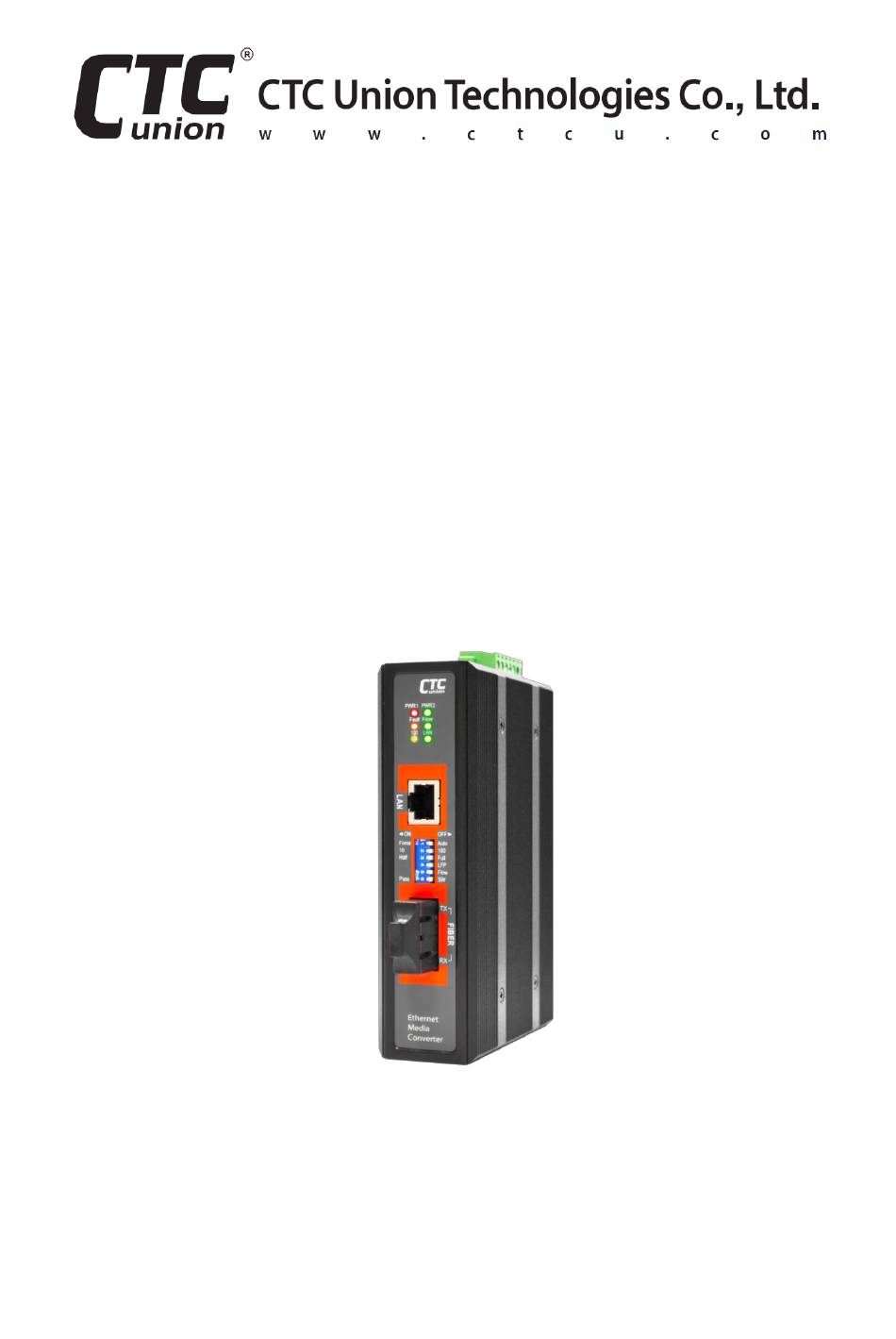

- Page 1 Quick Installation Guide IMC-100 IMC-100-E Industrial Grade Fast Ethernet Media Converter sales@ctcu.com...
- Page 2 8F, No. 60 Zhouzi St., Neihu, Taipei 114, Taiwan T +886-2-26591021 F +886-2-26590237 E sales@ctcu.com H www.ctcu.com 2020 CTC Union Technologies Co., LTD. All trademarks are the property of their respective owners. Technical information in this document is subject to change without notice.
- Page 3 CTC Union Technologies makes no warranty, representation, or guarantee regarding the suitability of its products for any particular purpose, nor does CTC Union assume any liability arising out of the application or use of any product and specifically disclaims any and all liability, including without limitation any consequential or incidental damages.
-
Page 4: Table Of Contents
Table of Contents Introduction .................. 5 Package List ................. 5 Features ..................5 Specifications ................6 .................... 6 THERNET NTERFACE ................6 PTICAL THERNET NTERFACE ......................6 OWER ...................... 6 ECHANICAL ....................7 NVIRONMENTAL ....................7 ERTIFICATIONS MTBF (MIL-HDBK-217) ..................7 Panels ................... -
Page 5: Introduction
Introduction IMC-100(-E) are Fast Ethernet media converters that support conversion between electrical 10/100Base-TX and optical 100Base-FX Ethernet. Housed in rugged DIN rail or wall mountable enclosures, these converters are designed for harsh environments, such as industrial networking and intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications. -
Page 6: Specifications
Specifications Ethernet Interface • Standards: IEEE802.3, 802.3u • Connector: RJ-45 (shielded) • Auto MDI/MDI-X • Speed: 10/100Base-TX (Auto/Forced by DIP) • Duplex: Full/Half (Auto/Forced by DIP) • Flow Control: 802.3x (enable by DIP) • Store & Forward Switch/Pass through converter (by DIP) •... -
Page 7: Environmental
Environmental • Operating Temperature: -10°C~60°C (IMC-100); -40°C~75°C (IMC-100- • Storage Temperature: -40°C~85°C • Humidity: 5%~95% (Non-condensing) Certifications • EMC: CE • EMI (Electromagnetic Interference): FCC Part 15 Subpart B Class A, CE • Railway Traffic: EN50121-4 • Immunity for Heavy Industrial Environment: EN61000-6-2 •... -
Page 8: Panels
Panels Figure 2. Top Panel Figure 1. Front Panel Description UTP RJ-45 port Fixed fiber port DIP switch Power, Fault, Fiber, 100, LAN LED indicators Terminal block Earth grounding connection Earth ground sign... -
Page 9: Lan & Fiber Ports
LAN & Fiber Ports Both Fiber and LAN interface are located on the front panel (See Figure 1). The Fiber interface of IMC-100-(E) supports 100Base-FX and has fixed optical transceiver options for connector types of ST or SC. The LAN connection supports 10/100Base-TX and uses a shielded RJ-45 connector which supports Auto MDI/MDI-X. -
Page 10: Recommended Power, Grounding & Alarm Wiring Scheme
Recommended Power, Grounding & Alarm Wiring Scheme DC Power Connection A removable terminal block on the top panel provides both power and alarm connections. Power can be provided through the dual inputs from separate sources (PWR1 & PWR2). One power supply is enough to power up the device. -
Page 11: Earth Ground Connection
Earth Ground Connection An earth ground connector is provided on the top panel with an earth ground sign next to it. Grounding the device can help to release leakage of electricity to the earth safely so as to reduce injuries from electromagnetic interference (EMI). -
Page 12: Alarm Relay Connection
Alarm Relay Connection The Alarm is one electrical relay that can be wired into an alarm circuit and is triggered in the event of either link loss for optical or electrical or both. From the common pin (COM), the relay can be connected as Normally Open (NO) or Normally Closed (NC). -
Page 13: Led Indicators
LED Indicators Color Status Definition Power is connected and active at the PWR1/PWR2 input terminal PWR1 Green connection. PWR2 Power is not connected. Lit if the fiber or TP have any fault condition. Fault No fiber or TP faults. Fiber port has optical link. Fiber Green Blinking... -
Page 14: Installation
Installation The converter can be mounted on the wall or installed in DIN rail depending on your installation needs. When installing the wall-mounting bracket (optional accessory) and DIN rail bracket, be sure to correctly align the orientation pin. Figure 8. DIN Rail Figure 9. - Page 15 Version Date Description 2020/9/25 Use new document format...
