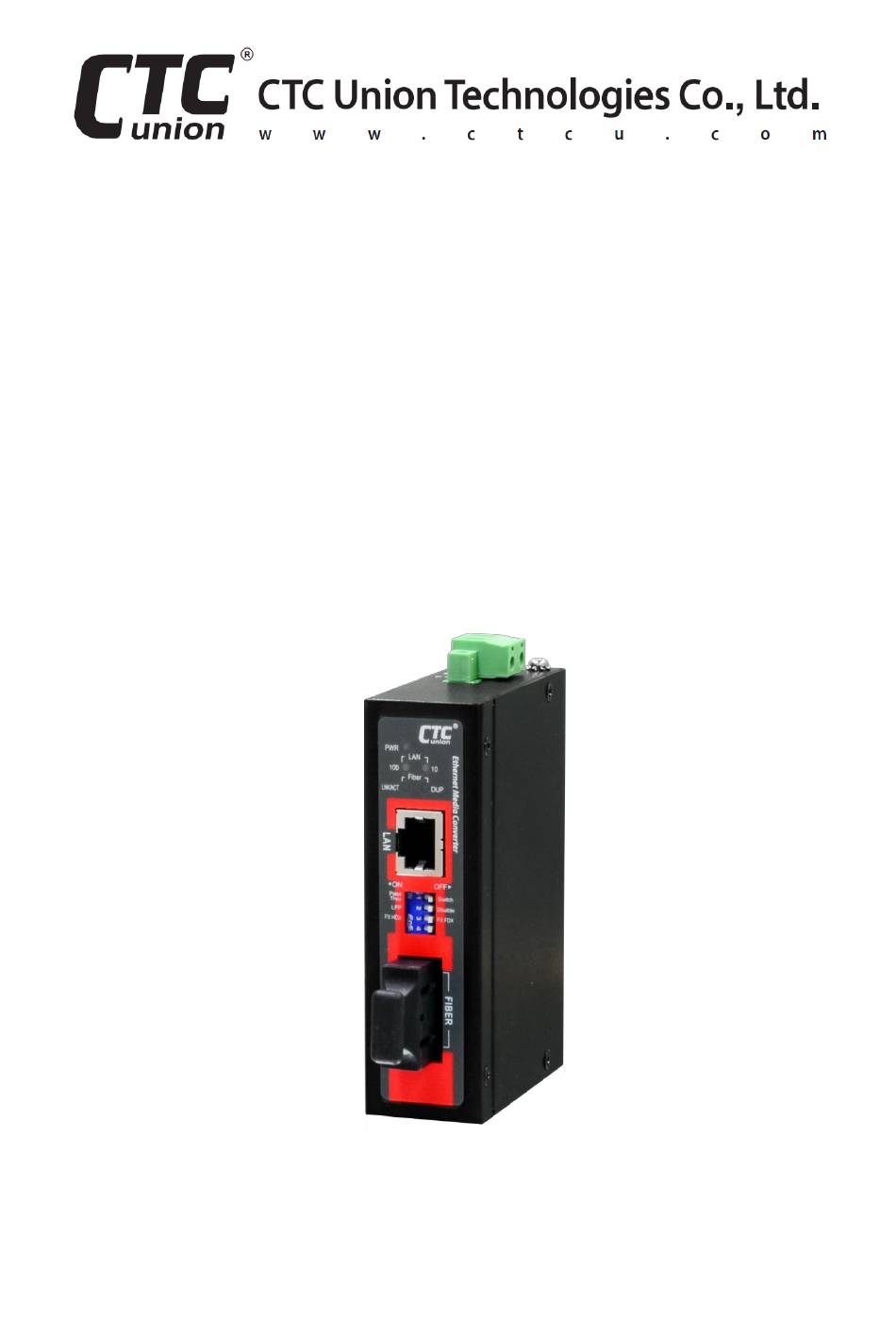

- Page 1 Quick Installation Guide IMC-100C IMC-100C-E Industrial 10/100Base-TX to 100Base-FX Fiber Converter (Compact) sales@ctcu.com...
- Page 2 8F, No. 60 Zhouzi St., Neihu, Taipei 114, Taiwan T +886-2-26591021 F +886-2-26590237 E sales@ctcu.com H www.ctcu.com 2020 CTC Union Technologies Co., LTD. All trademarks are the property of their respective owners. Technical information in this document is subject to change without notice.
- Page 3 CTC Union Technologies makes no warranty, representation, or guarantee regarding the suitability of its products for any particular purpose, nor does CTC Union assume any liability arising out of the application or use of any product and specifically disclaims any and all liability, including without limitation any consequential or incidental damages.
-
Page 4: Table Of Contents
Table of Contents Introduction .................. 5 Package List ................. 5 Features ..................5 Specifications ................6 .................... 6 THERNET NTERFACE ................6 PTICAL THERNET NTERFACE ......................6 OWER ...................... 6 ECHANICAL ....................7 NVIRONMENTAL ....................7 ERTIFICATIONS MTBF (MIL-HDBK-217) ..................7 Panels ................... -
Page 5: Introduction
Introduction IMC-100C-(E) are compact Fast Ethernet media converters that support conversion between electrical 10/100Base-TX and optical 100Base-FX Ethernet. Housed in rugged DIN rail or wall mountable enclosures, these converters are designed for harsh environments, such as industrial networking and intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications. -
Page 6: Specifications
Specifications Ethernet Interface • Standards: IEEE802.3, 802.3u • Connector: RJ-45 (shielded) • Auto MDI/MDI-X • Speed: 10/100Base-TX • Support 802.3x Flow Control • Store & Forward Switch/Pass Through Converter mode (by DIP) • 1024 MAC addresses in Switch mode • Packet Length: 2046 bytes (in Switch mode) •... -
Page 7: Environmental
Environmental • Operating Temperature: -10°C~60°C (IMC-100C); -40°C~75°C (IMC- 100C-E) • Storage Temperature: -40°C~85°C • Humidity: 5%~95% (Non-condensing) Certifications • EMC: CE • EMI (Electromagnetic Interference): FCC Part 15 Subpart B Class A, CE • Railway Traffic: EN50121-4 • Immunity for Heavy Industrial Environment: EN61000-6-2 •... -
Page 8: Panels
Panels Figure 1. Front Panel Figure 2. Top Panel Description Power terminal block Earth ground connector LED indicators LAN interface Function DIP switch Fiber interface Earth ground sign... -
Page 9: Lan & Fiber Ports
LAN & Fiber Ports Both Fiber and LAN interface are located on the front panel (See Figure 1). The Fiber interface of IMC-100C-(E) supports 100Base-FX and has fixed optical transceiver options for connector types of ST or SC. The LAN connection supports 10/100Base-TX and uses a shielded RJ-45 connector which supports Auto MDI/MDI-X. -
Page 10: Earth Ground Connection
3. Use a screwdriver to fasten the grounding screw. DC Power Connection IMC-100C-(E) is powered up by an external power supply. On the top panel, a removable 2-pin terminal block (See Figure 2) is provided for DC power connection. To connect to the power supply, insert V+ and V- wire into power contacts. -
Page 11: Led Indicators
LED Indicators Color Status Description Lit if power is connected and active. Green Power is not connected. The connected LAN speed is 100M. Blinking when there is Ethernet Green Blinking traffic. The LAN link is down or LAN speed is 10M. The connected LAN speed is 10M. -
Page 12: Installation
Installation The IMC-100C-(E) can be installed in DIN rail or mounted in wall (optional). Hardware brackets for DIN rail installation are provided with the device. However, wall-mounting brackets are not provided. If you need wall-mounting installation kit, please contact your sales representative. -
Page 13: Application
Application Figure 7. IMC-100C-(E) Application... - Page 14 Version Date Description 2020/6/24 Use new document format Revise spec.
