CTC Union IMC-1000M Quick Installation Manual
Industrial grade gigabit ethernet managed media converters
Hide thumbs
Also See for IMC-1000M:
- User manual (44 pages) ,
- Quick installation manual (2 pages) ,
- Quick installation manual (2 pages)
Subscribe to Our Youtube Channel
Related Manuals for CTC Union IMC-1000M
Summary of Contents for CTC Union IMC-1000M

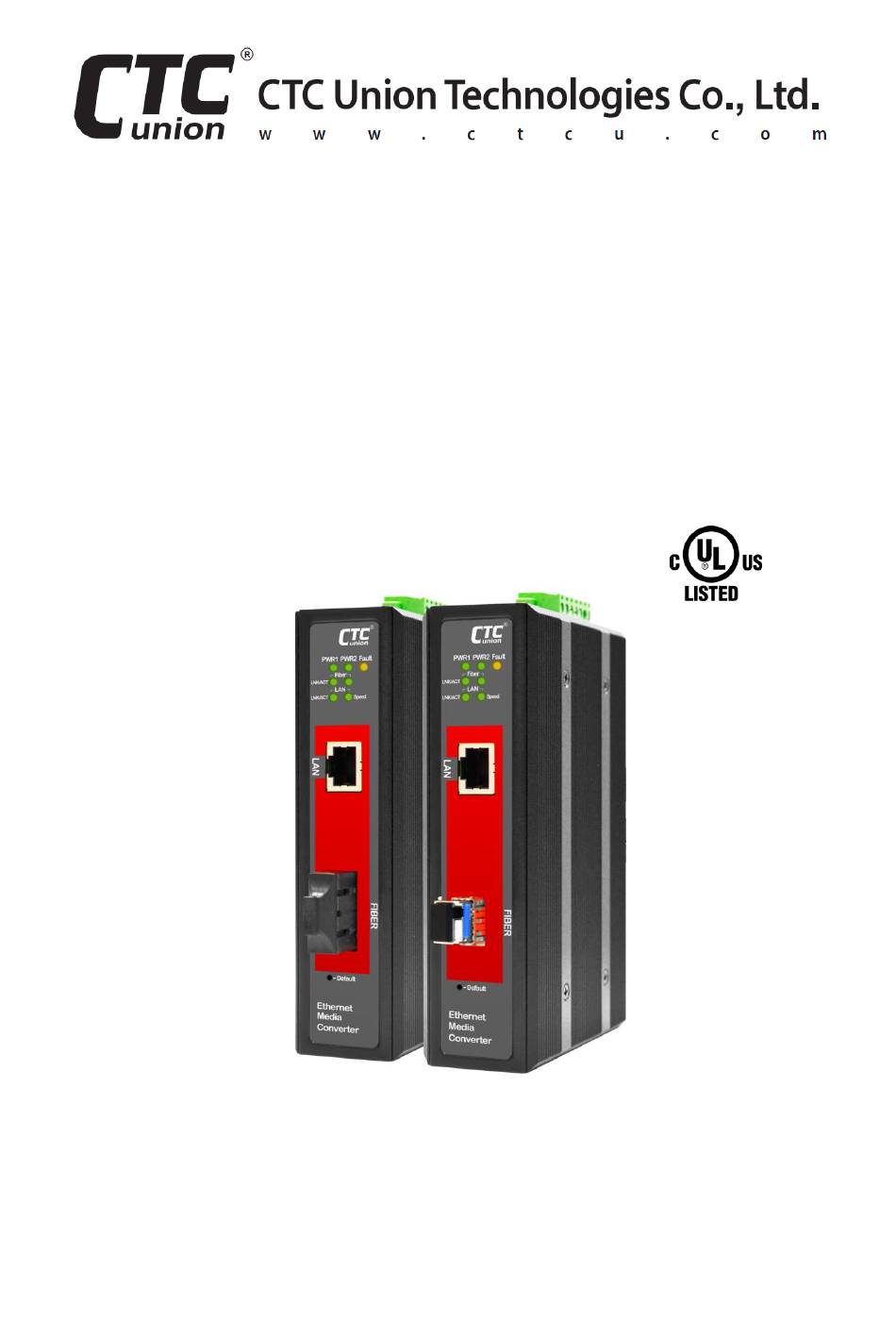

- Page 1 Quick Installation Guide IMC-1000M, IMC-1000MS IMC-1000M-E, IMC-1000MS-E Industrial Grade Gigabit Ethernet Managed Media Converters sales@ctcu.com...
- Page 2 8F, No. 60 Zhouzi St., Neihu, Taipei 114, Taiwan T +886-2-26591021 F +886-2-26590237 E sales@ctcu.com H www.ctcu.com 2020 CTC Union Technologies Co., LTD. All trademarks are the property of their respective owners. Technical information in this document is subject to change without notice.
- Page 3 CTC Union Technologies makes no warranty, representation, or guarantee regarding the suitability of its products for any particular purpose, nor does CTC Union assume any liability arising out of the application or use of any product and specifically disclaims any and all liability, including without limitation any consequential or incidental damages.
-
Page 4: Table Of Contents
Table of Contents Introduction .................. 5 Package List ................. 5 Features ..................5 Access to Web-Based Management Interface ......6 Specifications ................7 .................... 7 THERNET NTERFACE ................7 PTICAL THERNET NTERFACE ......................7 OWER ...................... 7 ECHANICAL ....................8 NVIRONMENTAL .................... -
Page 5: Introduction
• Protective cap for SFP slot Features • Redundant dual DC inputs 12/24/48VDC • IP30 rugged metal housing • Dual rate (100/1000M) optical support • Wide temperature range: -20°C~75°C (IMC-1000M-E & IMC-1000MS-E) • Industrial grade EMS, EMI, UL60950-1, EN 50121-4, EN61000-6-2, EN61000-6-4... -
Page 6: Access To Web-Based Management Interface
Access to Web-Based Management Interface To enter the web-based management interface for the first time or after returning the device back to factory defaults, input the default IP 10.1.1.1 address “ ” in your web browser. Then, a standard login prompt will appear depending on the type of browser used. -
Page 7: Specifications
• IEEE802.1Q VLAN tagging Optical Ethernet Interface • Standards: IEEE 802.3u, 802.3z • Speed: 100/1000M • Connector Type: SC or ST connector－IMC-1000M(-E); SFP slot－IMC- 1000MS(-E) • Number of Optical Interface: 1 • Multimode (500m) 50/125um, 62.5/125um • Single mode (20km or 40km) 9/125um •... -
Page 8: Environmental
Environmental • Operating Temperature: -10°C~60°C － IMC-1000M, IMC-1000M; - 20°C~75°C － IMC-1000M-E, IMC-1000MS-E • Storage Temperature: -40°C~85°C • Humidity: 5%~95% (Non-condensing) Certifications • EMC: CE • EMI (Electromagnetic Interference): FCC Part 15 Subpart B Class A, CE • Railway Traffic: EN50121-4 •... -
Page 9: Panels
Panels Figure 2. Top Panel Figure 1. Front Panel Description UTP RJ-45 ports Fixed fiber SFP fiber slot Power, Fault, Fiber Link/ACT, LAN Link/ACT & LAN Speed LED indicators Default pushbutton Terminal block Earth grounding connection... -
Page 10: Recommended Power, Alarm, Grounding Wiring Scheme
Recommended Power, Alarm, Grounding Wiring Scheme DC Power Connection A removable terminal block on the top panel provides both power and alarm connections. Power can be provided through the dual inputs from separate sources (PWR1 & PWR2). One power supply is enough to power up the device. -
Page 11: Alarm Relay Connection
Alarm Relay Connection The Alarm is one electrical relay that can be wired into an alarm circuit and is triggered in the event of either link loss for optical or electrical or both. From the common pin (COM), the relay can be connected as Normally Open (NO) or Normally Closed (NC). -
Page 12: Led Indicators
LED Indicators Color Status Definition Power is connected and active at the PWR1/PWR2 input terminal PWR1/ Green connection. PWR2 Power is not connected. Fiber link loss, TP link loss or either one power loss, depending on the alarm programming Fault Amber management. -
Page 13: Installation
Installation The converter can be mounted on the wall or installed in DIN rail depending on your installation needs. When installing the wall-mounting bracket (optional accessory) and DIN rail bracket, be sure to correctly align the orientation pin. Figure 8. DIN Rail Figure 9. - Page 14 Version Date Description 2020/9/25 Use new document format Revise spec.
