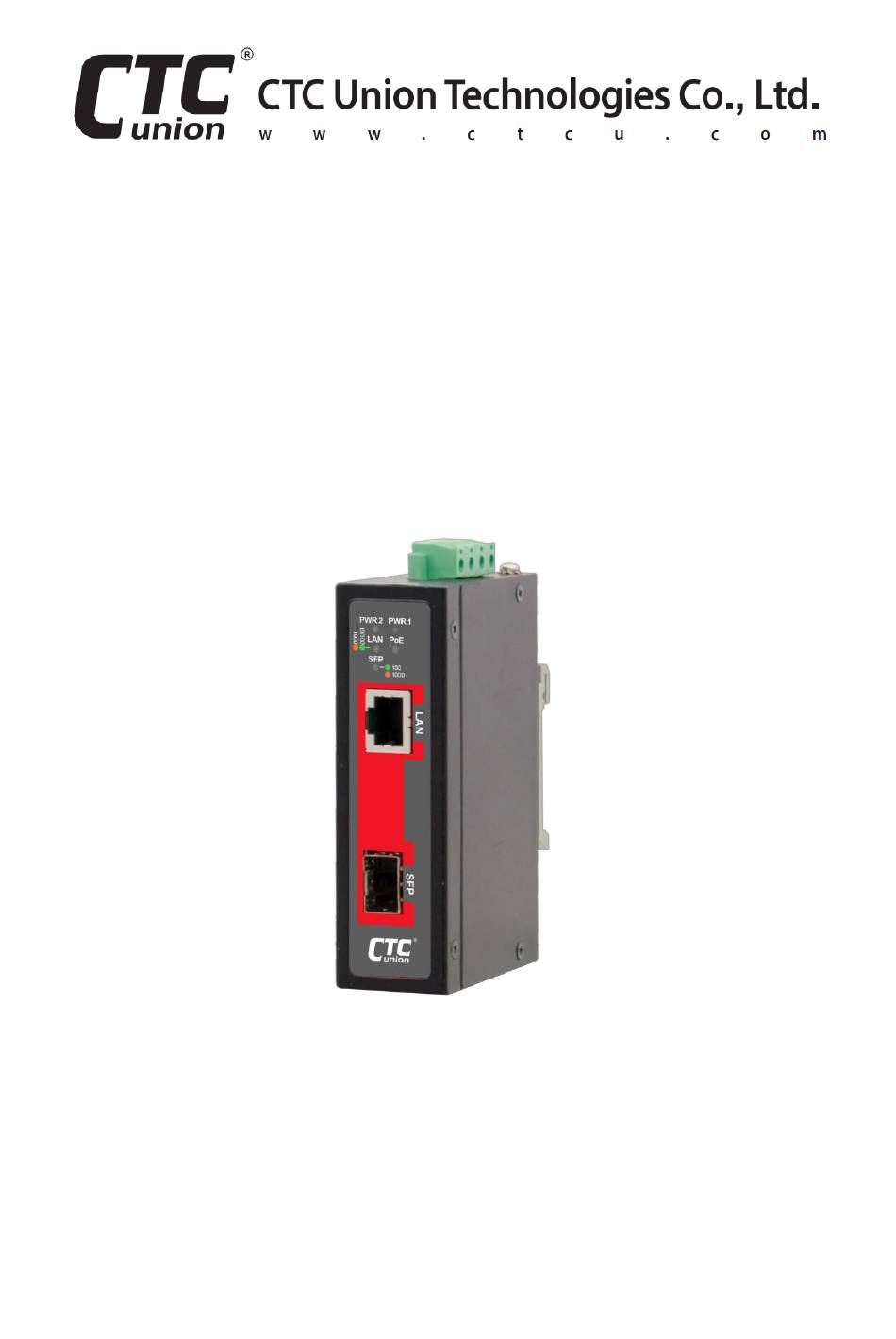

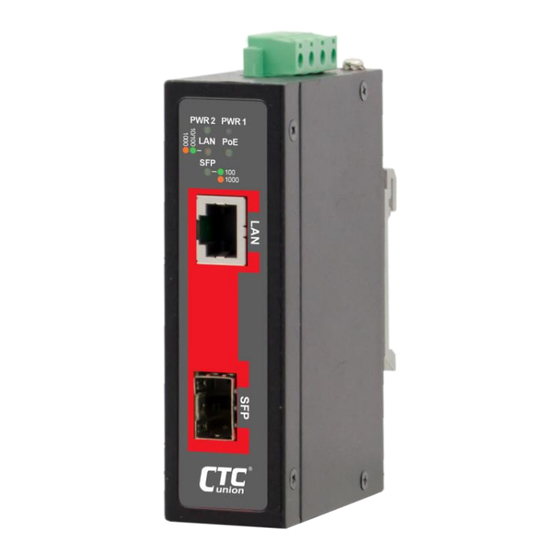

- Page 1 Quick Installation Guide IMC-1000WS-PBE Industrial Grade Web Managed PoE Media Converter sales@ctcu.com...
- Page 2 8F, No. 60 Zhouzi St., Neihu, Taipei 114, Taiwan T +886-2-26591021 F +886-2-26590237 E sales@ctcu.com H www.ctcu.com 2023 CTC Union Technologies Co., LTD. All trademarks are the property of their respective owners. Technical information in this document is subject to change without notice.
- Page 3 CTC Union Technologies makes no warranty, representation, or guarantee regarding the suitability of its products for any particular purpose, nor does CTC Union assume any liability arising out of the application or use of any product and specifically disclaims any and all liability, including without limitation any consequential or incidental damages.
-
Page 4: Table Of Contents
Table of Contents Introduction .................. 5 Package List ................. 5 Features ..................5 Access to Web-Based Management Interface ......6 Specifications ................7 .................... 7 THERNET NTERFACE ....................7 PTICAL NTERFACE ..................7 OWER OVER THERNET ......................7 OWER ...................... 8 ECHANICAL .................... -
Page 5: Introduction
The updated IEEE 802.3at-2009 PoE standard also known as PoE+ or PoE plus, provides up to 30W of power. It is worth mentioning that IMC-1000WS-PBE can provide up to 90W power through the use of all 4 pairs of category 5e (or above) cable. -
Page 6: Access To Web-Based Management Interface
Access to Web-Based Management Interface To enter the web-based management interface for the first time or after returning the device back to factory defaults, input the default IP 10.1.1.1 address “ ” in your favorite web browser. Then, a standard login prompt will appear depending on the type of browser used. -
Page 7: Specifications
Specifications Ethernet Interface Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab Connector: RJ-45 (shielded) Auto MDI/MDI-X Speed: 10/100/1000Mbps Cable: Category 5e or above twisted pair cable Supports 802.3x Flow Control Operates in Store and Forward switch or Pass through mode ... -
Page 8: Mechanical
Mechanical Fanless design Water & Dust Proof: IP30 protection Dimensions: 70 mm (D) x 30 mm (W) x 103 mm (H) Mounting: DIN-Rail mounting, Wall mounting (Optional) Weight: 245g Environmental Operating Temperature: -20°C~70°C Storage Temperature: -40°C~85°C ... -
Page 9: Panels
Panels Figure 2. Top Panel Figure 1. Front Panel Description Power terminal block Earth ground connector LED indicators LAN interface Optical fiber interface (SFP slot) Earth ground sign Reset to default push-button... -
Page 10: Lan & Fiber Port
LAN & Fiber Port IMC-1000WS-PBE devices have one electrical LAN port and one SFP-based fiber port on the front panel. The LAN port that utilizes shielded RJ-45 connector supports 10/100/1000M and PoE function; while the fiber port supports dual rate 100/1000M. -
Page 11: Recommended Power & Ground Wiring Scheme
Recommended Power & Ground Wiring Scheme Power Connection IMC-1000WS-PBE media converters are powered up by an external power supply. On the top panel, a removable 4-pin terminal block is provided for two pairs (PWR1 & PWR2) of DC power connection. -
Page 12: Led Indicators
LED Indicators Color Status Description Lit if power is connected and active. Green Power is not connected. The connected LAN speed is 1000M. Blinking Blinking when there is Ethernet traffic. Amber The LAN link is down or LAN speed is 10/100M. -
Page 13: Installation
Installation IMC-1000WS-PBE can be installed in DIN rail or mounted on wall (optional). Hardware brackets for DIN rail installation are provided with the device. However, wall-mounting brackets are not provided. If you need wall-mounting installation kit, please contact your sales representative. - Page 14 Version Date Description 2023/2/23 Preliminary version...
