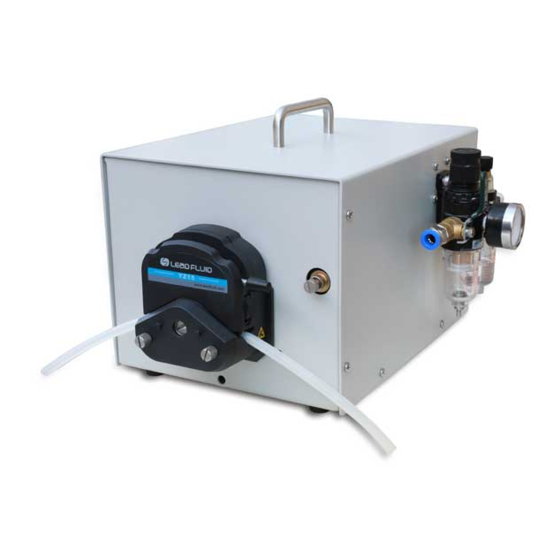

- Page 1 GOLANDER PUMP FG600S/601S-Q Pneumatic Motor Peristaltic Pump Operation Manual info@golanderpump.com http://golanderpump.com 1-678-587-8806...
-
Page 2: Table Of Contents
5.4 Operation ................... 5 6 Maintance and Service ................. 6 6.1 Regular Maintenance ..............6 7 Dimensions (mm) ................. 7 8 Specifications ..................7 9 Suitable Pump Heads and Tubing ............8 9.1 FG600S-Q .................. 8 9.2 FG601S-Q .................. 9... -
Page 3: Safety Cautions
FG600S/601S-Q Manual 1 Safety Cautions Please read this manual carefully before using the product. It may cause injury if you do not follow the manual. The air source must be compressed dry gas, and the maximum pressure should not exceed 90Psig (6.2bar/620KPa). -
Page 4: Functions And Features
FG600S/601S-Q Manual Flow rate Drive Speed Pump head Tubing per channel Type (ml/min) 13#, 14#, YZ15, 16#, 19#, 9-1700 2xYZ15 25#, 17# 13#, 14#, YT15, 16#, 19#, 9-2300 FG600S- 2xYT15 25#, 17#, 150-600rpm YZ25, 15#, 24# 250-1700 2xYZ25 YT25, 15#, 24#,... -
Page 5: Components And Connectors
FG600S/601S-Q Manual 4 Components and Connectors Pressure adjusting and filtering Throttle valve Pump head mounting plate Pressure meter Pressure reducer Switch Oil mist Air filter... -
Page 6: Operation Instructions
FG600S/601S-Q Manual Oil filler Viewing flow rate window Adjust flow rate Figure 1. Components and connectors Pump head mounting plate: The pump head mounting plate is different according to different pump head. Throttle valve: To adjust the airflow and change the speed. Rotate clockwise to lower the speed;... -
Page 7: Installation
FG600S/601S-Q Manual 5.2 Installation Air source requirement Standard air pressure: 0.63Mpa • Airflow > 300L/min • Air hose: Exclusive air hose Φ10mm • Please ensure the input pressure and flow of the pneumatic motor (air motor consumption), otherwise the drive will not work properly. -
Page 8: Maintance And Service
FG600S/601S-Q Manual Rotate the throttle clockwise to run the pump. Adjust the speed • according to required flow. The top speed of this drive is 600 rpm. To adjust oil drop speed Rotate the oil knob clockwise to reduce the oil drop speed. Rotate oil knob counterclockwise to increase the oil drop speed. -
Page 9: Dimensions (Mm)
FG600S/601S-Q Manual without load. Otherwise, the lifetime of pneumatic motor will be shortened, or damage will occur. • There is no need for special maintenance for the peristaltic pump head. Attention should be paid to the wear of hose in the pump head when used. -
Page 10: Suitable Pump Heads And Tubing
FG600S/601S-Q Manual FG601S-Q YZ35: 2000-11000 ml/min Flow range Speed 150-600 rpm Adjustment Manual Working Environment temperature-10-60°C environment Relative humidity<80% Dimensions 309*316*237mm Drive weight 11kg IP grade IP31 9 Suitable Pump Heads and Tubing Liquid: water Condition: Standard atmosphere temperature and pressure, length of input or output is 1 meter. -
Page 11: Fg601S-Q
FG600S/601S-Q Manual YT15, 4 rollers (ml/min) Tubing Speed (rpm) 1342 1000 1700 2300 YT25, 4 rollers (ml/min) Tubing Speed (rpm) 1342 1692 1000 1700 2300 2900 9.2 FG601S-Q KZ25/KZ25-L, 3 rollers (ml/min) Tubing Speed (rpm) 1225 1500 1517 2858 3500...
