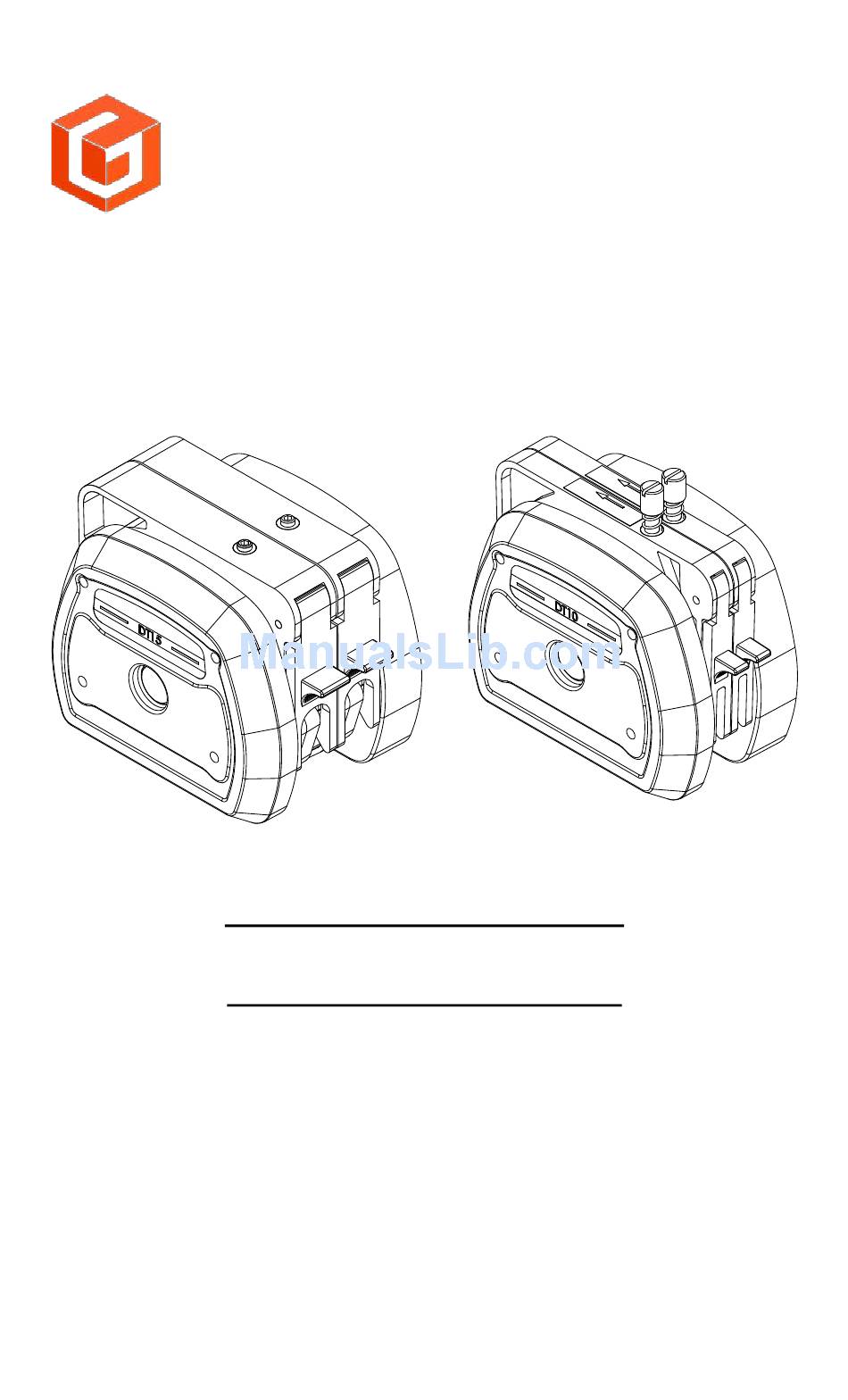

- Page 1 GOLANDER PUMP DT Pump Head User’s Guide info@golanderpump.com http://golanderpump.com 1-678-587-8806...
-
Page 2: Safety Cautions
DT Pump Head User’s Guide 1 Safety Cautions Warning: Please read through this user’s guide carefully before operating the pump head. Danger: Remove the power from the pump before mounting or unmounting pump head to the drive. Danger: Remove the power from pump before attempting any maintenance or any cleaning operation is started. -
Page 3: Specifications

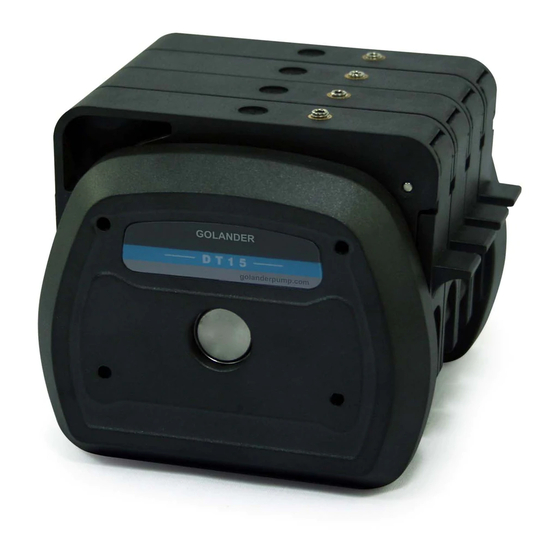

DT15 (Rollers: 4, Roller Material： Stainless Steel, Cartridge Material: PPS) No. of Weight Model Tubing Flow Channels Speed (kg) Rate 0.62 DT15-14 19# 16# 1600 DT15-24 25# 17# mL/min 1.44 DT15-44 DT10 (Rollers: 8, Roller Material： Stainless Steel, Cartridge Material: PPS) No. of Model... -
Page 4: Setup And Operation
DT Pump Head User’s Guide 4 Setup and Operation 4.1 DT Pump Head Figure 1. DT15 Pump Head and DT10 Pump Head 1 – Front panel 2 – Cartridge for tubing 3 – Set screw for occlusion adjustment 4 – Back panel 5 –... - Page 5 DT Pump Head User’s Guide 4.2 Pump Head Installation 4-M4 Screws Shaft Tang Cartridge Snap-fit Hook Figure 2. Pump Head Installation To install the pump head, insert the shaft tang of the pump head into the slot in the shaft on the drive. Then align the pump onto the two alignment pins on the drive.
-
Page 6: Tube Loading
DT Pump Head User’s Guide head to the drive. 4.3 Tube Loading 1) Be sure the pump drive is turned off. 2) Remove the cartridge from pump head. 3) For DT10 only: Tubing for DT10 need two stops installed to fix it on the pup head. - Page 7 DT Pump Head User’s Guide Figure 5. Fix the Cartridge For multiple channel application, Please make sure the tubing length in the cartridge and the stress on the tubing are almost the same, to minimize the flow rate difference between the channels. Note: 1) For multiple channels, the flow rate will not be identical.
-
Page 8: Warranty
Length L (mm) DT10-18 57.5 DT10-28 DT10 DT10-48 87.5 DT10-88 DT15-14 DT15 DT15-24 87.5 DT15-44 6 Warranty The product comes with one-year labor and parts warranty. The limited warranty does not cover any damage that is caused by improper usage and handling. - Page 9 DT Pump Head User’s Guide pressure. The tubing length is 2 meters, 1m for inlet and 1 for outlet. Table 1. DT15 Flow Rate (mL/min) Tubing Size Speed (rpm) 1060 1600 Table 2. DT10 Flow Rate (mL/min) Tubing Size (mm) Speed (rpm) 0.13...
