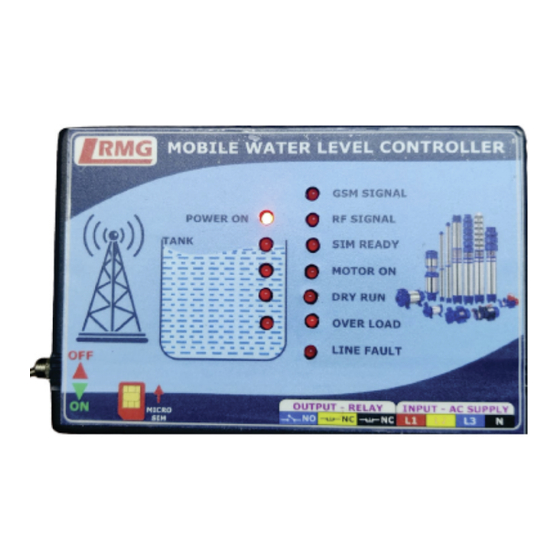

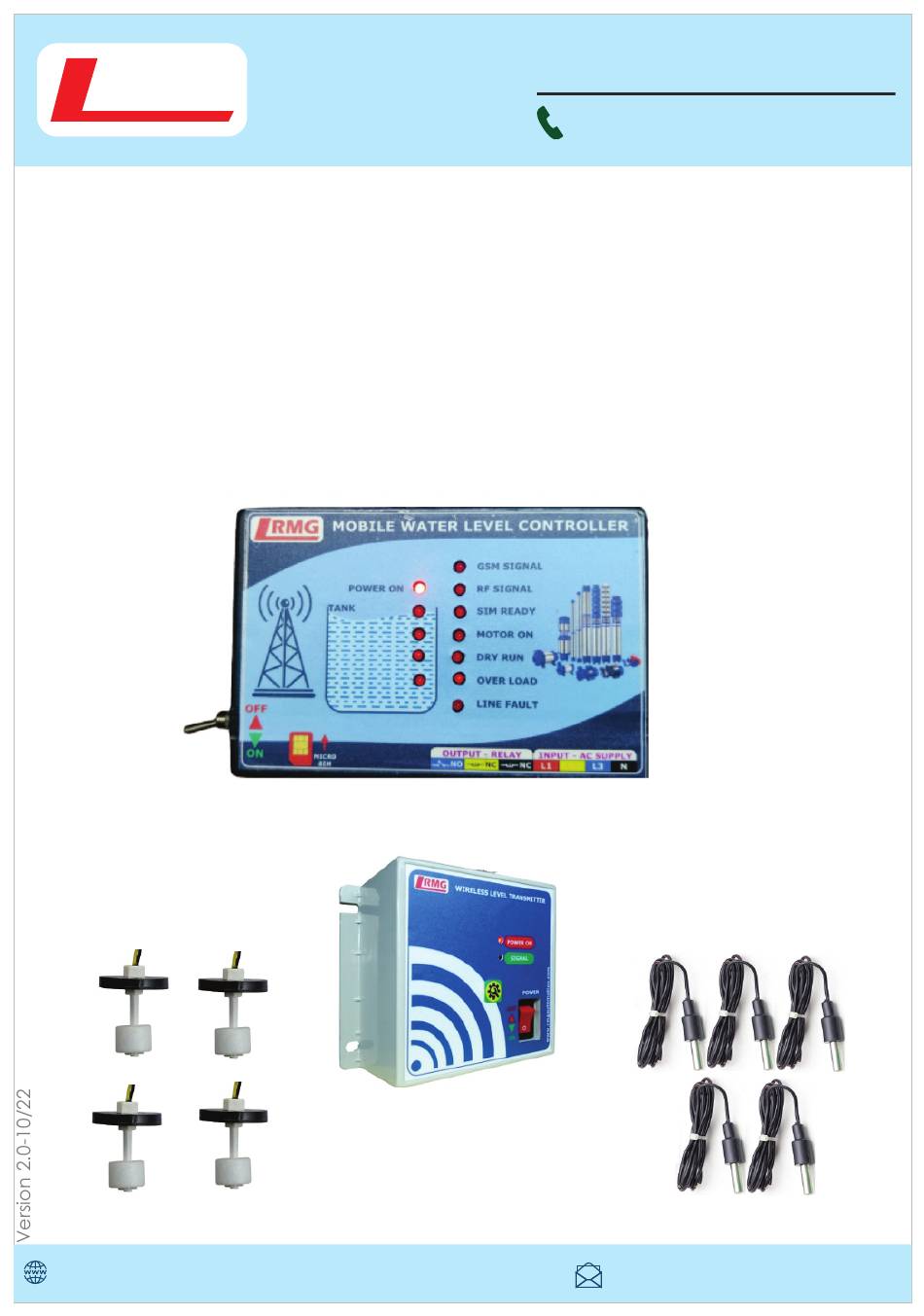

- Page 1 RMG AUTOMATION +91 9940594413 GSM+RF Wireless Water Tank Level Monitoring System Model : GSM_RF_WDTWLI www.rmgautomation.com User Manual http://rmgautomation.com rmgworld@hotmail.com...
-
Page 2: Tools Required
1. INTRODUCTION RMG automation introduces a new variant of Wireless Water Level Indicator, where multiple tank levels can be monitored in a single receiver module. GSM features also incorporated in it. It uses RF module and covers distance up to 700-1000 meters in line of sight. -
Page 3: Installation
4. INSTALLATION PROCEDURE Caution: Switch off the main power while doing the Power Connection steps. Step 1: Insert your GSM SIM in the SIM slot given as shown in the GSM indicator. The GSM SIM that is used must support 2G and have a SMS plan. Step 2: Wall mount the GSM indicator by using the screws in the given slots on its sides near your motor switch/starter location. -
Page 4: Operating Procedure
5. OPERATING PROCEDURE Switch ON the controller using on/off switch of the controller. Power ON LED lights up. Ÿ GSM Signal LED blinks every one second trying to get connected to the Ÿ network. Further, it blinks every 3 seconds ensuring that the GSM unit has been connected to the network. -
Page 5: List Of Commands
Pairing Procedure: The units are generally paired and dispatched. In case of any trouble at the time of installation, users can pair the units once again. Send SMS command PM1 to controller unit. Now, all the tank level LEDs will Ÿ... -
Page 6: Trouble Shooting Methods
Pairing mode enable Tank level notication disable Tank level notication ENable Alarm for 10 seconds. ( 1 for 10 seconds, 2 for 20 seconds so on) 6. TROUBLE SHOOTING METHODS S.No. Error Solutions RF Signal LED a. Check whether any obstrucles are there in glows continuously between transmitter and receiver units like large trees, buildings etc.(Repeaters can be...
