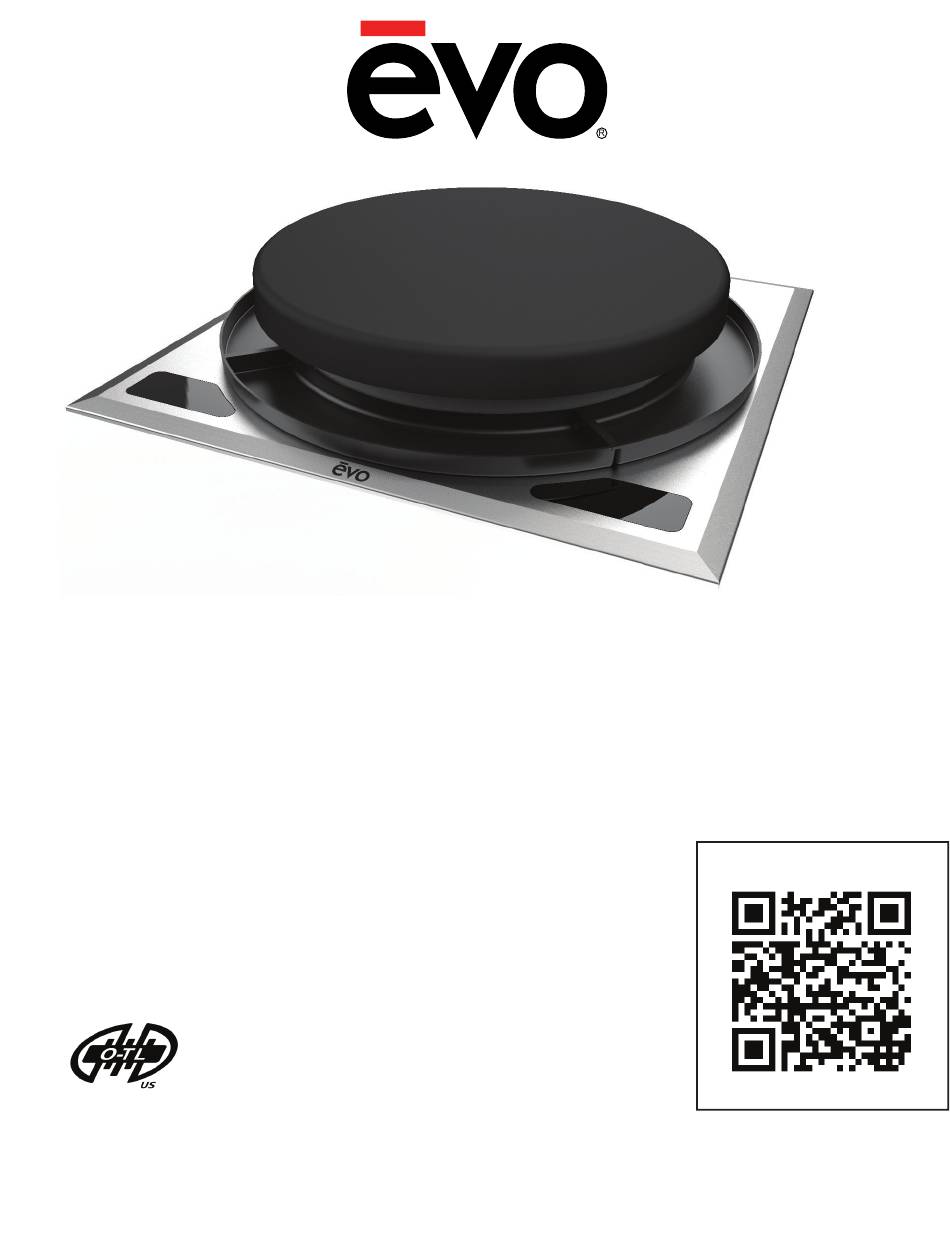

Evo Centre 23E Operator's Manual Installation, Operation, And Maintenance

Electric residential cooktop

Advertisement

Quick Links

Evo Centre 23E Electric Residential Cooktop
Operator's Manual
Installation, Operation, and Maintenance
Pour obtenir un manuel en français, veuillez appeler Evo America, LLC au 503-626-1802.
Cleaning Instructions
For a French Language Manual, please call Evo America, LLC at 503-626-1802.
For Outdoor Use
Portland
Tested &
Oregon USA
Listed By
evoamerica.com
Report # 0141EM009S
OMNI-Test Laboratories, Inc.
Certifi cation: "UL 1026 - Standard for Electric Household Cooking Appliances"
Model# 10-0123-OE
FINAL QR Code for Evo Cleaning.indd 1
11/19/2015 11:43:18 AM
Doc # 23OIRev1.5
October 8, 2024
Copyright © 2024
Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA
Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Centre 23E and is the answer not in the manual?

Questions and answers

Summary of Contents for Evo Centre 23E

  • Page 1 Evo Centre 23E Electric Residential Cooktop Operator’s Manual Installation, Operation, and Maintenance Pour obtenir un manuel en français, veuillez appeler Evo America, LLC au 503-626-1802. Cleaning Instructions For a French Language Manual, please call Evo America, LLC at 503-626-1802. For Outdoor Use Portland Tested &...
  • Page 2: Notes

    Save these instructions for future reference. Complete Now For Future Reference Serial # _____________________________ Date of Purchase ______________________ Place of Purchase _____________________ Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...
  • Page 3: Table Of Contents

    Basic Features -------------------------------------------15 Temperature Zones ------------------------------------16 Quick Start User Guide -------------------------------17 - 18 Cooking Surface Maintenance ---------------------19 Electrical Schematic -----------------------------------20 - 21 Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...
  • Page 4: Warnings

    DURING THE FIRST FEW HOURS OF OPERATION, IT IS NORMAL FOR OILS AND INSULATING MATERIAL USED IN THE MANUFACTURING PROCESS TO BECOME WARM AND GIVE OFF AN ODOR. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...
  • Page 5: What Is Not Covered By This Warranty

    One Year from the original date of purchase from Evo, Inc. This warranty is for the benefi t of the original use purchaser and is non- transferable.
  • Page 6: Uncrating

    USE CAUTION - Do not use any sharp objects to remove the protec ve plas c fi lm. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...
  • Page 7: Overall Dimensions

    4 5/8” (117 mm) 27 1/4” (692 mm) Measured from outside edge of louvers 27 1/4” 29” (692 mm) (737 mm) Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...
  • Page 8: Key Elements

    Interlocking Drip Pan Simply overlap each end to form a complete circle under the cooking surface. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...
  • Page 9: Integral Drip Pan

    20” Ø (508mm) Integral Drip Pan Integral Stainless Steel Drip Pan For light-duty cooking tasks that require minimul clean up. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...
  • Page 10: External Clearances

    The Evo Centre may be installed to back, side, and front combustible surfaces with a zero-clearance (0” or 0 mm) tolerance to the outside of the stainless steel chassis. The top of the cooking surface requires 32” (813mm) to combustible surfaces. The underside of the unit requires 3”...
  • Page 11: Clearances To Combustible Surfaces

    The Evo Centric may be installed to back, side, and front combustible surfaces with a zero-clearance (0” or 0 mm) tolerance to the outside of the stainless steel chassis. The top of the cooking surface requires 32” (813mm) to combustible surfaces. The underside of the unit requires 3”...
  • Page 12: Countertop Installation

    Installing Centre 23E To Counter Countertop Installation The Centre 23E may be recessed into a cabinet constructed from any suitable material such as medium density fi berboard (MDF), plywood, particleboard with melamine or stainless steel, with countertops made from natural stone, manufactured solid surfaces, butcher block, concrete, laminate or stainless steel.
  • Page 13: Sealing To Countertop

    Sealing To Countertop The Centre 23E is secured to the countertop cutout by applying a bead of black or clear silicone around the lower edge of the chassis before fi tting it into the cutout. To do this, place the unit in the cutout, trace the outer perimeter with a pencil, remove the chassis, and apply a consistent bead of silicone just inside the marked line.
  • Page 14: Connect Electrical Cord

    DO NOT CONNECT TO DIRECT CURRENT (DC). INSTALLATION SHOULD CONFORM TO THE NATIONAL ELECTRIC CODE AND ALL LOCAL ELECTRIC RULES AND REGULATIONS. THE RECEPTACLE REQUIRED FOR THE Evo Centre 23E IS A NEMA 5-20 SHOWN IN THE ILLUSTRATION AT THE LEFT. THE NEMA 5-20 IS A 20AMP RATED RECEPTACLE. THE MAXIMUM AMPERAGE DRAW OF THE CENTRE 23E UNIT IS APPROXIMATELY 16 AMP.
  • Page 15: Basic Features

    HOT SURFACE will be displayed with the following characters as a safety feature to indicate when the cooking surface temperature is in excess of 125°F (38°C). Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...
  • Page 16: Temperature Zones

    THIS COULD POTENTIALLY DAMAGE THE NON-STICK COATING. You can use the Centre cooking surface similar to the burners on a stove top. Adjust Evo’s heater elements to control the temperatures of the cooking surface “heat zones.” Evo’s circular grill top is divided into two distinct zones. The center control panel knob controls the “inner heat zone,”...
  • Page 17: Quick Start Instruction Guide

    (°F or °C) will blink intermittently until the target that the surface is too hot to touch. temperature is reached Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...
  • Page 18: Setup And Operation

    COOKING PERFORMANCE The Centre 23E is designed for light to medium-duty cooking, capable of handling a variety of foods such as pancakes, eggs, bacon, fl at breads, fresh proteins like fi sh fi llets, boneless chicken, and hamburgers, and sautéed vegetables.
  • Page 19: Cooking Surface Maintenance

    Cooking Surface Maintenance The Evo Centre 23E cooking surface is coated with a unique sol-gel non-stick coating that merges the benefi ts of ceramic and polymer, providing a durable, high-performance surface. This coating ensures eff ortless food release and easy cleaning while being free from harmful chemicals like PFOA and PTFE. Designed for long-term use, it off...
  • Page 20: Electrical Schematic

    [2/T1] [-4/A2] [1/L1] [+3/A1] [2/T1] [-4/A2] [1/L1] [+3/A1] Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...
  • Page 21 Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...
