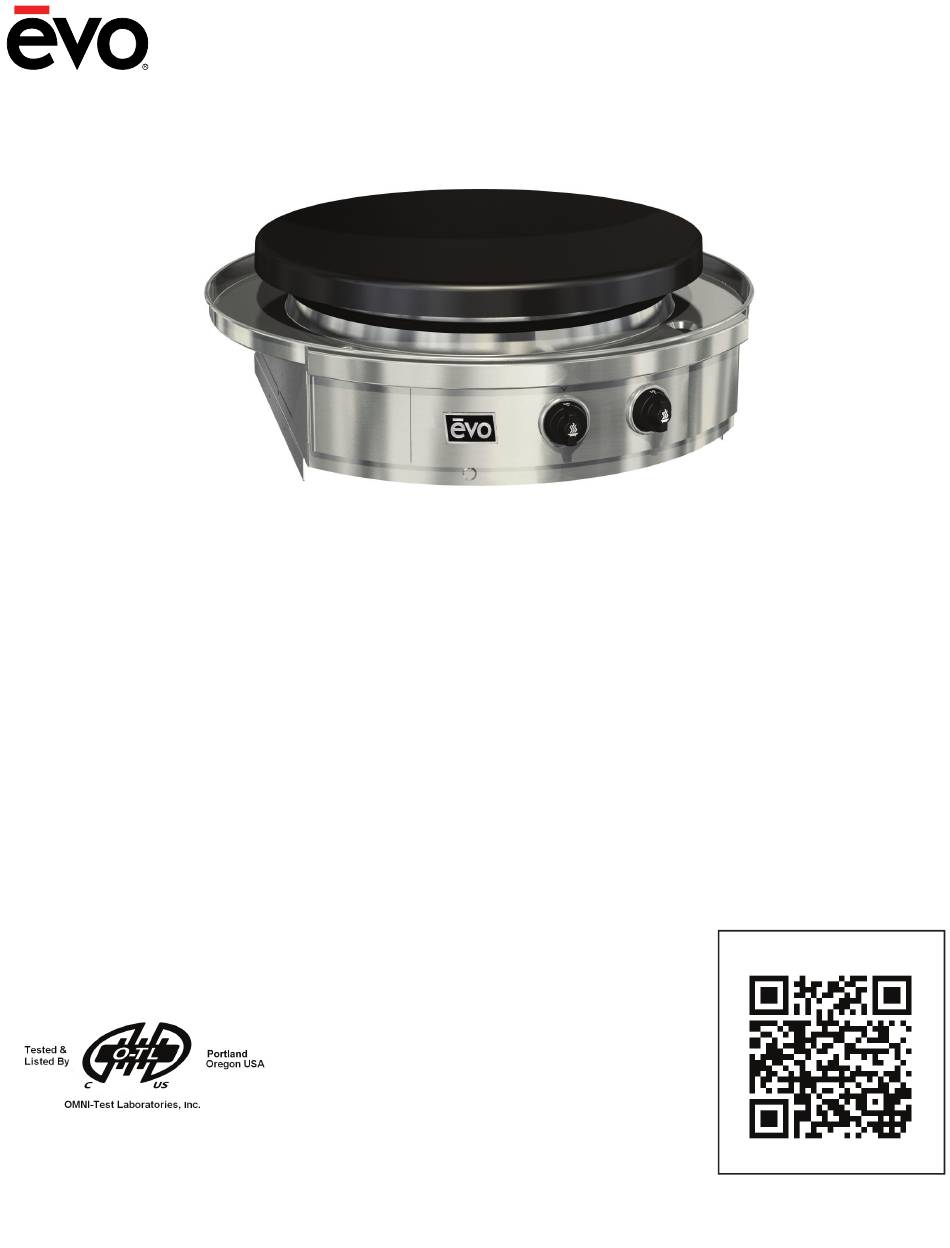

OWNER & INSTALLATION MANUAL
A f f i n i t y 3 0 G p
C o o k t o p

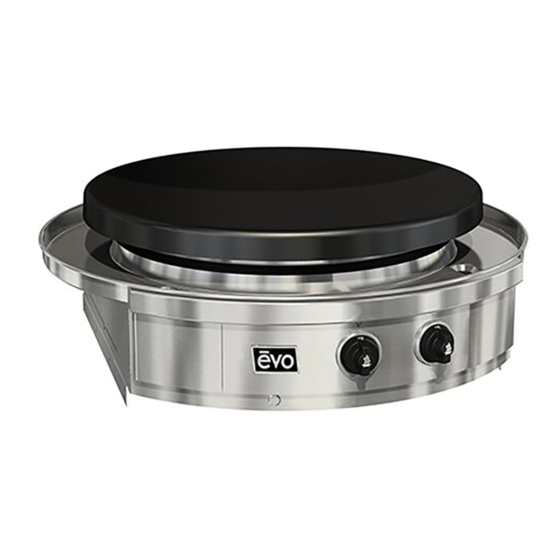

Evo Affi nity 30Gp Residential Series
Manual-Controlled Gas Cooktop
With Standing Pilot Light
For Indoor Use Only
This appliance and its individual shutoff valve must be disconnected from the gas supply piping system
during any pressure testing of system at test pressures in excess of 1/2 PSI (3.5kPa).
Pour obtenir un manuel en français, veuillez appeler Evo America, LLC au 503-626-1802.
Cleaning Instructions
For a French Language Manual, please call Evo America, LLC at 503-626-1802.
Certifi cation: ANSI Z21.1-2016/CSA 1.1-2016 OMNI Report # 0141GM008S
Part #: Residential Models: 10-0075-NG | 10-0075-LP
evoamerica.com
Doc: 1-1-2021
Copyright © 2021
FINAL QR Code for Evo Cleaning.indd 1
11/19/2015 11:43:18 AM
Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA
Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Evo Affinity 30Gp
Summary of Contents for Evo Affinity 30Gp
- Page 1 This appliance and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of system at test pressures in excess of 1/2 PSI (3.5kPa). Pour obtenir un manuel en français, veuillez appeler Evo America, LLC au 503-626-1802. Cleaning Instructions For a French Language Manual, please call Evo America, LLC at 503-626-1802.
- Page 2 Complete Now For Future Reference Model #_______________________________ Serial # _________________________________ Date Purchased ________________________ Location Purchased _______________________ Date Installed __________________________ Location Installed _________________________ Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...
- Page 3 WARNING Do not block or obstruct air ventilation for combustion. Do not attempt to light appliance during a power outage. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...
- Page 4 DURING THE FIRST FEW HOURS OF OPERATION IT IS NORMAL FOR OILS USED IN THE MANUFACTURING PROCESS TO BURN OFF AND GIVE AN ODOR OR SLIGHT PETROLEUM SMOKE. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...
- Page 5 Evo is protected under U.S Patents 6,189,530 and 6,488,022 and U.S. Patents Pending. 08/20/2020 Evo est protégé par des brevets É-U 6,189,530 et 6,488,022 et brevets É-U en instance. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA...
- Page 6 The maximum liability to Evo America, LLC in any event, shall not exceed the purchase price of the product paid by the original consumer- purchaser.
-
Page 7: Table Of Contents
BLEEDING AIR FROM THE GAS LINE LIGHTING STANDING PILOT BURNERS TEMPERATURE CONTROL REMOVABLE SPILLOVER TRAYS RECOGNIZING ABNORMAL GAS OPERATION AFFINITY 30Gp DIMENSIONS COOKING SURFACE MAINTENANCE Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com... -
Page 8: Unpack Cooktop Components
Pilot light and ignition parts are exposed during uncrating and installation. Use caution and do not alter factory set positions. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com... -
Page 9: Clearance Dimensions
* 3/8” of cement board lined enclosure to chassis. Read the instructions carefully in this booklet to install the Evo Affi nity 30Gp Cooktop to a metal, stone or wood counter top surface. Cabinet layout and construction may vary. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA... -
Page 10: Counter Top Installation
OPENING IN COUNTER TOP FRONT Mark the fi nished position of the Evo Affi nity 30Gp drip pan on the counter top using the dimensions shown. The circular dimension of 36.25” is the diameter of the drip pan to the outside fl... - Page 11 DESIRED. FRONT VIEW Construct a bay for the Evo unit with your chosen cabinet system. Position and fasten the supplied mounting brackets 7-21/32” below the fi nished counter top surface. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA...
- Page 12 Example of 3/8” tile with substrate for a minimum 1-3/16” (3cm) overall. Make sure you allow for the counter top overhang as shown. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...
- Page 13 (see diagrams above). A black o-ring is recessed in the top bead and designed to create a seal against the counter top. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...
-
Page 14: Insert Chassis In Counter Top
Gas Installation must be done by a licensed plumber in accordance with local guidelines once unit has been completely installed. Refer to pages 17- 18 and 21 for further instructions. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com... -
Page 15: Install Drip Pan And Drip Pan Gasket
From the inside of the skirt, use each of the three latches to pull the drip pan down into the counter. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com... - Page 16 Secure drip pan to chassis using access slot (A). Rewrap drip pan gasket around top of drip tray and secure (B). Ensure seal under drip pan edge is touching counter top(C). Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...
-
Page 17: Assembling Cook Surface Retaining Fasteners
(Ensure the Rear Retaining Bullet is placed on the right hand side of the tab). Next, loop the J-Hook through the inside slot of each remaining tab. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com... -
Page 18: Connecting And Installing Cook Surface
Place cook surface on an angle with Bullet Fastener facing down and rearward. Engage bullet fastener to keyway slot on chassis back wall and lower J-Hooks into front threaded tubes. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com... - Page 19 (B) and the rear bullet is secure in the chassis slot (C). Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...
-
Page 20: Installing Cook Surface Retention Fasteners
Open both waste doors and at the rear inside corner of the enclosure, tighten 1/4” X 20 nut on end of J-Hook to retain cooking surface for burner chassis. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com... -
Page 21: Removal And Replacement Of This Appliance
This may be necessary for removal of the grill chassis or cleaning under the drip pan) Remove Chassis From Countertop (Page 13) This may be necessary for complete removal of burner chassis for servicing) Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com... -
Page 22: Connecting Inlet Gas Line
A manual gas shut off valve must be installed in an accessible location in the gas line external to the appliance for the purpose of turning on or shutting off gas to the appliance. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com... -
Page 23: Safety Gas Pilot Light Functionality
fl ame is present, thereby eliminating unburned gas into an occupied space. It is recommended the gas pilot light burners be shut off each night to minimize gas usage. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com... -
Page 24: Bleeding Air From The Gas Line
How To Bleed The Gas Line: Step 1: Turn on gas at the gas inlet valve (external to the evo appliance and supplied by others). Step 2: Locate the gas bleed port, and using a small fl at-blade screwdriver, open the gas bleed screw until all the air is purged from the gas line and until there is a faint smell of gas and then immediately close the bleed screw. -
Page 25: Lighting Standing Pilot Burners
STEP 4: Repeat steps 1 and 2 for the Outer Burner Pilot Light. With both the inner and outer pilot light burners lit and continuously burning, full functionality to the inner and outer main tube burners is now available. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com... -
Page 26: Temperature Control
Diff erences in altitude and inlet gas pressure less than recommended 7”W.C for NG and 11”W.C for LP will cause a variation in set temperature. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com... -
Page 27: Removable Spillover Trays
Spillover debris and liquids can be hot and cause burns, and/or damage to the internal operation of the grill. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com... -
Page 28: Recognizing Abnormal Gas Operation
Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com... -
Page 29: Affinity 30Gp Dimensions
A f f i n i t y 3 0 G p AFFINITY 30Gp DIMENSIONS 30” 762mm Diameter 36 5/32” 914mm 11-7/32” 292mm Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com... -
Page 30: Cooking Surface Maintenance
To condition the Evo cook surface you should use the grill cleaning kit supplied with your grill. The grill cleaning kit contains a blue grill pad handle, grill cleaning screens, and grill grey polishing pads. Use the polishing pad after the grill cleaning pads to achieve a smooth cooking surface for the most delicate foods and applications.
