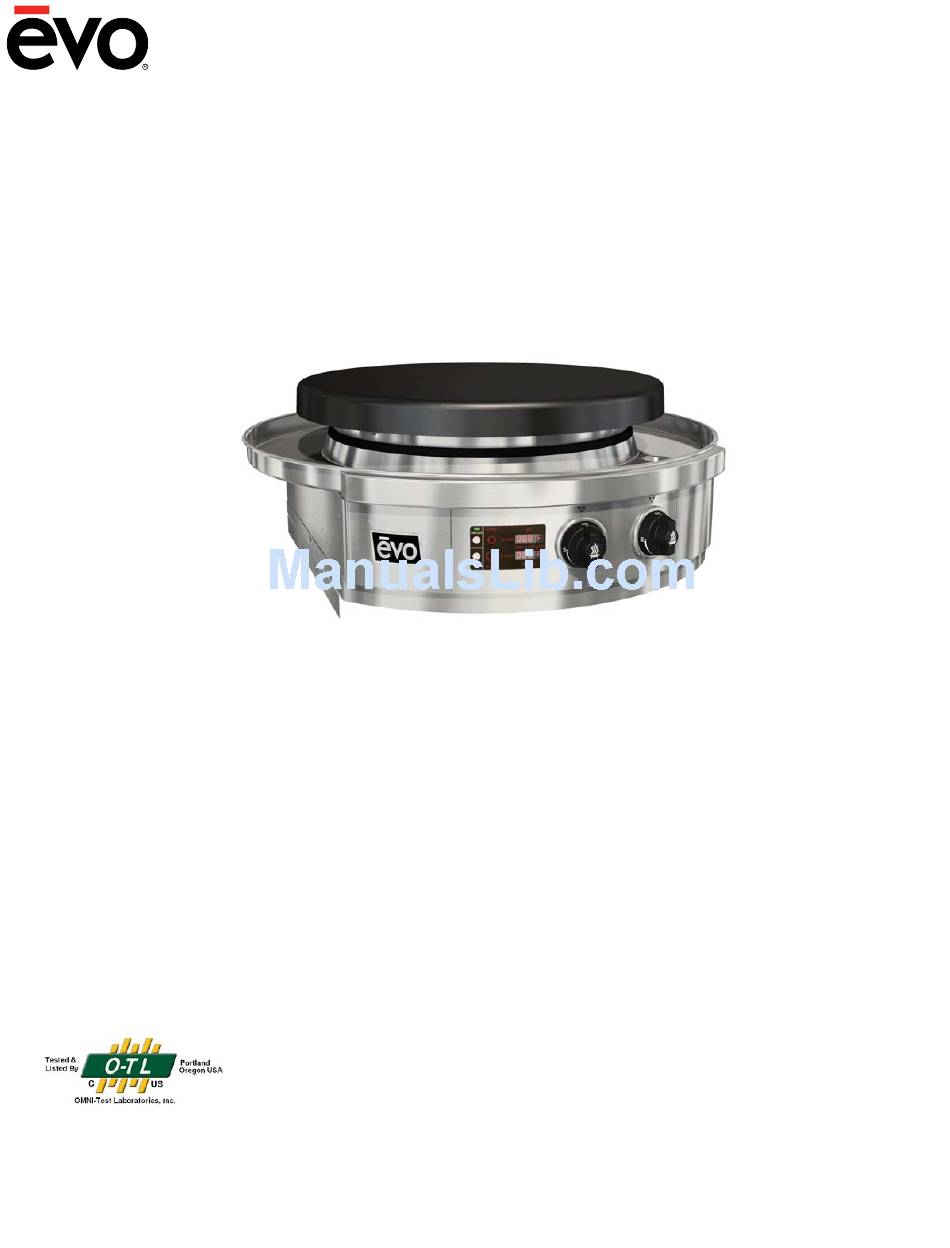

OWNER & INSTALLATION MANUAL
A f f i n i t y 2 5 E
3 0 A M P C o o k t o p
Evo Affi nity 25E
Electric Residential Cooktop
For Indoor Use Only
Certifi cation: UL 197-2010 | CSA C22.2 No. 109-M1981 (R2009) | Report # 141-S-05e-2
Part # 10-0061-EL and 10-0062-EL
Doc: OM-C-25E20-30 v3 07/31/2015
Copyright © 2015
Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA
Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com
Advertisement
Table of Contents
Related Manuals for Evo affinity 25E
Summary of Contents for Evo affinity 25E
- Page 1 Certifi cation: UL 197-2010 | CSA C22.2 No. 109-M1981 (R2009) | Report # 141-S-05e-2 Part # 10-0061-EL and 10-0062-EL Doc: OM-C-25E20-30 v3 07/31/2015 Copyright © 2015 Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...
-
Page 2: Installation Instructions
DURING THE FIRST FEW HOURS OF OPERATION IT IS NORMAL FOR OILS USED IN THE MANUFACTURING PROCESS AND INSULATING MATERIAL TO BECOME WARM AND GIVE OFF AN ODOR. Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com... - Page 3 Evo promises to replace, at its determination, any product or component that is defective and covered under this warranty for as long as you, the registered original consumer-purchaser, owns the grill.
-
Page 4: Installation Checklist
INSTALL ELECTRICAL CONNECTIONS INSTALL COOK SURFACE AND TIGHTEN FASTENERS 16 - 17 OPERATOR INSTRUCTIONS 18 - 20 ELECTRICAL SCHEMATICS Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com... - Page 5 STEP 1: As you are unpacking the crate, make sure you locate all components before installation. Keep all protective cardboard on components until installation is complete. Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...
- Page 6 STEP 1 CONTINUED: Take care when lifting the cook surface during uncrating. Do not pull or damage wires or connections. Store in a safe place until ready to install. Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...
-
Page 7: Clearance Dimensions
Evo Affi nity 25E Cooktop to a metal, stone or wood countertop surface. Cabinet layout and construction may vary. Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com... - Page 8 OPENING IN COUNTERTOP FRONT STEP 2: Mark the fi nished position of the Evo Affi nity 25E drip pan on the countertop using the dimensions shown. The circular dimension of 31-11/16” is the diameter of the drip pan to the outside fl ange material thickness (located to the inside of the half-rolled bead edge).
- Page 9 Also ensure allowance for the countertop overhang as shown on the SIDE VIEW (see next page). When you have confi rmed the position is correct, cut the countertop and substrate. Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...
- Page 10 Example of 3/8” tile with substrate for a total of 1-1/2” overall. Make sure you allow for the countertop overhang as shown. Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...
- Page 11 Affi nity 25E if desired. STEP 3: Construct a bay for the Evo unit with your chosen cabinet system. Position and fasten the supplied mounting brackets 7-21/32” below the fi nished countertop surface. Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA...
-
Page 12: Insert Chassis In Countertop
NOTE: Electrical Installation of the service line must be done by a licensed electrician in accordance with local guidelines once unit has been completely installed. Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com... - Page 13 From the inside of the skirt, use each of the three latches to pull the drip pan down into the counter. Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...
- Page 14 (B). Ensure seal under drip pan edge is touching countertop(C). IMPORTANT: Keep protective cardboard on drip pan until cook surface is installed. Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...
- Page 15 For electrical wiring details, refer to the electrical schematic in the back of this guide. Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...
- Page 16 (B) and the rear bullet secures in the chassis slot (C) . Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...
- Page 17 Complete electrical installation by connecting 3-wire service line located underneath unit. Use electrical schematic diagram at the back of this guide for reference. Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...
-
Page 18: Operator Instructions
150, 165, 175, 200, 225, 250. 275, 300, 325, 350, 375, 400. 415, 425, 450, 475, 500, 525. Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com... -
Page 19: Removable Spillover Trays
Spillover debris and liquids can be hot and cause burns, and/or damage to the internal operation of the grill. Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com... - Page 20 To condition the Evo cook surface you should use the grill cleaning kit supplied with your grill. The grill cleaning kit contains a blue grill pad handle, grill cleaning screens, and grill grey polishing pads. Use the polishing pad after the grill cleaning pads to achieve a smooth cooking surface for the most delicate foods and applications.
- Page 21 D2: Display Overlay (w/dome switches) J1: Panel Mount Housing Mode Molex #428180412 P1: Locking Housing Molex #428160412 Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...
