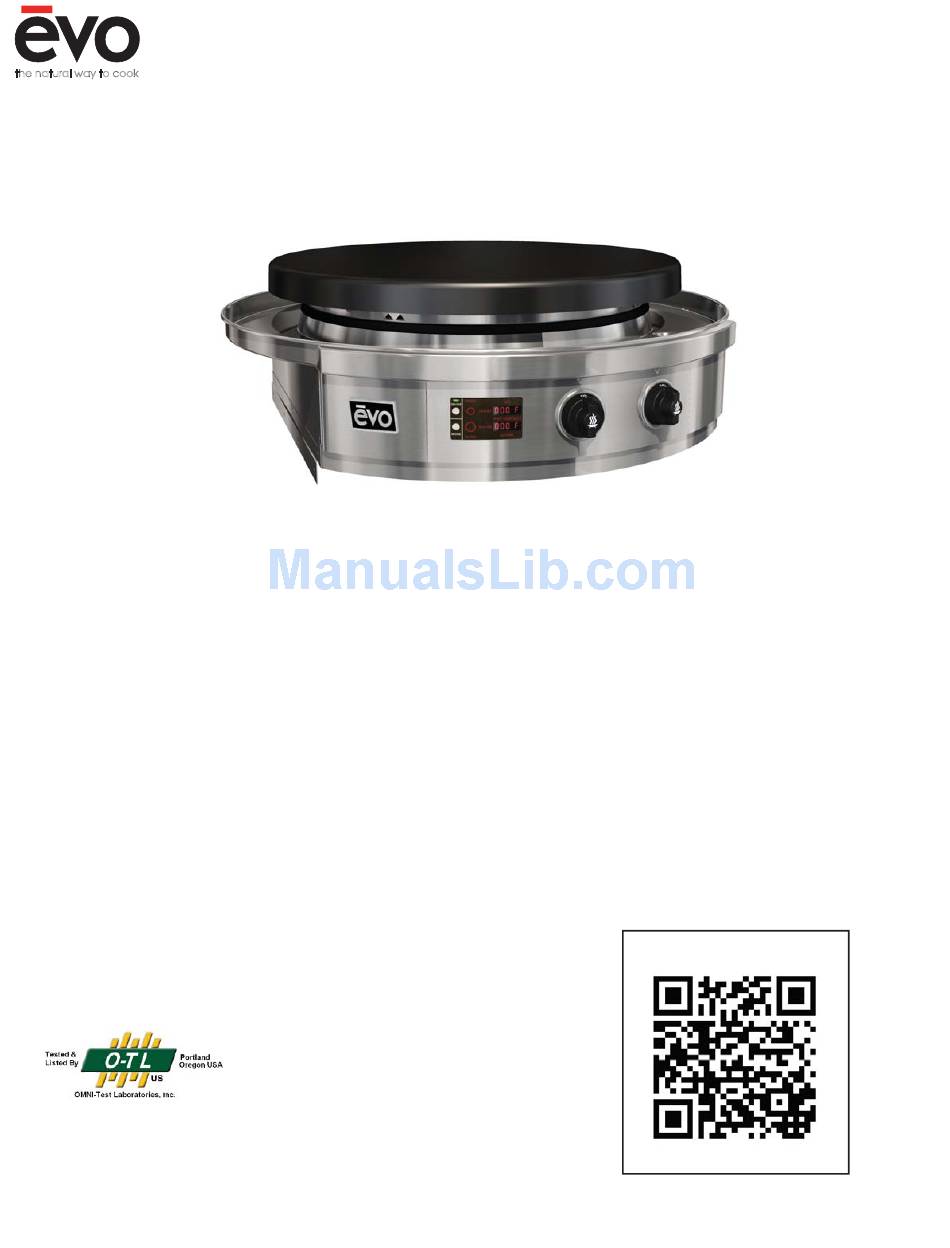

Evo Affinity 30Ge Owners & Installation Manual

Electronically-controlled gas cooktop
Hide thumbs Also See for Affinity 30Ge:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual, Owners & Installation Manual
®
the natural way to cook
®
This appliance and its individual shutoff valve must be
disconnected from the gas supply piping system during
any pressure testing of system at test pressures in
excess of 1/2 PSI (3.5kPa).
This appliance, when installed, must be electrically grounded in accordance with local codes,
or in the absence of local codes, with the National Electrical Code, ANSI/NFPA70,
Certifi cation: ANSI Z83.11b-2009/CSA 1.8B-2009. OMNI Report # 0141GM004S
Part #: Commercial models: 10-0050-NG | 10-0050-LP
Residential models: 10-0051-NG | 10-0051-LP
Doc: OM-C&R-30Ge 01/2016
Copyright © 2016
Evo Affi nity 30Ge
Electronically-Controlled Gas Cooktop
For Indoor Use Only
or the Canadian Electrical Code, CSA C22.2, as applicable.
Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA
Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com
OWNER & INSTALLATION MANUAL
This appliance must be isolated from the gas supply
piping system by closing its individual manual shutoff
valve during any pressures testing of the gas supply
system at test pressures equal to or less than 1/2 PSI
(3.5kPa).

Cleaning Instructions

evoamerica.com
FINAL QR Code for Evo Cleaning.indd 1
A f f i n i t y 3 0 G e
C o o k t o p
11/19/2015 11:43:18 AM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Affinity 30Ge and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Evo Affinity 30Ge

Summary of Contents for Evo Affinity 30Ge

  • Page 1: Cleaning Instructions

    Residential models: 10-0051-NG | 10-0051-LP Doc: OM-C&R-30Ge 01/2016 Copyright © 2016 FINAL QR Code for Evo Cleaning.indd 1 11/19/2015 11:43:18 AM Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...
  • Page 2 Be sure to read and carefully follow personal injury and / or property damage. all of the messages. Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...
  • Page 3 Model #_______________________________ Serial # _________________________________ Date Purchased ________________________ Location Purchased _______________________ Date Installed __________________________ Location Installed _________________________ Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...
  • Page 4 DURING THE FIRST FEW HOURS OF OPERATION IT IS NORMAL FOR OILS USED IN THE MANUFACTURING PROCESS TO BURN OFF AND GIVE AN ODOR OR PETROLEUM SMOKE. Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...
  • Page 5 The maximum liability to Evo, Incorporated in any event, shall not exceed the purchase price of the product paid by the original consumer-purchaser.

  • Page 6: Safety Label

    Evo is protected under U.S Patents 6,189,530 and 6,488,022 and U.S. Patents Pending. Fabriqué aux É.-U. Evo est protégé par des brevets É-U 6,189,530 et 6,488,022 et brevets É-U en instance. 09-12-/2014 Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA...
  • Page 7 One Year from the original date of purchase from Evo, Inc. This warranty is for the benefi t of the original use purchaser and is non-transferable.

  • Page 8: Table Of Contents

    22 - 23 SPILLOVER TRAY REMOVAL AND CLEANING COOKING SURFACE MAINTENANCE APPENDIX - CONTROL COMPONENTS 26 - 27 Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...

  • Page 9: Unpack Cooktop Components

    Ignition components are exposed during uncrating and installation. Use caution and do not alter factory set positions. Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...

  • Page 10: Clearance Dimensions

    Evo Affi nity 30Ge Cooktop to a metal, stone or wood countertop surface. Cabinet layout and construction may vary. Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...

  • Page 11: Prepare Counter Top For Installation

    OPENING IN COUNTERTOP FRONT STEP 2: Mark the fi nished position of the Evo Affi nity 30Ge drip pan on the countertop using the dimensions shown. The circular dimension of 18-1/8” is the diameter of the drip pan to the outside fl...
  • Page 12 (see next page). When you have confi rmed the position is correct, cut the countertop and substrate. Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...
  • Page 13 Example of 3/8” tile with substrate for a minimum 3 cm overall. Make sure you allow for the countertop overhang as shown. Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...
  • Page 14 30Ge if desired. STEP 3: Construct a bay for the Evo unit with your chosen cabinet system. Position and fasten the supplied mounting brackets 7.65” below the fi nished countertop surface. Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA...

  • Page 15: Insert Chassis In Countertop

    Refer to pages 17-18 and 21 for further instructions. Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...

  • Page 16: Install Drip Pan And Drip Pan Gasket

    From the inside of the skirt, use each of the three latches to pull the drip pan down into the counter. Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...
  • Page 17 STEP 6: Secure drip pan to chassis using access slot (A). Rewrap drip pan gasket around top of drip tray and secure (B). Ensure seal under drip pan edge is touching countertop(C). Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...

  • Page 18: Assembling Cook Surface Retaining Fasteners

    Next, loop the J-Hook through the inside slot of each remaining tab. Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...

  • Page 19: Connecting Temperature Sensor Wire To Cooking Surface

    DO NOT OVER TIGHTEN TC-WIRE HEX NUTS. DOING SO WILL BREAK THREADED WELD STUD ON COOK SURFACE. Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...

  • Page 20: Positioning Temperature Sensors And Lowering Cooking Surface

    The Inner Zone (Inner Burner) has one TC at #1 position. The Outer Zone (Outer Burner) has three TC’s at positions #2, #3, and #4 that are averaged. Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...

  • Page 21: Retaining Cooking Surface

    STEP 12: Open both waste doors and at the rear inside corner of the enclosure, tighten nyloc nut on end of J-Hook to retain cooking surface for burner chassis. Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...

  • Page 22: Connect Electrical And Gas Lines

    INSTALLATION SHOULD CONFORM TO THE NATIONAL ELECTRIC CODE AND ALL VOLTAGE LOCAL ELECTRIC AND GAS RULES AND REGULATIONS. Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...

  • Page 23: Display Panel And Temperature Control

    When MODE is held for 4 seconds, the temperature display units change from Fahrenheit (°F) to Celsius (°C). Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...

  • Page 24: Temperature Control

    Temperature, surface temperature recovery occurs quickly and provides a wide range of surface temperature adjustment and control. Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...

  • Page 25: Spillover Tray Removal And Cleaning

    Do not allow the spillover trays to overfl ow, and do not allow full trays to splash over edge when cleaning. Spillover debris and liquids can be hot and cause burns. Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...

  • Page 26: Cooking Surface Maintenance

    To condition the Evo cooking surface you should use the grill cleaning kit supplied with your grill. The grill cleaning kit contains a blue grill pad handle, grill cleaning screen, and grill grey polishing pad. Use the polishing pad after the grill cleaning pads to achieve a smooth cooking surface for the most delicate foods and applications.
  • Page 27 A f f i n i t y 3 0 G e ELECTRICAL SCHEMATIC PART #: 10-0050 NG / 10-0050 LP Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...

  • Page 28: Appendix - Control Components

    Pressure Settings Propane Gas - LP..10” WC (Fixed) Evo Affi nity 30Ge inlet gas pressure must not exceed 1/2 PSI (maximum) gas service. The Affi nity 30Ge utilizes a factory-set internal gas regulator that accepts 1/2 PSI inlet pressure and outputs 4” W.C. for use by the burner system.
