Evo EVent 48E Quick Start Manual

Project:

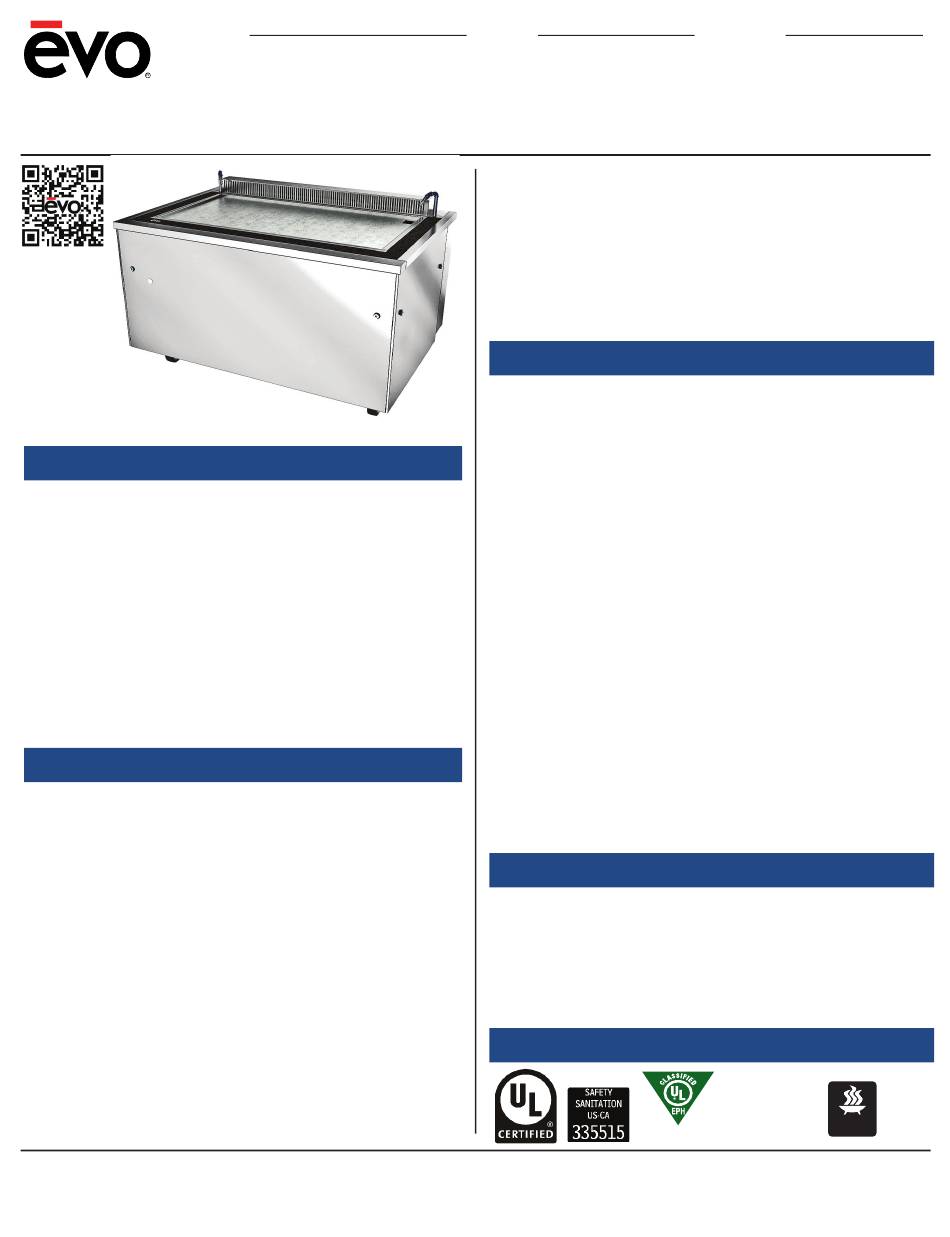

Model 10-0148-EVT
w/ 36" Casters Shown

DESCRIPTION

®
The Evo EVent 48E is an electrically controlled 48" x 24" (1219mm
x 610mm) rectangular steel cooktop in an integrated ventless
recirculating ventilation unit. Evo EVents four combined heaters
heat a static cooking zone with variable temperatures ranging from
100ºF to 550ºF (38ºC to 288ºC). A high velocity CFM ventless system
provides containment and capture from the intake aperture located
on the chef-side adjacent the cooking surface, and a discharge
duct on the chef-side returns clean fi ltered air. The duct system is fully
welded stainless steel and utilizes a 4-stage fi ltration system including
a washable stainless steel grease baffl e fi lter, mesh particulate fi lter,
electrostatic precipitator, and a replaceable activated charcoal
fi lter. Factory installed fi re suppression system with dry contact fi re
alarm micro switch and cross-pattern nozzles provide a continuous
zone of fi re protection.

SPECIFICATIONS

FILTRATION - Completely self-contained 4-stage fi ltration process
reduces grease emissions below that are allowed in NFPA 96 and ANSI
UL710B using the EPA 202 test method. The self-contained 4-stage
fi ltration system includes a washable stainless steel grease baffl e fi lter,
mesh particulate fi lter, electrostatic precipitator (ESP) and replaceable
activated charcoal fi lter. All fi lters are easily removable with the
included 8 MM hex key. Airfl ow sensors continually monitor airfl ow and
grease removal while an interlock system will not allow unit to operate
if fi lters are missing, clogged or in the event of a fi re.
FIRE PROTECTION - Factory installed Buckeye® Kitchen Mister system
includes BFR-5 tank, 2 - nitrogen cartridges, SRM control head, piping,
fl ex cable, fusible link, nozzles and manual pull station. Manual
pull is located on the chef side (front) of the unit. BFR-5 tank comes
pre-fi lled (charged) with fi re suppression chemical. Fire protection
system meets NFPA 96 Chapter 13 and was tested to UL300 standards.
Fire protection system must be armed and certifi ed by Buckeye®
Authorized distributor after installation and before fi rst use (operators
responsibility).
Evo is protected under U.S. Patents 9,897,328, 9,869,474, 10,139,113, 9,903,595, 10,842,540, 7,825,353 and U.S. Patents Pending.
Version: 2021 v1
Evo EVent
® ®
Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062
Ph 503-626-1802 • Fax 503-213-5869 •evoamerica.com • sales@evoamerica.com
NOTE: Due to ongoing product improvement, specifi cations are subject to change without notice and are not
Item #:
Electric Cooktop in Ventless Recirculating
48E
-
Ventilation System
EXHAUST AND AIR FLOW - Exhaust air is horizontal discharge. A
range between 70 and 140 cubic feet (CFM) of fresh air per minute
recommended both in and out of cooking area to ensure the dilution
of cooking aromas. Dedicated Make-up Air unit is not required.
COOKING APPLIANCE - The 48E unit includes a 48" x 24" (1219mm
x 610mm) fl at rectangular steel cook surface with Evo
intelligent heating technology that provides a 24" x 17" heated
cooking area. Each unit also includes a resistive touchscreen display
that provides feedback on the operation of the unit.
STANDARD FEATURES
• 48" x 24" (1219mm x 610mm) fl at rectangular steel cook surface
• Variable temperatures 100°F to 550°F (38°C to 288°C)
• Completely self-contained, 4-stage fi ltration system
• Resistive interactive touchscreen display that provides instant
status of fi lters, grease drawers and control of temperature presets
• Stainless steel and aluminum construction for durability, strength
and ease of cleaning
• Can be factory confi gured for 36" or 34" overall counter height
• Large removable grease collection tray
• Self-contained fi ltration process reduces emissions below that
allowed in NFPA 96 and ANSI UL710B using the EPA 202 test method
• Pre-engineered factory installed fi re protection system
• Fire protection system includes a dry contact micro switch for
connection to a central fi re alarm system (operators responsibility)
• Low noise with only 70 dBA average
• Evo EVents are semi-mobile, making them easy to roll out for
housekeeping and maintenance
• Chef-side accessible washable stainless steel grease baffl e
fi lter, mesh particulate fi lter, electrostatic precipitator (ESP) and
disposable activated charcoal fi lter
• Charcoal fi lter recommended replacement interval - 2 weeks
• Available in 208 or 240 V, 1-phase (Must be specifi ed at order)
• 8-foot cord and molded NEMA 6-50P
• Units ship with one complete set of 4 fi lters, grill surface cleaning
kit, 2 stainless steel spatulas, grill scraper, and owner's manual
• Limited one-year parts and labor warranty
AVAILABLE PARTS
• 10-0150-EVT-34 34" Caster Kit - ADA Compliant
• 10-0150-EVT-36 36" Caster Kit - Standard
• 10-0150-EVT-FMS Stainless Steel Surround
• 13-0200-EVT Electrostatic Precipitator (ESP)
• 13-0210-EVT Stainless Steel Grease Baffl e Filter
• 13-0220-EVT Aluminum Mesh Pre-Filter
• 13-0230-EVT Replaceable Charcoal Filter
• 20-EVT-1000 Recommended Spare Parts Kit
CERTIFICATIONS
intended for installation purposes.
Confi g #:
Model #: 10-0148-EVT
®
UL710B
LISTED
E470119
