Evo Affinity 25G Owners & Installation Manual

Residential gas cooktop
Hide thumbs Also See for Affinity 25G:
Table of Contents

Advertisement

Quick Links

Download this manual
Tested &
Portland
Listed By
Oregon USA
Certifi cations:
ANSI Z21.58-2015/CSA 1.6-2015 - "Outdoor Cooking Gas Appliances".
CSA 2.17-2017 - "Gas-Fired Appliances For Use At High Altitudes".
OMNI Report # 0141GM007S
Part #: Residential Models: 10-0095-NG, 10-0095-LP
Doc: 1-1-2021 Copyright © 2021
Pour obtenir un manuel en français, veuillez appeler Evo, America, LLC au 503-626-1802.
For a French Language Manual, please call Evo, America, LLC at 503-626-1802.

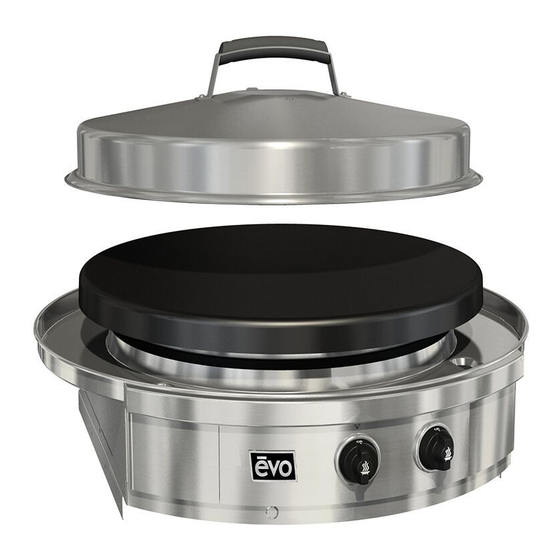

Evo Affi nity 25G
Residential Gas Cooktop
For Outdoor Use Only
Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA
Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com
OWNER & INSTALLATION MANUAL
A f f i n i t y 2 5 G
C o o k t o p
Cleaning Instructions
evoamerica.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Affinity 25G and is the answer not in the manual?

Questions and answers

Related Manuals for Evo Affinity 25G

Summary of Contents for Evo Affinity 25G

  • Page 1 Part #: Residential Models: 10-0095-NG, 10-0095-LP Doc: 1-1-2021 Copyright © 2021 Pour obtenir un manuel en français, veuillez appeler Evo, America, LLC au 503-626-1802. For a French Language Manual, please call Evo, America, LLC at 503-626-1802. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA...

  • Page 2: Safety Warnings

    Complete Now For Future Reference Model #_______________________________ Serial # _________________________________ Date Purchased ________________________ Location Purchased _______________________ Date Installed __________________________ Location Installed _________________________ Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...
  • Page 3 36” from top of grill. Do not obstruct the fl ow of combustion and ventilation air, including ventilation of cylinder enclosures, if applicable. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...
  • Page 4 DURING THE FIRST FEW HOURS OF OPERATION IT IS NORMAL FOR OILS USED IN THE MANUFACTURING PROCESS TO BURN OFF AND GIVE AN ODOR OR SLIGHT PETROLEUM SMOKE. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...

  • Page 5: Residential Warranty

    The maximum liability to Evo America, LLC in any event, shall not exceed the purchase price of the product paid by the original consumer-purchaser.

  • Page 6: Table Of Contents

    REPLACING ELECTRONIC IGNITOR BATTERY MAINTAINING SPILLOVER TRAYS AFFINITY 25G DIMENSIONS COOKING SURFACE MAINTENANCE CARE & USE GUIDE FOR GAS GRILLS Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...

  • Page 7: Unpacking Cooktop Components

    fi rst wrench. installation step. STEP 1: As you are unpacking the crate, make sure you locate all components before installation. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...

  • Page 8: Clearance To Combustibles Dimensions

    CLEARANCE FROM EDGE OF DRIP PANS. Minimum 3” clearance required under unit venting to 22 sq/in of combustible air. The minimum environmental temperature for safe use of the Evo Affi nity 25G ° ° should not be below 32 F ( 0...

  • Page 9: Prepare Countertop For Installation

    OPENING IN COUNTERTOP FRONT STEP 2: Mark the fi nished position of the Evo Affi nity 25G drip pan on the countertop using the dimensions shown. The circular dimension of 31” 11/16” is the diameter of the drip pan to the outside fl...
  • Page 10 Also ensure allowance for the countertop overhang as shown on the SIDE VIEW (see next page). When you have confi rmed the position is correct, cut the countertop and substrate. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...
  • Page 11 Example of 3/8” tile with substrate for a total of 1-1/2” overall. Make sure you allow for the countertop overhang as shown. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...
  • Page 12 25G if desired. STEP 3: Construct a bay for the Evo unit with your chosen cabinet system. Position and fasten the supplied mounting brackets 7-21/32” below the fi nished countertop surface. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA...

  • Page 13: Insert Chassis In Counter Top

    Gas Installation must be done by a licensed professional in accordance with local guidelines once unit has been completely installed. Refer to pages 20 - 25 for further instructions. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...

  • Page 14: Install Drip Pan And Drip Pan Gasket

    From the inside of the skirt, use each of the three latches to pull the drip pan down into the counter. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...
  • Page 15 STEP 6: Secure drip pan to chassis using access slot (A). Rewrap drip pan gasket around top of drip tray and secure (B). Ensure seal under drip pan edge is touching countertop (C). Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...

  • Page 16: Assembling Cook Surface Retaining Fasteners

    Next, loop the J-Hook through the inside slot of each remaining tab. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...

  • Page 17: Install Cook Surface And Tighten Fasteners

    Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...
  • Page 18 (B) and the rear bullet secures in the chassis slot (C) . Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...
  • Page 19 One at a time, slide J-hooks through guide tubes. Slowly place cooktop down. Open both waste doors and tighten nyloc nut on end of j-hook located at inside rear of each waste door. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...

  • Page 20: Connecting Gas & Checking For Leaks

    Refer to pages 21-25 for specifi c instructions regarding LP and NG connections, checking for gas leaks and recognizing abnormal gas operation (page 30). Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...
  • Page 21 If it is evident there is excessive abrasion or wear, or the hose is cut, it must be replaced prior to the unit being put into operation. Regulator and hose assembly can be purchased from Evo by calling 866-626-1802 or from a local gas supply company. Specifi cations for these parts are: •...
  • Page 22 CAN/CSA B339. If the above information is not followed exactly, a fi re causing death or serious injury may occur. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...
  • Page 23 Note: All factory-made connections have been thoroughly checked for gas leaks. The burners and ignition system has been fl ame tested. As a safety precaution, we recommend you recheck all fi ttings for leaks before using your Evo cooktop. Shipping and handling may loosen or damage a gas fi tting.
  • Page 24 Note: All factory-made connections have been thoroughly checked for gas leaks. The burners and ignition system has been fl ame tested. As a safety precaution, we recommend you recheck all fi ttings for leaks before using your Evo grill. Shipping and handling may loosen or damage a gas fi tting.

  • Page 25: Locating The Gas Burner And Gas Orifice Jets

    To remove an orifi ce, pull the Orifi ce Retaining Arm away from the orifi ce and then move the orifi ce from the venturi. Inner Burner Outer Burner Orifi ce Retaining Arm Gas Burner Orifi ce Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...

  • Page 26: Check List For Installation Procedures

    GAS CONNECTION HOOKED UP PROPERLY Check for gas leaks. Check for proper operation. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...

  • Page 27: Temperature Control And Lighting Instructions

    Because the burners are enclosed within a circular chassis and all heat is directed upward at the cooking surface, cook surface temperature recovery is very fast, providing a wide range of surface temperature adjustment and control. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...
  • Page 28 LIGHTING INSTRUCTIONS BEFORE EACH USE: Inspect gas hose under unit. If it is evident there is excessive abrasion or wear, or the hose is cut, please contact Evo for a replacement hose. Electronic Ignitor Lighting Procedure: 1. Read instructions carefully before lighting.

  • Page 29: Recognizing Abnormal Gas Operation

    If insect nests are found, the best method is to use a thin piece of wire or bamboo skewer to remove the obstruction. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...

  • Page 30: Replacing Electronic Ignitor Battery

    3. Install a AA type battery into the ignitor housing with the positive “+” end facing downward (C). 4. If the ignitor is still not working, contact Evo Customer Support for an ignitor replacement. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA...

  • Page 31: Maintaining Spillover Trays

    Spillover debris and liquids can be hot and cause burns, and/or damage to the internal operation of the grill. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...

  • Page 32: Affinity 25G Dimensions

    A f f i n i t y 2 5 G AFFINITY 25G DIMENSIONS 25” 635mm Diameter 36 1/8” 914mm 11 3/8”” 228mm 19 7/8”” 503mm Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...

  • Page 33: Cooking Surface Maintenance

    To condition the Evo cook surface you should use the grill cleaning kit supplied with your grill. The grill cleaning kit contains a blue grill pad handle, grill cleaning screens, and grill grey polishing pads. Use the polishing pad after the grill cleaning pads to achieve a smooth cooking surface for the most delicate foods and applications.

  • Page 34: Care & Use Guide For Gas Grills

    fi re depart- ment. YOUR GRILL IS FOR OUTDOOR USE ONLY Warranty Information Serial Number: Date Purchased: Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...
  • Page 35 9 • If you have questions or comments concerning the care and use of your grill, or if you need warranty parts, call Evo Toll-Free at 866-626- 1802 or send a Fax to 503-213-5869. To order non-warranty, replacement parts or accessories, call Toll-Free at 866-626-1802 or send or Fax to 503-213-5869.
  • Page 36 A frosty regulator indicates gas overfi ll. Call local LP gas dealer for assistance. f. Only use pressure regulator supplied with grill. If replacement hose and/or regulator are needed, only Evo part number or cross-referenced number may be used.
  • Page 37 BEFORE COOKING ON YOUR GRILL Your Evo cook surface has been carefully prepared and fi nished at the factory to provide the best possible cooking surface, however for an Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA...
  • Page 38 To Maintain Cook Surface - Season often and clean using grill pad, woven nylon or plastic scouring pads (use metal brushes for stubborn residue). We recommend you use the cook surface cleaning kit that came with your Evo grill. Use warm soapy water to clean around grill handles and then wipe dry.
  • Page 39 WARNING: Do not insert any foreign objects into the valve outlet. You may damage the back-check valve. A damaged back-check module can leak propane. Leaking propane may result in explosion, fi re, severe personal injury, or death. Evo America, LLC 20360 SW Avery Ct., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | evoamerica.com | support@evoamerica.com...
