AEK-POW-BMSNOTX overview

Our offer for BMS evaluation boards also includes the
cells.
Like the AEK-POW-BMS63EN, this board is based on the L9963E.
This embedded L9963E device can act as a transceiver, directly communicating with an MCU via SPI.
The board is particularly fit for auxiliary battery systems to supply power for devices (such as audio system,
window cleaning
system, seat heating, light system, light signalization, climate control system) connected to your vehicle (even
when the engine
is not running), ensuring the main starting battery is reserved for engine cranking and vehicle electrical
requirements.
1.2.1

Features

• The board hosts the
• Voltage monitoring of every single cell and of the entire battery node
• Current sensing of the entire battery node
• 4 GPIOs to connect NTC sensors present on the battery pack connector
• 3 NTC sensors that can be connected to CN3, CN4 and CN5 connectors
• 1 NTC sensor to measure the board temperature
• CN1 connector to communicate with an MCU board via SPI
UM3185 - Rev 3

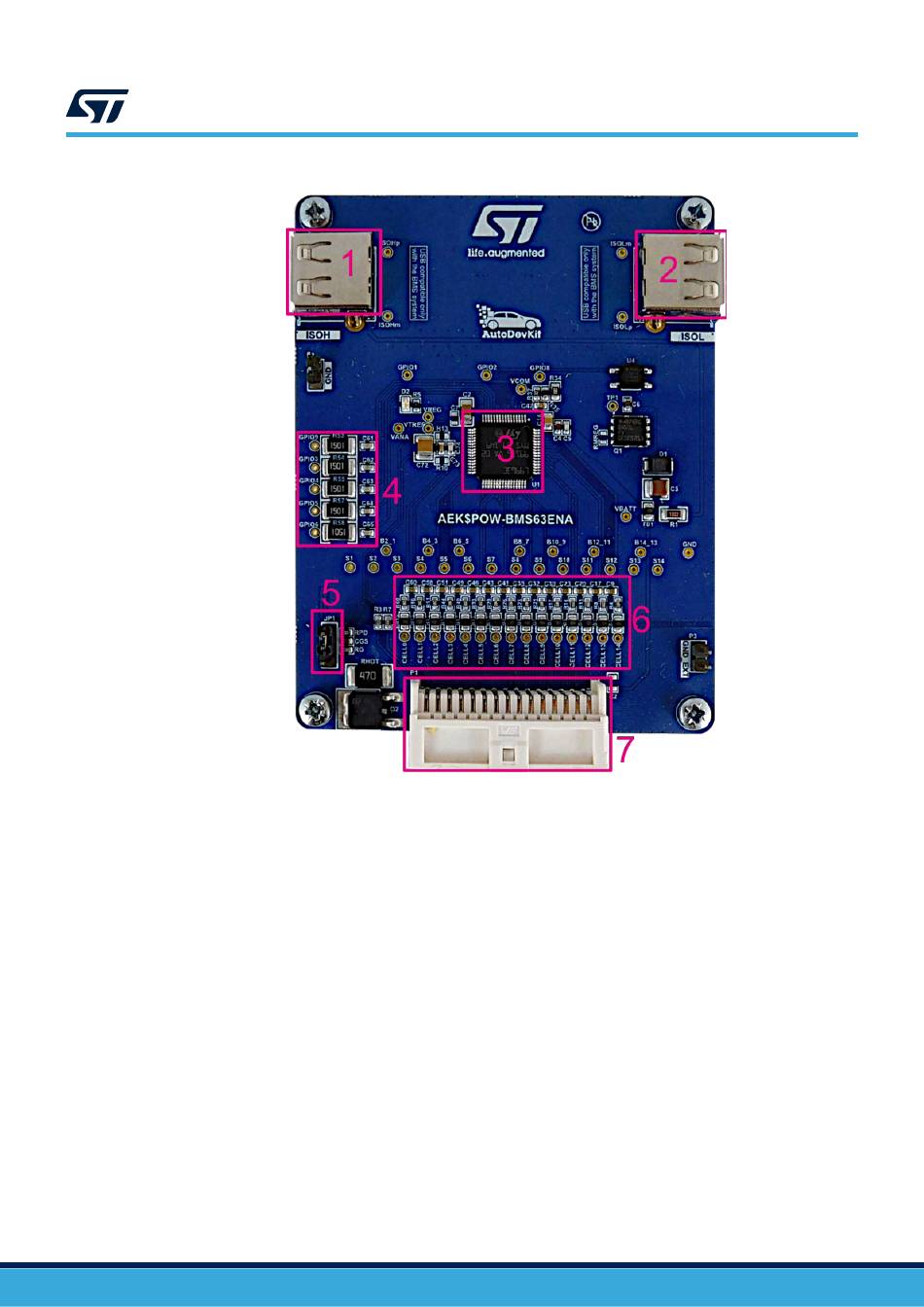

Figure 2. AEK-POW-BMS63EN main components
AEK-POW-BMSNOTX
L9963E AEC-Q100 qualified automotive multicell battery monitoring and balancing IC
UM3185
BMS evaluation board overview
