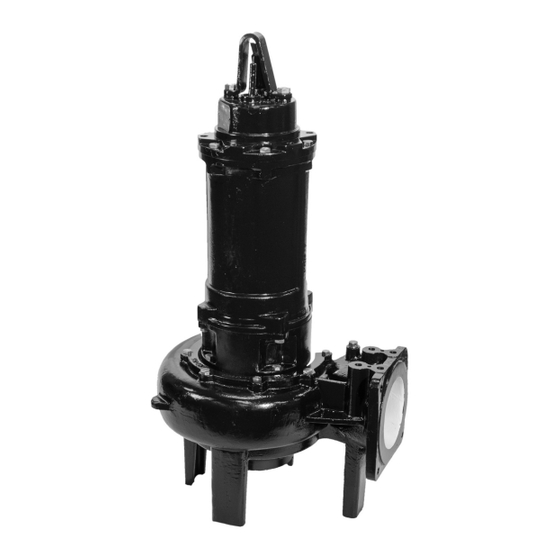

Submersible Wastewater, Sewage Pump
Model DLFU
Model DLFMU
Model DLKFU
Model DLKFMU
EBARA Pumps Americas Corporation
Operating Instructions, Installation & Maintenance Manual
Illinois Location:
(847) 841-7867
860 Church Rd Elgin, IL 60123
Minnesota Location:
(651) 758-7867
330 Mill Bay South Suite 1511
Afton, MN 55001
PumpSupplyInc.com
Advertisement
Table of Contents
Related Manuals for EBARA PSI DLFU
Summary of Contents for EBARA PSI DLFU
- Page 1 MN - (651) 758-7867 Submersible Wastewater, Sewage Pump Model DLFU Model DLFMU Model DLKFU Model DLKFMU EBARA Pumps Americas Corporation Operating Instructions, Installation & Maintenance Manual Illinois Location: (847) 841-7867 860 Church Rd Elgin, IL 60123 Minnesota Location: (651) 758-7867...
-
Page 2: Table Of Contents
Design of this EBARA pump is based on superior engineering and long experience. To prevent trouble and provide satisfactory operation and long life, it is important to understand the EBARA pump thoroughly by careful study of this manual. If any questions arise regarding this manual, please direct them to EBARA Pumps Americas Corporation. -
Page 3: Pump Checks
IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 DLFU/DLFMU/DLKFU/DLKFMU EBARA Submersible Sewage Pumps Operating, Installation, and Maintenance Pump Checks 2. Precautions when operation is suspended: 1. Check the following points upon receipt of your pump:... -
Page 4: Pump Installation
IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 DLFU/DLFMU/DLKFU/DLKFMU EBARA Submersible Sewage Pumps Operating, Installation, and Maintenance Installation 2. Pump Installation WARNING When lifting the pump, use appropriate crane (or hoist) and lift system, check position and tightness of lift sys- tem so that weight of the pump is not UNBALANCED. - Page 5 IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 DLFU/DLFMU/DLKFU/DLKFMU EBARA Submersible Sewage Pumps Operating, Installation, and Maintenance Installation 3. Electrical Wiring: WARNING Check that the power is locked off and disconnected before working on pump. All electrical work should be performed by a qualified electrician and all national and local electrical codes must be observed.
- Page 6 IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 DLFU/DLFMU/DLKFU/DLKFMU EBARA Submersible Sewage Pumps Operating, Installation, and Maintenance Installation – Electrical Wiring Output 7.5 to 10HP 208/230V G – GRN – RED – T – T –...
- Page 7 IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 DLFU/DLFMU/DLKFU/DLKFMU EBARA Submersible Sewage Pumps Operating, Installation, and Maintenance Installation – Electrical Wiring Output 15 to 30HP 208/230V G – GRN – RED – T – T –...
- Page 8 IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 DLFU/DLFMU EBARA Submersible Sewage Pumps Operating, Installation, and Maintenance Installation – Electrical Wiring Output 40 to 60HP 208/230V G – GRN – RED – T – T –...
-
Page 9: Operation
Normal maintenance should be done by qualified personnel. Check pressure, output, voltage, current, vibration, and other specifications. Unusual readings may indicate a problem requiring immediate service. Contact your local EBARA Pumps Americas Corporation representative as soon as possible. EBARA Pumps Americas Corporation www.pumpsebara.com... - Page 10 IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 DLFU/DLFMU/DLKFU/DLKFMU EBARA Submersible Sewage Pumps Operating, Installation, and Maintenance Maintenance and Service 1. Daily inspections: (1) Check current and ammeter fluctuation daily. If ammeter fluctuation is great, even though within the limits of pump rating, foreign matter may be clogging the pump.
-
Page 11: Troubleshooting
IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 DLFU/DLFMU/DLKFU/DLKFMU EBARA Submersible Sewage Pumps Operating, Installation, and Maintenance Troubleshooting CAUTION All service should be done by factory trained or qualified personnel only. Trouble Cause Remedy Does not start. - Page 12 IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 DLFU/DLFMU/DLKFU/DLKFMU EBARA Submersible Sewage Pumps Operating, Installation, and Maintenance 2 to 5HP 001 111 PART ASTM, AISI NO. FOR PART ASTM, AISI NO. FOR PART NAME MATERIAL...
- Page 13 IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 DLFU/DLFMU/DLKFU/DLKFMU EBARA Submersible Sewage Pumps Operating, Installation, and Maintenance to 10HP PART ASTM, AISI NO. FOR PART ASTM, AISI NO. FOR PART NAME MATERIAL PART NAME MATERIAL...
- Page 14 IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 DLFU/DLFMU/DLKFU/DLKFMU EBARA Submersible Sewage Pumps Operating, Installation, and Maintenance 15 to 30HP PART ASTM, AISI NO. FOR PART ASTM, AISI NO. FOR PART NAME MATERIAL PART NAME...
- Page 15 IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 DLFU/DLFMU EBARA Submersible Sewage Pumps Operating, Installation, and Maintenance 40 to 60HP 100DLFU PART ASTM, AISI NO. FOR PART ASTM, AISI NO. FOR PART NAME MATERIAL PART NAME...
- Page 16 IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 DLFU/DLFMU EBARA Submersible Sewage Pumps Operating, Installation, and Maintenance 40 to 60HP 150DLFU 200DLFU 250DLFU 300DLFU PART ASTM, AISI NO. FOR PART ASTM, AISI NO. FOR PART NAME...
-
Page 17: Thermal Protector
IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 DLFU/DLFMU/DLKFU/DLKFMU EBARA Submersible Sewage Pumps Operating, Installation, and Maintenance Maintenance and Service 6. Disassembly and Assembly: CAUTION All service should be done by factory trained or qualified personnel only. -
Page 18: Leakage Detector
IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 DLFU/DLFMU/DLKFU/DLKFMU EBARA Submersible Sewage Pumps Operating, Installation, and Maintenance Leakage Detector 1. Construction: Each switch has a magnet-containing float which senses the liquid level and magnetically actuates a dry reed switch encapsulated within a stem. -
Page 19: Warranty
IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 DLFU/DLFMU/DLKFU/DLKFMU EBARA Submersible Sewage Pumps Operating, Installation, and Maintenance Limited Warranty 1. All specifications subject to change without notice 2. Limited warranty: EIC warrants for a period of twelve months from the date of initial startup or eighteen months from the date of shipment, whichever shall first occur (the "Warranty Period") the EIC Products to be delivered hereunder against defects in material... - Page 20 IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 Illinois Location: (847) 841-7867 860 Church Rd Elgin, IL 60123 Minnesota Location: (651) 758-7867 330 Mill Bay South Suite 1511 Afton, MN 55001 PumpSupplyInc.com EPAC DL(K)FU 1216 IL - (847) 841-7867 PumpSupplyInc.com MN - (651) 758-7867...
