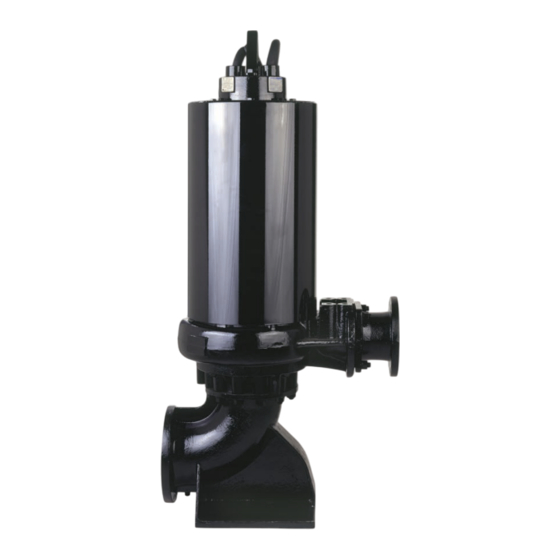

Submersible Dry Pit Non-clog Water/Wastewater Pump
EBARA Pumps Americas Corporation
IL - (847) 841-7867
Distributed by Pump Supply Inc
Operating Instructions, Installation & Maintenance Manual
Illinois Location:
(847) 841-7867
860 Church Rd Elgin, IL 60123
Minnesota Location:
(651) 758-7867
330 Mill Bay South Suite 1511
Afton, MN 55001
PumpSupplyInc.com
PumpSupplyInc.com
MN - (651) 758-7867
Model DDLFU
Model DDLFMU
MN - (651) 758-7867
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EBARA PSI DDLFU
Summary of Contents for EBARA PSI DDLFU
- Page 1 Distributed by Pump Supply Inc MN - (651) 758-7867 Submersible Dry Pit Non-clog Water/Wastewater Pump Model DDLFU Model DDLFMU Operating Instructions, Installation & Maintenance Manual EBARA Pumps Americas Corporation Illinois Location: (847) 841-7867 860 Church Rd Elgin, IL 60123 Minnesota Location: (651) 758-7867...
-
Page 2: Table Of Contents
Design of this EBARA pump is based on superior engineering and long experience. To prevent trouble and provide satisfactory operation and long life, it is important to understand the EBARA pump thoroughly by careful study of this manual. If any questions arise regarding this manual, please direct them to EBARA PUMPS AMERICAS CORPORATION. -
Page 3: Pump Checks
IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 DDLFU/DDLFMU EBARA Submersible Sewage Pumps Instruction Manual Pump Checks 1. Check the following points upon receipt of 2. Precautions when operation is suspended: your pump: (1) If operation is to be suspended for 30 days with the pump... -
Page 4: Pump Installation
IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 DDLFU/DDLFMU EBARA Submersible Sewage Pumps Instruction Manual Installation 2. Pump Installation WARNING When lifting the pump, use appropriate crane (or hoist) and lift system, check position and tightness of lift system so that weight of the pump is not UNBALANCED. - Page 5 IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 DDLFU/DDLFMU EBARA Submersible Sewage Pumps Instruction Manual Installation 3. Electrical Wiring: WARNING Check that the power is locked off and disconnected before working on pump. All electrical work should be performed by a qualified electrician and all national and local electrical codes must be observed.
- Page 6 IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 DDLFU/DDLFMU EBARA Submersible Sewage Pumps Instruction Manual Installation – Electrical Wiring Output 40 to 60HP 208/230V G – GRN – RED – T – T – WHT – T –...
-
Page 7: Operation
Normal maintenance should be done by qualified personnel. Check pressure, output, voltage, current, vibration, and other specifications. Unusual readings may indicate a problem requiring immediate service. Contact your local EBARA PUMPS AMERICAS CORPORATION representative as soon as possible. rev. 04/19 IL - (847) 841-7867 PumpSupplyInc.com... - Page 8 IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 DDLFU/DDLFMU EBARA Submersible Sewage Pumps Instruction Manual Maintenance and Service 1. Daily inspections: (1) Check current and ammeter fluctuation daily. If ammeter fluctuation is great, even though within the limits of pump rating, foreign matter may be clogging the pump.
-
Page 9: Troubleshooting
IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 DDLFU/DDLFMU EBARA Submersible Sewage Pumps Instruction Manual Troubleshooting CAUTION All service should be done by factory trained or qualified personnel only. Trouble Cause Remedy Does not start. -
Page 10: Sectional View
IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 DDLFU/DDLFMU EBARA Submersible Sewage Pumps Instruction Manual Sectional View 15 to 30HP PART ASTM, AISI NO. FOR PART ASTM, AISI NO. FOR PART NAME MATERIAL PART NAME... - Page 11 IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 DDLFU/DDLFMU EBARA Submersible Sewage Pumps Instruction Manual Sectional View 40 to 60HP 150 × 100DDLFU PART ASTM, AISI NO. FOR PART ASTM, AISI NO. FOR PART NAME...
- Page 12 IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 DDLFU/DDLFMU EBARA Submersible Sewage Pumps Instruction Manual Sectional View 40 to 60HP 200 × 150DDLFU 200 × 200DDLFU PART ASTM, AISI NO. FOR PART ASTM, AISI NO. FOR...
- Page 13 IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 DDLFU/DDLFMU EBARA Submersible Sewage Pumps Instruction Manual Sectional View 40 to 60HP 250 × 250DDLFU 300 × 300DDLFU PART ASTM, AISI NO. FOR PART ASTM, AISI NO. FOR...
-
Page 14: Thermal Protector
IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 DDLFU/DDLFMU EBARA Submersible Sewage Pumps Instruction Manual Maintenance and Service 6. Disassembly and Assembly: CAUTION All service should be done by factory trained or qualified personnel only. -
Page 15: Leakage Detector
IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 DDLFU/DDLFMU EBARA Submersible Sewage Pumps Instruction Manual Leakage Detector 1. Construction: Each switch has a magnet-containing float which senses the liquid level and magnetically actuates a dry reed switch encapsulated within a stem. -
Page 16: Warranty
IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 DDLFU/DDLFMU EBARA Submersible Sewage Pumps Instruction Manual Limited Warranty 1. All specifications subject to change without notice 2. Limited warranty: EPAC warrants for a period of twelve months from the date of initial startup or eighteen months from the date of shipment, whichever shall first occur (the "Warranty Period") the EPAC Products to be delivered hereunder against... - Page 17 IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 Illinois Location: (847) 841-7867 860 Church Rd Elgin, IL 60123 Minnesota Location: (651) 758-7867 330 Mill Bay South Suite 1511 Afton, MN 55001 PumpSupplyInc.com EPAC_DDLFU 0419 IL - (847) 841-7867 PumpSupplyInc.com MN - (651) 758-7867...
