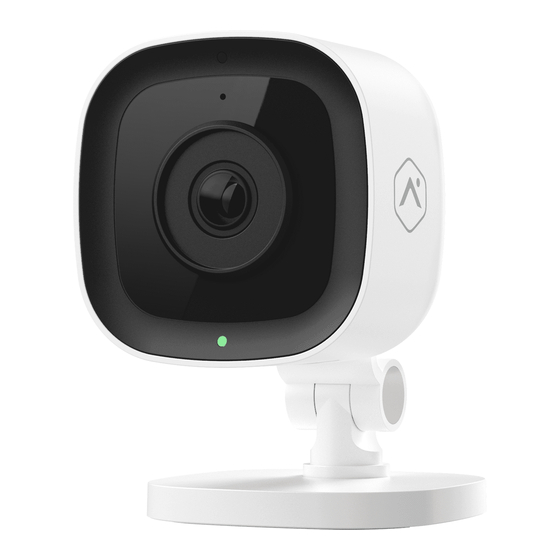

Alarm.Com ADC-V523 Quick Start Manual

1080o indoor wi-fi camera
Hide thumbs Also See for ADC-V523:

Advertisement

Available languages

Available languages

Quick Links

Download this manual
1080p Indoor Wi-Fi Camera (ADC-V523/523X) - Quick Start Guide
English
English
Pre-installation checklist
• ADC-V523/523X camera (included).
• AC power adapter (included).
• Wireless (2.4 or 5 GHz) connection to broadband (Cable, DSL, or Fiber Optic) internet. For information about
bandwidth requirements, see
devices?.
• A computer, tablet, or smartphone with Wi-Fi is required if the router does not have the Wi-Fi Protected Setup
(WPS) feature.
There are three options for connecting the ADC-V523/523X to the Internet: Access Point (AP) mode, Wi-Fi Protected
Setup (WPS) mode, and Ethernet mode. Use WPS mode if you have easy access to the customer's router and the
router has the WPS feature enabled.
Note: Some Internet Service Providers disable the WPS feature on customer routers. AP mode is the most reliable
wireless method for installing this device.
In the box
• ADC-V523/523X camera
• Mounting plate
• Power supply (10 feet)
• User guide
• Wall anchors & screws (x2)
For a detailed list of this video device's features, see
Overview
1. LED indicator
2. Mounting plate
3. Reset button
https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Video_Devices/1080p_Indoor_Wi-Fi_Camera_ADC-V52...
What are the internet service and bandwidth requirements for Alarm.com video
1080p Outdoor Wi-Fi Camera (ADC-V723) - Data
Sheet.
Updated: Tue, 08 Oct 2024 16:21:33 GMT
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ADC-V523 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alarm.Com ADC-V523

Summary of Contents for Alarm.Com ADC-V523

  • Page 1 • A computer, tablet, or smartphone with Wi-Fi is required if the router does not have the Wi-Fi Protected Setup (WPS) feature. There are three options for connecting the ADC-V523/523X to the Internet: Access Point (AP) mode, Wi-Fi Protected Setup (WPS) mode, and Ethernet mode. Use WPS mode if you have easy access to the customer’s router and the router has the WPS feature enabled.
  • Page 2 4. MAC address + QR code 5. SD card door 6. Base plate https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Video_Devices/1080p_Indoor_Wi-Fi_Camera_ADC-V52… Updated: Tue, 08 Oct 2024 16:21:33 GMT...
  • Page 3 Updated: Tue, 08 Oct 2024 16:21:33 GMT...

  • Page 4: Installation

    LED begins to flash white at 6 seconds. 3. On a Wi-Fi enabled device, connect to the wireless network ADC-V523/523X (XX:XX:XX) where XX:XX:XX is the last six characters of the ADC-V523/523X’s MAC address, which is located on the bottom of the camera or on the packaging.
  • Page 5 4. Add the device to the account by selecting the account in the Partner MobileTech app, by using the Alarm.com app Video Installation Wizard, or by using a web browser and entering the following web address: www.alarm.com/addcamera.

  • Page 6: Troubleshooting

    Factory reset an ADC-V523/523X to its default settings. Important: If the camera was previously installed to a different Alarm.com account, it will need to be deleted before it can be installed again. Questions? •...
  • Page 7 3. Botón de Reinicio 4. Dirección MAC + código QR 5. Puerta de la tarjeta SD 6. Placa base https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Video_Devices/1080p_Indoor_Wi-Fi_Camera_ADC-V52… Updated: Tue, 08 Oct 2024 16:21:33 GMT...
  • Page 8 Updated: Tue, 08 Oct 2024 16:21:33 GMT...

  • Page 9: Instalación

    5. Agregue el dispositivo a la cuenta seleccionando la cuenta en MobileTech o utilizando un navegador web e ingresando al siguiente URL: www.alarm.com/ addcamera (necesitará el nombre de usuario del cliente y contraseña si utiliza el sitio web del cliente).
  • Page 10 URL: www.alarm.com/addcamera (necesitará el nombre de usuario del cliente y contraseña si utiliza el sitio web del cliente). 5. Seleccione la cámara de la lista de video o ingrese su dirección MAC para comenzar a agregar la cámara. La dirección MAC de la cámara se encuentra en la parte inferior de la cámara o en el empaque.
  • Page 11 Guía de referencia de LED https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Video_Devices/1080p_Indoor_Wi-Fi_Camera_ADC-V52… Updated: Tue, 08 Oct 2024 16:21:33 GMT...
  • Page 12 Patrón de LED Descripción Apagado Apagado Verde continuo Conectado a Alarm.com Verde intermitente Conexión de red local Verde intermitente + rojo Cámara reiniciándose a configuración de fábrica Rojo continuo Sin conexión local o a internet Rojo intermitente Encendido, cámara reiniciándose...

  • Page 13: Resolución De Problemas

    LED parpadee verde y rojo (aproximadamente 15 segundos) y luego suelte el botón. La cámara se reiniciará con los valores predeterminados de fábrica. Si la cámara se instaló previamente en una cuenta de Alarm.com, será necesario eliminarla antes de poder volver a instalarla.
  • Page 14 2. La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada. ADC-V523 IFT – 008 – 2015 1. IFT #: JOALAD24-05121 2.
