Wave 2PM (EU)
Note
: The product line known as "
functionality of any devices. The only modification will be the use of the new name in all future documentation.

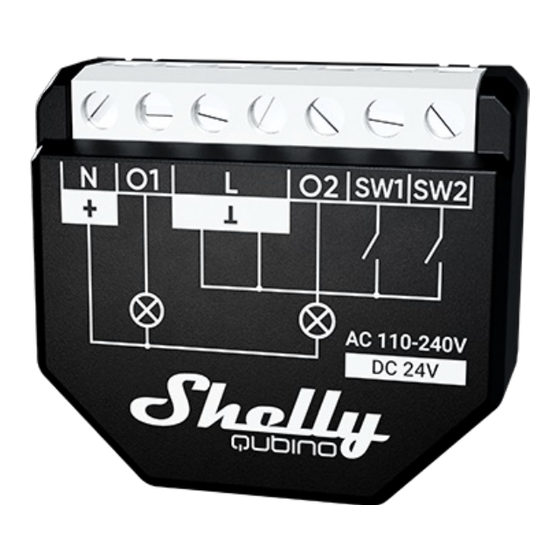

Device identification
Device name: Wave 2PM
EU Part number/Ordering Code: QNSW-002P16EU
USA Part number/Ordering Code: QNSW-002P16US
Z-Wave Product type ID: 0x0002
Z-Wave Product ID: 0x0081
Z-Wave Manufacturer: Shelly Europe Ltd.
Z-Wave Manufacturer ID: 0x0460
Terminology
Device - In this document, the term "Device" is used to refer to the Wave 2PM device.
Gateway - A Z-Wave® gateway, also referred to as a Z-Wave® controller, Z-Wave® main controller, Z-Wave® primary controller, or Z-Wave®
hub, etc., is a device that serves as a central hub for a Z-Wave® smart home network. The term "gateway" is used in this document.
S button - The Z-Wave® Service button, which is located on Z-Wave® devices and is used for various functions such as adding (inclusion),
removing (exclusion), and resetting the device to its factory default settings. The term "S button" is used in this document.
Short description
The Wave 2PM (Device) is a single product that enables remote control of two electrical devices such as bulbs, ceiling fans, and IR heaters. It
switches (on/off) two independent loads and measures their power consumption separately and in total. The Device is compatible with switches
(default) and push-buttons.
Switch connected to input terminal SW (SW1)
If the SW (SW1) is configured as a switch (default), each toggle of the switch will change the output state O (O1) to the opposite state - ON, OFF,
/
Shelly Qubino Wave
" will now be referred to as "
1 / 8
Shelly Wave
". This name change will not impact the
