MTX150x Lite User Manual

Multi-Gigabit Internet Services & Ethernet Services Speed

Test Set

P/N D07-00-160P Rev. A01

Table of Contents

Need help?

Do you have a question about the MTX150x Lite and is the answer not in the manual?

Questions and answers

Summary of Contents for VeEX MTX150x Lite

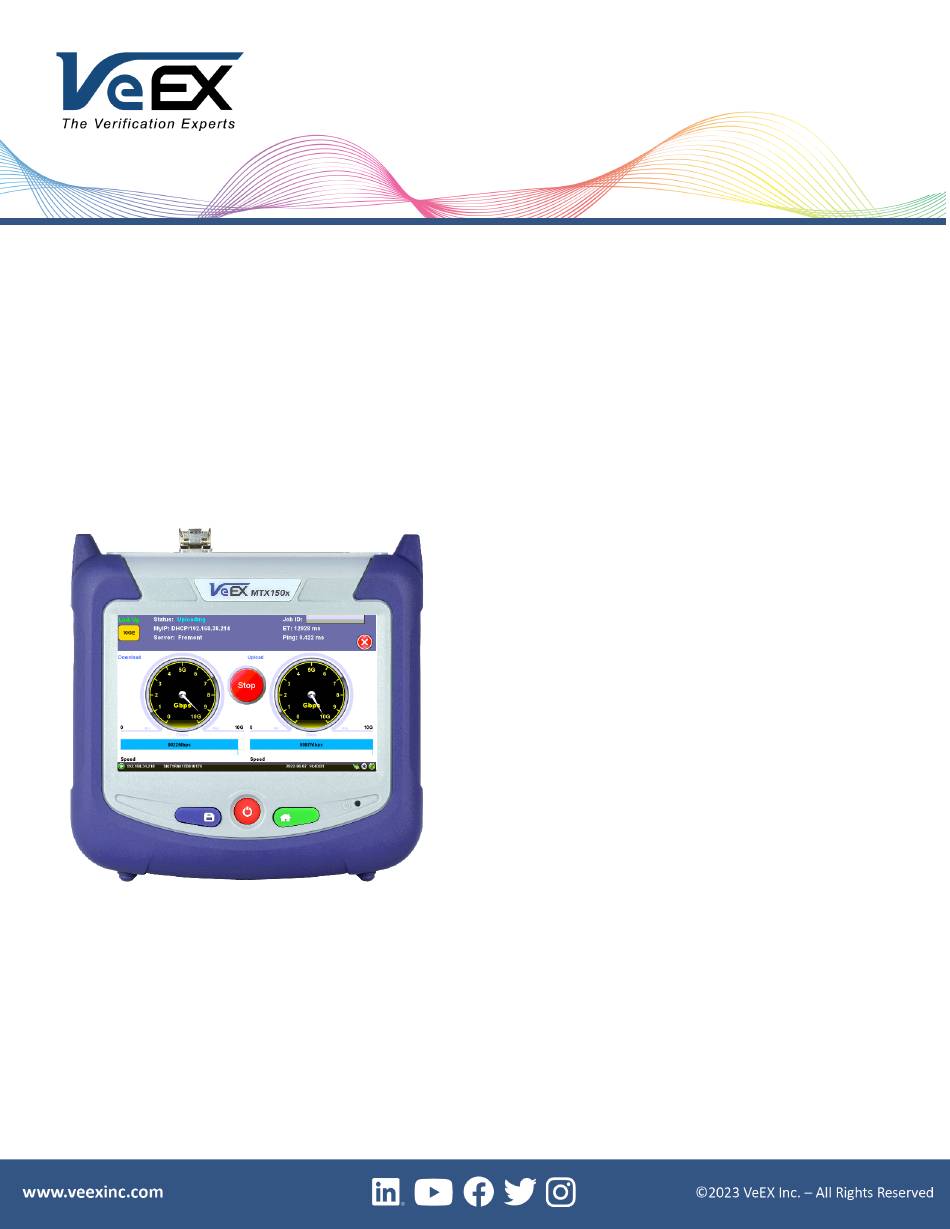

Page 1 MTX150x Lite User Manual Multi-Gigabit Internet Services & Ethernet Services Speed Test Set P/N D07-00-160P Rev. A01...
Page 2 Please direct all questions to your local VeEX® Sales Office, Representative, or Distributor. Or, contact VeEX tech- nical support at www.veexinc.com. No part of this user manual may be reproduced, translated into a foreign language, or be transmitted electronically without prior agreement and written consent of VeEX Incorporated as governed by International copyright laws.
Page 3: Table Of Contents
Home Menu and Navigation Special Functions Hard Buttons Soft Buttons Touch-Screen Display Platform Screen Icons LEDs Ethernet Single and Dual Port LED Status Lights Mode/Port Selection Ethernet Setup Ports IP Connection Setup Table of © VeEX Inc. All Rights Reserved. Contents...
Page 4 ARP Wiz Ping Layer 4+ Applications Configuration V-PERF Server/Client - Unidirectional Configuration and Results Bi-Directional Configuration and Results (VeEX Enhanced Testing Methodology Implementation) V-TEST Run a Speed Test Changing Test Modes (Copper ↔ Fiber) Full V-TEST Server Selection Modes Speed Test Modes...
Page 5 Register a test set (establish IP connection) Upload Results System Utilities Overview System Information Global Settings Backlight Battery Status Standby Mode Touch Screen Calibration Date and Time Help Software Update Process Certifications and Declarations Table of © VeEX Inc. All Rights Reserved. Contents...
Page 6 Server Selection Modes Speed Test Modes Step 4: Save Results Step 5: View Results and Generate Test Reports Other Test Features Related Topics What Does Layer4+ Refer To? How Does Speedtest.net Works? Table of © VeEX Inc. All Rights Reserved. Contents...
Page 7: General Information
VeEX Inc., and to use it solely as intended and described in this manual. The purchaser is prohibited from copying, reverse engineering, decompiling, or disassembling the software. ...
Page 8: Warranty
For warranty information on VeEX Inc. products, go to www.veexinc.com. To activate the warranty, please register your production at www.veexinc.com/Support/ProductRegistration. Patent Information VeEX Inc. product hardware and software may be protected by one or more patents on file with the United States Patent Office. Documentation Conventions...
Page 9: Safety Information
Do not operate the instrument in the presence of flammable gases or fumes or any other combustible environment. VeEX Inc. assumes no liability for the customer's failure to comply with safety precautions and requirements. Lithium-ion Battery Precautions Lithium-ion (Li-ion) battery packs are compact and offer high capacity and autonomy, which make them ideal for demanding applications, like providing long lasting power to portable test equipment.
Page 10: Optical Connectors
3. Never use a fiber microscope to check the optical connectors when the laser source is active. Electrical Connectors Telephone lines may carry dangerous voltage. Always connect the electrical test ports to known test interfaces which carry low level signals. © VeEX Inc. All Rights Reserved. Safety Information...
Page 11: Introduction

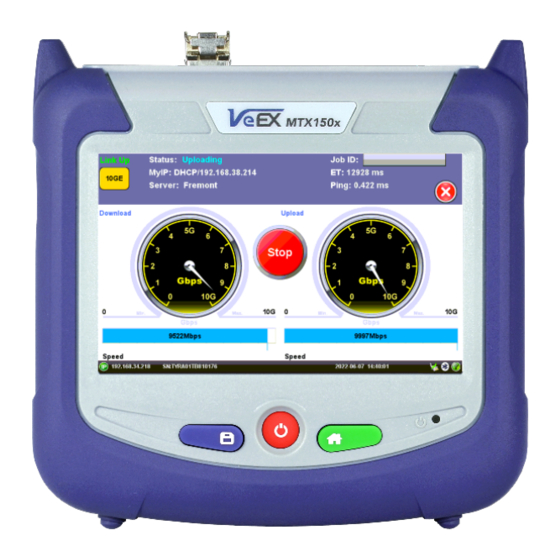

Introduction The MTX150x Lite is an optimized Quality of Experience (QoE) test solution (Layer 4+ applications) for multi- Gigabit services from 100 Mbps to 10 Gbps on copper and fiber interfaces. This rugged and ultra-portable hand-held test set helps field technicians install, verify, maintain and troubleshoot high-speed Residential and Business services, Internet Access and other packet- base services up to 10 Gbps.
Page 12: Basic Operation
Basic Operation Chassis Overview When powered on the test set automatically loads the V-TEST (VeEX Internet Speed Test) application. See "V-TEST" on page 57 for more information on running a V-TEST. Basic Operation © VeEX Inc. All Rights Reserved.
Page 13: Connector Panel
Good quality Cat6a and Cat7 patch-cord cables are required for devices supporting 2.5GE (2.5GBASE-T), 5GE (5GBASE-T) and/or 10GE (10GBASE-T). Using lower quality or non-certified for Cat6a or Cat7 cables will produce lower results and limit max- imum data rate. © VeEX Inc. All Rights Reserved. Basic Operation...
Page 14 Although most common optical transceivers are considered safe, please follow standard eye safety procedures and common sense (e.g., avoid using optical scopes or looking directly at active connectors). Basic Operation © VeEX Inc. All Rights Reserved.
Page 15: Hard Buttons And Interfaces
C. Home: Returns the screen to the home menu. Pressing the Home key for 3 seconds puts the unit in sleep mode. Once in Sleep Mode, press the Home key for 3 seconds to return to normal operation. More about sleep mode This is not full power shutdown. © VeEX Inc. All Rights Reserved. Basic Operation...
Page 16 Right side + Save: Saves the screen (bmp) Right side + Home: Hibernates device More about side buttons Side buttons on the left and right of the unit can reveal menus or other functions depending on the unit Basic Operation © VeEX Inc. All Rights Reserved.
Page 17 E. Micro-B USB: Use an USB-A OTG cable (optional with purchase) to connect a USB to the micro-B USB port. The port supports memory drives and USB add-on devices such as fiberscopes. An optional Micro-B OTG to Ethernet adapter is also available for network connection. (Only VeEX approved OTG to Ethernet Cables can be used.) G.
Page 18: Home Menu And Navigation
Global Settings, Backlight, Date/Time, default owner information for test reports. See "System Util- ities Overview" on page 146. F: Connection Status Displays the status of external connections, i.e. Bluetooth, WiFi, power supply. Basic Operation © VeEX Inc. All Rights Reserved.
Page 19: Special Functions
While in Standby mode, quickly press to see the current standby time and remaining battery charge. Press the button again for three seconds to bring the test set back to full operation. © VeEX Inc. All Rights Reserved. Basic Operation...
Page 20 Software Install. Backing up all data to a USB memory stick is recommended. To back up to USB, go to >Files >Saved and tap . Refer to "Working with Saved Results, Pro- files, Images" on page 71 for more details. Basic Operation © VeEX Inc. All Rights Reserved.
Page 21: Soft Buttons
Soft Buttons On screen soft buttons are used to control tests, alarms and error settings. Refer to the chart below for a description of each soft button. Testing, Alarm and Error Soft Buttons © VeEX Inc. All Rights Reserved. Basic Operation...
Page 22: Touch-Screen Display
Clean the surface of the touch screen using a soft cloth and mild detergent only. Do not use alcohol. "Touch Screen Calibration" on page 156 for instructions on how to recalibrate the touch-screen. Basic Operation © VeEX Inc. All Rights Reserved.
Page 23: Platform Screen Icons
Fiberscope: Indicates that a fiberscope is connected to the unit. Tap the icon to go to the Fiber- scope application. OTDR Viewer: Analyzes standard OTDR .SOR files created by supported VeEX test sets and controls the OPX-BOXe OTDR. © VeEX Inc. All Rights Reserved.
Page 24 FX40/45/48 Viewer: Controls FX40/45/48 optical test loss test sets and analyzes standard OPM files. PON: Access Advanced PON tools Flow: Access the Flow feature to perform and compile multiple tests into a single job report. Basic Operation © VeEX Inc. All Rights Reserved.
Page 25: Leds
Test Ports: P1 (port 1) and P2 (port 2) can be used to switch views in dual port mode. The color indicates the alarm status: Green: No error or alarm is present Red: An error or alarm condition is currently detected © VeEX Inc. All Rights Reserved. Basic Operation...
Page 26 Yellow: An error or alarm was detected during the measurement interval but is no longer present or active Grey: Status not applicable or the test has not begun yet For test modes that support dual ports, P1 and P2 indicates the port in operation. Basic Operation © VeEX Inc. All Rights Reserved.
Page 27: Mode/Port Selection
. Tap on a technology group then select a test interface. Test interfaces requiring laser activation will indicate the active test port when the laser is turned on. In the example below, the 10G Ethernet port is active. © VeEX Inc. All Rights Reserved. Basic Operation...
Page 29: Ethernet
Errors and Alarms (test results are not affected). Ports Port setup or test interface configurations are accessed via the Setup menu located on the Home page. The available configuration settings depend on the interface selected in the Test Mode selection. Ethernet © VeEX Inc. All Rights Reserved.
Page 30 When flow control is Off, the test set ignores all incoming pause frames from the link partner and continues transmitting at the configured transmit rate Clock Offset (1000 Mbps only): The frequency may be offset in parts per million © VeEX Inc. All Rights Reserved. Ethernet...
Page 31 The Status tab lists current port settings. Please note that the Status tab is only available if a fiber port option is selected from the Test Port Selection menu. 10 GE Port 10GE Mode: LAN or WAN WIS Mode (only available in WAN mode): SDH or SONET Flow Control: Enable chosen as default option Ethernet © VeEX Inc. All Rights Reserved.
Page 32 Circular keeps the latest entries. The oldest entry will be deleted so that the new event can be added. Blocked stops recording new events after 1000 entries. The latest entries will not be logged. © VeEX Inc. All Rights Reserved. Ethernet...
Page 33 ARP table aware of the test set's IP address. This setting is useful for long-term L3 routed testing. Results Auto Save: ON or OFF. If set to ON, results will be saved automatically. Ethernet © VeEX Inc. All Rights Reserved.
Page 34: Ip Connection
ID: VLAN ID. Enter value 0 to 4095. Pri: VLAN priority 0 to 7. DNS: Selecting Manual DNS opens another menu. Select from Off, Primary, or Primary & Sec- ondary. Enter the Primary and/or Secondary DNS if required. © VeEX Inc. All Rights Reserved.
Page 35 Gateway and DNS: Enable/Disable. Enables entering the Gateway and DNS. VLAN: Off, 1 Tag, 2 Tags. For each VLAN tag, enter the following: ID: VLAN ID. Enter value 0 to 4095. Pri: VLAN priority 0 to 7. © VeEX Inc. All Rights Reserved.
Page 36: Status
IP: PASS indicates that the IP address assigned has been verified to be unique in the network. Gateway: PASS indicates that the gateway IP address is valid. DNS: PASS indicates that the DNS IP address is valid. © VeEX Inc. All Rights Reserved.
Page 37: Trace Route
Time Out: Enter the maximum time allowed between an ICMP echo and response at each hop. Max Hop: Enter the maximum number of network devices the packet is allowed to transit. Once the parameters are configured, press Start to begin the test. © VeEX Inc. All Rights Reserved.
Page 38 Hop: Order of the routers on the route TTL: Time to reach each router on the route Address: Address of each router on the route If there is no response from a particular hop, an asterisk will be displayed. © VeEX Inc. All Rights Reserved.
Page 39: Arp Wiz
Profile: Default, Delete, Save, or Save As... Start IP: Starting IP Address End IP: Ending IP Address Time Out(s): Range from 1-99 seconds. Input using the numeric keypad. ARP Wiz Setup © VeEX Inc. All Rights Reserved.
Page 40 IP address, a FAILED status is displayed. ARP Wiz uses the ARP protocol and can only work within the same subnet as the IP address provided to the test set in IP Status. ARP Wiz Result © VeEX Inc. All Rights Reserved.
Page 41: Ping
Time Out: Time-to-Live (TTL) in milliseconds. Enter the maximum time allowed (in ms, up to 99999 ms) between an ICMP ping and echo response. Once the parameters are configured, press Start to begin the test. © VeEX Inc. All Rights Reserved.
Page 42 Current: Current time for a Ping request to be answered Average: Average time recorded for a Ping request to be answered Max: Maximum time recorded for a Ping request to be answered Min: Minimum time recorded for a Ping request to be answered. © VeEX Inc. All Rights Reserved.
Page 43: Layer 4+ Applications
Number of Connections Established Download Time File Transfer Size Retransmits Transmission Control protocol is the most widely used transport layer protocol. TCP is used by most applic- ation protocols: HTTP, FTP, Telnet. It provides the following services: © VeEX Inc. All Rights Reserved.
Page 44 2. The Window size is the amount of outstanding data that can be sent before acknowledgment is received. 3. If data is lost, the window size is decreased and less data is sent prior to acknowledgment. © VeEX Inc. All Rights Reserved.
Page 45 Step 3 Bottleneck Bandwidth (BB) Search: For this step, a Layer2/3 test can be done (RFC2544 or Y.1564) to determine the maximum through- put rate supported by the network. © VeEX Inc. All Rights Reserved.
Page 46 Transfer Time Ratio = Actual TCP Transfer Time / Ideal TCP Transfer Time Example of an ideal TCP transfer time based on a 1500 Bytes size MTU and 100MB file download © VeEX Inc. All Rights Reserved.
Page 47 RTT. A large RTT Buffer delay indicates that the network is experiencing congestion and that segments are being delayed. Buffer Delay = Average RTT – Baseline RTT/Average RTT x 100 © VeEX Inc. All Rights Reserved.
Page 48: Configuration
2. For testing on SFP ports, turn the laser on. 3. Tap the IP icon. Configure a static IP address for testing. If the environment supports DHCP, select DHCP from the IP Address menu, then tap Connect. © VeEX Inc. All Rights Reserved.
Page 49 Saving Test Results Test results can be saved to the File Server using the Save hard key. Results can be retrieved via USB drive or remotely using the Web UI. Refer to "File Manager" on page 70. © VeEX Inc. All Rights Reserved.
Page 50: V-Perf
Round Trip Time Measurement Configurable TCP Window Multi-Window size tests Measurements: TCP Throughput rate (min, max, average), Transfer file size and duration, Transfer time ratio, TCP Efficiency %, Buffer Delay % TCP Throughput Test Diagram © VeEX Inc. All Rights Reserved.
Page 51: Server/Client - Unidirectional Configuration And Results
2. Set the other test set as a Client for FTP Mode. On the bottom of the screen, go to Page 2 to con- figure the Throughput Test Mode type. MTU Search, Round Trip Time Search, Bottleneck Bandwidth, and Window Size options are also on Page © VeEX Inc. All Rights Reserved.
Page 52 3. Connect the two test sets to the Near End (NE). Press Start on the Client unit. Status: Global Client - Results - Status The Status tab displays test progress and pass/fail results for MTU Search, RTT Search, and TCP Test. © VeEX Inc. All Rights Reserved.
Page 53 Client - Results - Per Stream TCP Graphs Graphs compare the Expected TCP Upload Rate with the measured TCP rate for all tested window sizes. Graph display options can be modified in the following ways: © VeEX Inc. All Rights Reserved.
Page 54 TCP Status displays test progress and pass/fail results for RFC 6349 measurements identical to the Summary (Global Results) tab. TCP Graphs displays per stream graphs identical to the Graphs (Global Results) tab. Server Results The Status tab displays the Client IP and current test event. © VeEX Inc. All Rights Reserved.
Page 55 Server - Results - Status Summary Results The Summary tab displays information on the current session and the RFC-6349 key performance indicators. Summary results per stream are viewable in the Per Stream tab. Server Results - Summary © VeEX Inc. All Rights Reserved.
Page 56: Bi-Directional Configuration And Results (Veex Enhanced Testing Methodology Implementation)
Bi-Directional Configuration and Results (VeEX Enhanced Testing Methodology Implementation) The Bi-Directional TCP testing methodology is unique as it allows two separate tests to run simultaneously on the same link in different directions. Both Test Sets are actually configured as Client & Server at the same time, saving the time of having to run each direction separately.
Page 57: V-Test
The test set will take a few seconds to boot up, automatically start the V-TEST (VeEX Internet Speed Test) application, detect the link, auto-configure and get an IP address. The Basic V-Test defaults to use Ookla's speedtest.net servers for the speed test.
Page 58 4. Connect the test cable between the test set and the device under test, then select Speed Test from the menu and run the test. Basic V-TEST Press to run the Internet speed test. After pressing GO, the test set does the following: © VeEX Inc. All Rights Reserved.
Page 59 ISP and select one of these servers for testing. If no ISP-sponsored servers are found, then the test set would carry out its normal search for the fastest ping-response server. © VeEX Inc. All Rights Reserved.
Page 60: Full V-Test
More about Advanced V-TEST Modes Server Selection Modes Ookla® Speedtest® Speed Test Modes Auto Mode: This is the default and recommended mode, and it is also known as "Speedtest Powered" mode. It automatically selects © VeEX Inc. All Rights Reserved.
Page 61 (URL/IP, location, and ISP) are also provided. VeEX Managed – Perform internet speed tests by manually selecting servers from lists created and maintained by VeEX. These non-public lists are created for specific customers. The Update button is used to update the servers' list. Internet access is required to receive the server lists maintained by VeEX.
Page 62 FREMONT and server1 appearing in User Managed Starting a V-TEST Select a server from User Managed or VeEX Managed. Enabling Ping mode simultaneously runs a Ping test. Ping Response results will appear under the Results tab. Tap GO to initiate testing. The download test starts first, followed by the upload test. ...
Page 63 10GE: 10 Gbit/s, 10GBASE-T copper interface (RJ45 UTP) or 10GBASE- X optical interface (LC-UPC duplex) 5GE: 5 Gbit/s, 5GBASE-T copper interface (RJ45 UTP) or 5GBASE-X optical interface (LC-UPC duplex) © VeEX Inc. All Rights Reserved.
Page 64 1000T: 1 Gbit/s, 1000BASE-T copper interface (RJ45 UTP) 100T: 100 Mbit/s, 100BASE-T copper interface (RJ45 UTP) 10T: 10 Mbit/s, 10BASE-T copper interface (RJ45 UTP) FDX: Full Duplex HDX: Half Duplex UTP: Unshielded Twisted (copper) Pairs cable © VeEX Inc. All Rights Reserved.
Page 65: V-Ftp
5. Tap Files to open up the FTP file selection window and view all the files on the server. Select a file to transfer and tap Start to run the test. V-FTP - Setup - Download © VeEX Inc. All Rights Reserved.
Page 70: Results & Files
3. Select the desired results file to open the test report. To navigate the test results report, use the links in its Table of Contents and the right rocker switch to scroll Up and Down. © VeEX Inc. All Rights Reserved. Platform Functions...
Page 71: Working With Saved Results, Profiles, Images
At the top of the screen, tap the blue buttons for view options. Select columns to make visible. Displays all records. Search for specific file(s) using advanced search terms. Platform Functions © VeEX Inc. All Rights Reserved.
Page 72: Viewing And Managing Files
USB Memory Stick. The included On-The-Go (OTG) micro-B USB to USB- A adapter cable is required for the USB memory stick. Transfers selected test results, test profiles and screenshot files to a paired Bluetooth® smartphone, tablet or PC. © VeEX Inc. All Rights Reserved. Platform Functions...
Page 73: Enabling To Usb And From Usb Functions
3. After pairing the device, tap Send to export the selected files. Original files won’t be deleted from the test set. Each file is saved into it's own folder using the "MyVeEX" tree directory format. Platform Functions © VeEX Inc. All Rights Reserved.
Page 74: Exporting Results To Pdf
QR Code generation must be enabled on the test set and mobile device, or it can be launched later, from the File Manager by tapping on the QR icon. QR Result generation is only supported by some test applications. © VeEX Inc. All Rights Reserved. Platform Functions...
Page 75: Viewing Results On Phone
The top of the screen shows the device type, mode, serial number, and software version, and the date results were saved on the device. Export options appear at the bottom on the screen. Alternatively, tap the Menu drop-down menu to view the options. Platform Functions © VeEX Inc. All Rights Reserved.
Page 76 Creates a new project for results so multiple test results, from the same or different test sets, can be combined into a single job report. Opens knowledge base. Opens documentation resources for test set. © VeEX Inc. All Rights Reserved. Platform Functions...
Page 77: Usb Memory Browser
PC. If needed, use the micro-B USB to USB-A adapter to connect to the USB memory stick. Shows the test results, test profiles, protocol PCAP and screen shot files stored on the test set. Displays files on USB memory stick. Displays space used/available on internal SD card. Platform Functions © VeEX Inc. All Rights Reserved.
Page 78: Manage Internal Sd Card
File Manager to backup files to USB, then delete selected files. The Format function is exclusively a maintenance tool. Use ONLY when instructed by a VeEX Customer Care representative. It erases all the information stored in the test set! © VeEX Inc. All Rights Reserved.
Page 79 Only the Data partition is accessible to users, through the test set’s functions. Do not remove or reformat the SD Card outside of the test set. The SD card can only be accessed by opening the test set. Platform Functions © VeEX Inc. All Rights Reserved.
Page 80: Test Tools
DI-1000/DI-1000MPO/DI-3000 Digital Fiber Inspection Microscope Adapter Tips Guide. All wired fiber inspection scopes are powered via a USB Type-A connection with a host device or the VeEX Power Bank/WiFi Bridge. For host devices that have Micro-B or Micro-C input ports, USB Type A to Micro-B or Micro-C OTG dongle adapters are available as an add-on order from VeEX.
Page 81 When paired with a VeEX Optical Light Source (OLS) or as part of a VeEX Optical Loss Test Set (OLTS), which includes both, WaveID can be used to quickly test several wavelengths without having to adjust the OPM settings.
Page 82: Otdr Viewer
Since fibers are commonly placed in access, metro, and transport networks, having a companion add-on OTDR to inspect drop fiber reduces dependence on specialized fiber construction crews troubleshooting fiber related problems. Refer to the OPX-BOXe User Manual for further details about OTDR operations. © VeEX Inc. All Rights Reserved. Platform Functions...
Page 83: Fiber Scope
DI-1000/DI-1000MPO/DI-3000 Digital Fiber Inspection Microscope Adapter Tips Guide. All wired fiber inspection scopes are powered via a USB Type-A connection with a host device or the VeEX Power Bank/WiFi Bridge. For host devices that have Micro-B or Micro-C input ports, USB Type A to Micro-B or Micro-C OTG dongle adapters are available as an add-on order from VeEX.
Page 84 Please ensure the correct fiber connector type is used before inserting it into the test port or connector. Mismatched connector types will damage the optical end faces and the test set. © VeEX Inc. All Rights Reserved. Platform Functions...
Page 85 Focus Knob: a rotating dial that can be turned clockwise or counterclockwise to view clearer image. Make sure connector is properly seated in the adapter tip. USB Type A output: USB connector to plug into host power source to enable operation. Platform Functions © VeEX Inc. All Rights Reserved.
Page 86 DI-1000MPO Digital Fiber Inspection Microscope for Single and Multi-Fiber Connectors DI-1000MPO Digital Fiber Inspection Microscope for Single and Multi-Fiber Connectors WiFi support requires VeEX Power Bank/WiFi Bridge accessory and host device/test set has built-in WiFi capability. See the test set's data sheet on www.veexinc.com or contact...
Page 87 MPO fiber the logging actions are done on the fiberscope itself. Scoping an MPO-12 fiber can be done under a minute. Press New Group to create a new set of MPO images. MPO Group - Add Image Platform Functions © VeEX Inc. All Rights Reserved.
Page 88 In the below example, fiber #1 is on the right. MPO Group - Completed (PASS) To save MPO results, navigate to the Results tab once all fibers have been captured and press the Save but- ton. © VeEX Inc. All Rights Reserved. Platform Functions...
Page 89 Load. Tap each individual screenshot to view the individual MPO fibers. MPO results (Scope image appears on bottom right corner of the screen.) Fiberscope MPO endface test viewed in an HTML browser Platform Functions © VeEX Inc. All Rights Reserved.
Page 90 DI-3000 Wi-Fi Autofocus digital inspection scope WiFi support requires host device/test set has built-in WiFi capability. See the test set's data sheet on www.veexinc.com or contact VeEX Customer Care for more information. © VeEX Inc. All Rights Reserved. Platform Functions...
Page 91 Fiber Scope image view requires the Fiber Scope Expert option to be enabled on the chassis/platform except for the VS500 which can already include this option. This can be confirmed by viewing the device ID is either -1500 or -2500. Platform Functions © VeEX Inc. All Rights Reserved.
Page 92 (tip faced away). Remove a tip by rotating the locknut counterclockwise (tip faced away). With the correct tip fastened and secured, launch the Fiberizer application (PC, mobile, VeEX test set) and plug into an available USB interface or connect to the WiFi network.
Page 93 See the WiFi Wiz section for more information on setting up a WiFi Access Point if automatic scanning fails. The WiFi Access Point password is: "veex" plus the last six digits of the serial number of the DI-3000 to connect with e.g. "veexA00700", where the serial number is SN:LA-3KA00700.
Page 94 Results tab after finishing the fiber endface inspection. Autosave on Tap: On the Capture tab, tap the screen to automatically save the cap- tured image. “Tap screen to save” will appear to indicate that the feature is enabled. © VeEX Inc. All Rights Reserved. Platform Functions...
Page 95 Saved image files can be retrieved from File Manager or managed from the Results tab. Refer to "Working with Saved Results, Profiles, Images" on page 71 for more details. Fiber Scope Setup - Page 2 Platform Functions © VeEX Inc. All Rights Reserved.
Page 96 General: Encompasses standard SC, FC, ST, and other 2.5 mm ferrules. LC/APC and E2000/APC should not use general tip type. LC: Lucent connector (male). Use on all 1.25 mm connectors with ceramic (LC/MU con- nectors). © VeEX Inc. All Rights Reserved. Platform Functions...
Page 97 (extension) tips or handshaking. Initially, a blank screen will display. This is ideal for APC images. This is recom- mended when inspecting Angled bulkheads/couplers with Shake OFF. 4. Select the Capture tab. Platform Functions © VeEX Inc. All Rights Reserved.
Page 98 With a steady hand, the end face will be promptly autofocused and ready for capture. Initially, there is no screen shown until Resume is pressed. Real time video of the connector face. Red contours indicate scratches and defects. Fiber Scope Capture - Dots vs Rectangles © VeEX Inc. All Rights Reserved. Platform Functions...
Page 99 MPO mode: Turn ON when inspecting ribbon fibers (MPO/MPT connectors). Create a New Group for each MPO ribbon and Capture Fiber to save an image for each strand. When inspecting MPO/MPT connectors, it is recommended to set Auto Freeze and Shake to OFF. Platform Functions © VeEX Inc. All Rights Reserved.
Page 100 Page 2 displays all numeric results from defect and scratch events found for all four zones. These are used for the evaluation of the Pass/Fail criteria, according to the IEC 61300-3-35 standard. (Scratch requirements refer to width.) This table will also be included in the reports. © VeEX Inc. All Rights Reserved. Platform Functions...
Page 102 In the Result Files example above when choosing to retain the tree format, the highlighted 022- tst001 results file can be found in the following directory after exporting: >fx150build64_rc > sc-apc-m b01. © VeEX Inc. All Rights Reserved. Platform Functions...
Page 104 Desktop Plus PC software. For more information on viewing reports, see "File Manager" on page 70. Analysis Report (.jpg format) The test report can also be viewed in HTML format. Test Report viewed in an HTML browser © VeEX Inc. All Rights Reserved. Platform Functions...
Page 105 Fiberizer Cloud. The Project selection defines the project folder location on the Fiberizer Cloud account to which to save the res- ults. The default setting uploads to the global root folder. Platform Functions © VeEX Inc. All Rights Reserved.
Page 106 After pushing results to the Fiberizer Cloud project, check the Jobs folder to which the saved cable folder was uploaded. Use Fiberizer Cloud to create professional reports or serve as an online storage backup. The example below shows MPO results on Fiberizer Cloud. MPO Fiber View on Fiberizer Cloud © VeEX Inc. All Rights Reserved. Platform Functions...
Page 107: Optical Power Meter (Opm)
When paired with a VeEX Optical Light Source (OLS) or as part of a VeEX Optical Loss Test Set (OLTS), which includes both, WaveID can be used to quickly test several wavelengths without having to adjust the OPM settings.
Page 108 Connecting an External OLTS Device 1. Insert USB dongle into the test set's microUSB port and connect it to a VeEX Inc. supported Optical Light Test Set (OLTS) device before launching the application. 2. Power on the external meter. Power on the external meter. Tap Test Tools < OPM on the menu.
Page 109 OPM Menu Wavelength: Matches the calibrated wavelength to the signal being measured. Wave ID: Detects the incoming wavelength automatically from a supported VeEX Inc.OLS. Use when operating the OLS in continuous wave (CW) mode with or without Loop enabled. dB/dBm: Switches between dB and dBm measurement units. A Green dB button shows absolute power level in dBm.
Page 110 Mode: Designates the measurement specification built-in: PM1 (-70 to +10dBm), PM2 (-50 to +25dBm), or PM3 (-65 to +15dBm). For specific information on the PM1, PM2, and PM3 spe- cifications, see the platform's datasheet at www.veexinc.com. © VeEX Inc. All Rights Reserved. Platform Functions...
Page 111 1. Connect the OLS to the OPM port using a patch cord. 2. Turn on dB measurement by toggling the dB button to blue. 3. Select the measurement wavelength. If using a supported VeEX light source in CW mode, pressing "Wave ID" automatically selects the correct wavelength.
Page 112 1. If beginning testing, zero the meter by closing the dust cap and pressing the Zero button. 2. Insert the fiber being tested into the OPM port. 3. Select the measurement wavelength. If using a supported VeEX light source in CW mode, pressing "Wave ID" automatically selects the correct wavelength.
Page 113 4. Tap OK. The readings are saved to a file and the table resets. To remove results before saving, select the checkbox next to the reading(s), then tap Remove. After saving power or loss readings to a file, access the file in the Results tab. Platform Functions © VeEX Inc. All Rights Reserved.
Page 114 Fiberizer Cloud successfully. To push the results to Fiberizer Cloud, ensure con- nection to the network via Ethernet or WiFi, and then tap Modify>Settings to sync with Fiberizer Cloud. Then, tap Push to sync saved files to the cloud. © VeEX Inc. All Rights Reserved. Platform Functions...
Page 115 Export Flat to create a single filename using sub-directories to build a name. Save continuously: To autosave results at a specified interval (1 to 60 seconds). Use this option to check power drift. Platform Functions © VeEX Inc. All Rights Reserved.
Page 116: Web Browser
The built-in web browser uses the management port IP connection. An active IP connection can be established either through Ethernet or WiFi. The web browser defaults to VeEX's test website. Use the Web browser's nav- igation bar to enter the name of the website you wish to reach. Navigation capabilities may be limited.
Page 117: Lan & Connectivity
Ping or Trace Route test. An (optional) external USB OTG to 10/100BASE-T adapter is required for LAN connection. You can access the management port configuration on the LAN & Connectivity > LAN(OTG) menu. Platform Functions © VeEX Inc. All Rights Reserved.
Page 118: Setup
ON: If enabled, enter the IP address of the Gateway and DNS server in Static mode, or use the IP address provided by the DHCP server in DHCP mode If DNS is set to Primary or Primary & Secondary, a DNS IP is required in order to use the © VeEX Inc. All Rights Reserved. Platform Functions...
Page 119: Ip Connection Status
IP: PASS indicates that the IP address assigned has been verified to be unique in the network. Gateway: PASS indicates that the gateway IP address is valid. DNS: PASS indicates that the DNS IP address is valid. Platform Functions © VeEX Inc. All Rights Reserved.
Page 120: Ping Testing
Time Out: Time-to-Live (TTL) in milliseconds. Enter the maximum time allowed (in ms, up to 99999 ms) between an ICMP ping and echo response. Once the parameters are configured, press Start to begin the test. © VeEX Inc. All Rights Reserved. Platform Functions...
Page 121 Average: The average time recorded for a Ping request to be answered. Max: The maximum time recorded for a Ping request to be answered. Min: The minimum time recorded for a Ping request to be answered. Platform Functions © VeEX Inc. All Rights Reserved.
Page 122: Trace Route
Destination: Enter the IP address or URL of the network device to be detected Time Out: Enter the maximum time allowed between an ICMP echo and response at each hop Max Hop: Enter the maximum number of network devices the packet is allowed to transit © VeEX Inc. All Rights Reserved. Platform Functions...
Page 123 Hop: Order of the routers on the route TTL: Time to reach each router on the route Address: Address of each router on the route If there is no response from a particular hop, an asterisk will be displayed. Platform Functions © VeEX Inc. All Rights Reserved.
Page 124: Bluetooth/Wifi Wiz
Bluetooth connectivity, while a green icon indicates a successful Bluetooth connection. Bluetooth Adaptors - Compatibility Not all Bluetooth adaptors on the market are supported. Please use adaptors that have been tested and supplied by VeEX only to ensure compatibility and correct operation. Setup/Info Bluetooth details will be displayed including the MAC address of the device and the last 4 digits of the test set serial #.
Page 126 4 digits of the test set's serial number as shown in the Connection tab. 3. Once paired, click the Services button at the bottom of the screen to check the service attributes. To upload test results via Bluetooth, full data upload service will be required. © VeEX Inc. All Rights Reserved. Platform Functions...
Page 127: Wifi Wiz
Refer to the unit’s specification sheet for details. The WiFi Wiz function supports: WEP, WPA, WPA2 Encryption Scanning SSID broadcasting and report Signal Strength IP Connection and Ping Test Platform Functions © VeEX Inc. All Rights Reserved.
Page 128 Encryption Type: Supported encryption types include WEP, WPA, and WPA2. Password/Key: Security phrase or password necessary to access SSID and network. Tap the Password field to enter the AP password on the pop-up keypad. © VeEX Inc. All Rights Reserved. Platform Functions...
Page 129 Disc. AP upon successful connection and the Connect Net key will appear. WiFi Wiz - AP Encryption Settings Connect The Setup tab displays the Profile, ESSID, Encryption Type and Password. Platform Functions © VeEX Inc. All Rights Reserved.
Page 130 Connection Status ESSiD: Name connected to BSSiD: MAC address of wireless router/device connected to Channel: WiFi Channel # connected to Encryption: Encryption type Mode Signal: Radio signal level (dBm) Link quality score © VeEX Inc. All Rights Reserved. Platform Functions...
Page 131 After a successful connection to the Access Point, tap Connect IP to obtain an IP address and access the addi- tional IP tests like Ping, Trace Route etc. WiFi Wiz Connect IP Platform Functions © VeEX Inc. All Rights Reserved.
Page 132 IP Address: Displays the default or manually configured IP address range used by the AP Press Enable to enable AP Mode. After pressing enable, the test set will broadcast its SSID, which any WiFi cli- ent device can connect to. © VeEX Inc. All Rights Reserved. Platform Functions...
Page 133: Remote Access
The EZ Remote service provides public registration servers to help users and test sets establish remote sessions, without having to get IT departments involved. It is considered a convenient on-demand service, for quick/temporary collaboration tasks. It should not be used for long-term applications (VeEX offers other remote tools for long-term applications). Refer to "EZ Remote"...
Page 134: Remote Control (Screen Mirroring)
1. On the test set, select the Remote Access option and enter the following information: VNC Service: Enable or disable the remote access through remote web-browser clients run- ning on PCs, Macs or certain tablets. The web browser must support Java (tm) © VeEX Inc. All Rights Reserved. Platform Functions...
Page 135 2. In a web browser, enter the test set IP address. To locate the test set local IP address, refer to "WiFi Wiz" on page 127. 3. Click vnc-home.html and enter the Super/Regular password when prompted for a password. Use the buttons and icons on the right to navigate the test set remotely. Platform Functions © VeEX Inc. All Rights Reserved.
Page 136: Ez Remote
EZ Remote The EZ Remote functionality allows users to quickly and securely connect to VeEX test sets all over the world, without the need for VPN, port forwarding or public IP addresses. This VeEX hosted service and user interface take care of all the complex tasks required, and present users with a simple application. Connect online any- time anywhere with any computer, tablet or smartphone, using standard web browser clients for screen-shar- ing, remote control and access to test results.
Page 137 3. On the EZ Remote screen, set EZ Remote to Enable, confirm the URL is ezremote.veexinc.net (without www.), and tap on Apply to connect and establish a session with the EZ Remote server. Platform Functions © VeEX Inc. All Rights Reserved.
Page 138: Connect To The Remote Test Set From A Computer, Tablet Or Phone
Remote Platform Access to access information stored in the remote test set, such as Test Results, Profiles, User Manual, Screen Captures (screen shots), information about the test set (Home) and its local IP address. © VeEX Inc. All Rights Reserved. Platform Functions...
Page 139 Shortcut buttons are provided below the mirrored screen, allowing access to functions provided by physical buttons on the instrument, such as Settings, Home, Save Test results. Click or tap on the shortcut to activate it. Platform Functions © VeEX Inc. All Rights Reserved.
Page 140: Save Test Results
The Remote Platform Access tab provides links to access test results, test profiles, screen shots, the user manual and other information stored in the test set. After accessing the test set remotely, a tab will open up for each selection made, allowing for quick access to each function. © VeEX Inc. All Rights Reserved. Platform Functions...
Page 141 Download selected files to the local computer or convert them to PDF and download. To open a test results file, select it from the list and tap on View. Platform Functions © VeEX Inc. All Rights Reserved.
Page 142 Screen captures can be made using the Lock button (Ï) on the test set or from the remote computer, using the links provided or the respective F-key on the computer’s keyboard. The screen capture function can be enabled in >System Utilities>Global Settings>Save Settings. © VeEX Inc. All Rights Reserved. Platform Functions...
Page 143: R-Server
Use the R-Server option to manage test sets and store test results. Part of VeEX’s VeSion® centralized monitoring and management solutions, the R-Server Workflow and Asset Management system provides crucial tools to manage fleets of technicians, test equipment, standardized test profiles, thresholds, centralized test results collection, reporting, jobs/ticketing, and software update delivery to create coordinated and efficient disciplined workforce and test procedures.
Page 144: Register A Test Set (Establish Ip Connection)
2. Press the Register button to register the test set on the R-Server. The test set sends the request to register to R-Server and a message appears saying that the registration is complete. Next, the regis- tration must be authorized and approved by the R-Server manager in order to allow access. © VeEX Inc. All Rights Reserved. Platform Functions...
Page 145: Upload Results
1. Select the Upload tab and select the desired files to upload. 2. Tap Upload or Upload&Del. Upload: Transfers the selected result file(s) and keeps the file(s) in the test set. Upload&Del: Deletes the file(s) from the test set after uploading them. Platform Functions © VeEX Inc. All Rights Reserved.
Page 146: System Utilities Overview
System Utilities Overview The System Utilities tab provides settings for the global parameters of the test set or platform (system set- tings). System Utilities/Settings Menu © VeEX Inc. All Rights Reserved. Platform Functions...
Page 147: System Information
If company policy doesn’t allow access to the public internet or the test sets are used within a secured network, request License Keys for manual activation. License keys must be requested at the time new options are pur- chased. To activate new features, tap on the expired item and enter the Activation Code received from VeEX, Platform Functions...
Page 148 VeEX partner or manager. Press Activate to complete the licensing process. Each activation code is specific to a test set and a feature. If multiple features are ordered, individual activation codes will be sent for each of them. Manually activated features are specific to a test set and can’t be shared with other test sets.
Page 149: Global Settings
Audible Alarm: When enabled, the test set's buzzer will sound (beep) when alarms and errors are being detected (if supported by the test application). Show Password: Hides/unhides username and password information associated with FTP and related IP functions. Platform Functions © VeEX Inc. All Rights Reserved.
Page 150 If R-Server is used, the time service option can be made unavailable by the R-Server administrator. This ensures that all test sets have the same time, which is set by the R-Server. Storage Setting Storage Settings are not currently supported for OTDR, OPM, and Fiberscope results. © VeEX Inc. All Rights Reserved. Platform Functions...
Page 151 Result Saving: Manual or Prompt before saving results. Advanced Saving: Turn ON to add extra information to the results file to be uploaded to a cent- ralized R-Server. Requires Advanced Management Option.. Platform Functions © VeEX Inc. All Rights Reserved.
Page 152: Backlight
Once the timer is active and the backlight turned off, any action on the test set (touch screen, keypad) will turn on the backlight again. Backlight - Battery Power Similar settings can be applied for when the test set is operating on AC Power. © VeEX Inc. All Rights Reserved. Platform Functions...
Page 154: Battery Status
LED will blink. Press Home to view battery life and standby mode run time. Pressing and holding Home for 3 seconds again will return the unit to normal operation. Utility Settings - Battery Power © VeEX Inc. All Rights Reserved. Platform Functions...
Page 155: Standby Mode
LED will blink. Press Home to view battery life and standby mode run time. Pressing and holding Home for 3 seconds again will return the unit to normal operation. Platform Functions © VeEX Inc. All Rights Reserved.
Page 156: Touch Screen Calibration
Then the touch screen calibration procedure starts. Once the touch screen calibration sequence has been started, it must be completed. Accur- ately touch the calibration points with the tip of the stylus. © VeEX Inc. All Rights Reserved. Platform Functions...
Page 157 If the above procedures do not fix the touch screen issues, go to the VeEX website's Contact page, select [√] Customer Service/Tech Support, then provide the Product Type, Serial Number and a brief description of the behavior being experienced. If it is related to colder ambient tem- peratures, please state the approximate temperatures.
Page 158: Date And Time
NTP servers. An internet connection (WiFi or LAN) is required to reach the selected public or private NTP server. General Setting - NTP Time Service © VeEX Inc. All Rights Reserved. Platform Functions...
Page 159 To enable daylight saving time (DST), manually select a neighboring time zone with a +1:00 relative to the standard time zone of the current location. Set it back to the standard time zone offset when DST ends. Platform Functions © VeEX Inc. All Rights Reserved.
Page 160: Help
Tap the question mark and use a tablet or smartphone to scan the QR code that appears on the LCD screen, to access the User Manual and Quick Guides specific to the product. The manual and user guides can be accessed on-line or downloaded as a .pdf file. Help © VeEX Inc. All Rights Reserved.
Page 161: Software Update Process
The unit will automatically locate and load the software file from the USB flash drive. Wait for the upgrade pro- cess to finish. After the software upgrade is completed, go to the Utilities > About menu to confirm the software version. Software Update Pro- © VeEX Inc. All Rights Reserved. cess...
Page 163: Certifications And Declarations
Our quality and environmental policy is to limit and progressively eliminate the use of hazardous substances and chemicals in the design and manufacture of our products. VeEX products are classified as Monitoring and Control Instruments under Article 2, Section (1), Category 9 of the WEEE 2002/96/EC Directive.
Page 164 Additional RoHS substance restrictions for the Monitoring and Control Instruments were adopted by EU Dir- ective 2015/863 (March 31, 2015). These new restrictions will take effect from July 22, 2021. VeEX has estab- lished a program to ensure that from July 22, 2021, all its products to be sold and shipped into the EU market will conform with (EU) 2015/863.
Page 165: About Veex
With a blend of advanced technologies and vast technical expertise, VeEX products address all stages of network deploy- ment, maintenance, field service turn-up, and integrate service verification features across copper, fiber optics, CATV/DOCSIS, mobile 4G/5G backhaul and fronthaul, next generation transport network, Fibre Channel, car- rier &...
Page 166: Mtx150X Lite Quick Guide
When powered on the test set automatically loads the V-TEST (VeEX Internet Speed Test) application. Step 1: Connect the Patchcord The MTX150x Lite is an optimized Quality of Exper- ience (QoE) test solution (Layer 4+ applications) for Step 2: Power on the Test Set multi-Gigabit services from 100 Mbps to 10 Gbps on copper and fiber interfaces.
Page 167 "Hard Buttons" on page 19 for the Quick Guide displayed during boot-up sequence. Side Button Shortcuts: Right side + Save: Saves the screen (bmp) Right side + Home: Hibernates device More about side buttons MTX150x Lite Quick © VeEX Inc. All Rights Reserved. Guide...
Page 168 E. Micro-B USB: Use an USB-A OTG cable (optional with purchase) to connect a USB to the micro-B USB port. The port supports memory drives and USB add-on devices such as fiberscopes. An optional Micro-B OTG to Ethernet adapter is also available for network connection. (Only VeEX approved OTG to Ethernet Cables can be used.) G.
Page 169: Step 1: Connect The Patch Cord
MTX150X Light Connector Panel's Test Ports (top view) Follow the instructions below to use the MTX150x Lite to start testing high-speed and multi-gigabit Internet access services. Step 1: Connect the Patch Cord Use the appropriate copper (UTP) or duplex-LC fiber test cord to connect the port or device under test (DUT) to the test port.
Page 170: Step 2: Power On Test Set
The test set will take a few seconds to boot up, automatically start the V-TEST (VeEX Internet Speed Test) application, detect the link, auto-configure and get an IP address. The Basic V-Test defaults to use Ookla's speedtest.net servers for the speed test.
Page 171: Step 3: Basic V-Test
(from test set to server) and displays the results. 3. Once finished, the GO button will turn back to green. It is ready to save the results and/or run more tests. MTX150x Lite Quick © VeEX Inc. All Rights Reserved. Guide...
Page 172: Full V-Test
The different tabs provide access to detailed test Results (Summary, Status, Graphs), Setup (manual con- figuration), and offers buttons for direct access to other related troubleshooting test tools. More about Advanced V-TEST Modes Server Selection Modes Ookla® Speedtest® MTX150x Lite Quick © VeEX Inc. All Rights Reserved. Guide...
Page 173: Speed Test Modes
ID and server information (URL/IP, location, and ISP) are also provided. VeEX Managed – Perform internet speed tests by manually selecting servers from lists cre- ated and maintained by VeEX. These non-public lists are created for specific customers.
Page 174: Step 4: Save Results
UTP: Unshielded Twisted (copper) Pairs cable Step 4: Save Results Press the SAVE button and use the touch- screen keypad to enter the name (overwrite or edit), then tap Apply. MTX150x Lite Quick © VeEX Inc. All Rights Reserved. Guide...
Page 175 More about Advanced Saving To append additional information to test reports: 1. Press , then press on the top left of the screen. 2. Select , then select Global Settings. MTX150x Lite Quick © VeEX Inc. All Rights Reserved. Guide...
Page 176: Step 5: View Results And Generate Test Reports
Transfers selected test results, test profiles and screenshot files to a paired Bluetooth® smartphone, tablet or PC. Other Test Features PoE Check: Verifies the presence of Power over Ethernet on the Link or Device Under Test (DUT). MTX150x Lite Quick © VeEX Inc. All Rights Reserved. Guide...
Page 177 Update: Perform internet speed tests by manually selecting servers from lists created and maintained by VeEX. These non-public lists are created for specific customers. The Update button is used to update the servers' list. Inter- net access is required to receive the server lists maintained by VeEX.
Page 178: Related Topics
Ethernet, the Internet, and how they perceive performance (quality). Read more. How Does Speedtest.net Works? See follow this Ookla link for more details. MTX150x Lite Quick © VeEX Inc. All Rights Reserved. Guide...

VeEX MTX150x Lite User Manual

Quick Links

Need help?

Questions and answers

Related Manuals for VeEX MTX150x Lite

Summary of Contents for VeEX MTX150x Lite

Table of Contents
