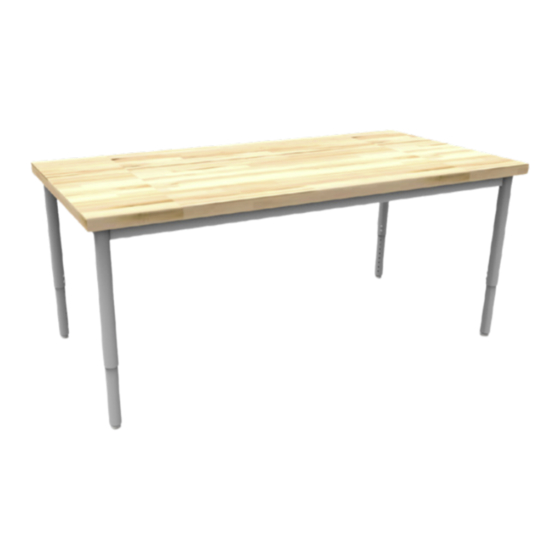

WB Manufacturing LOBO LOB9093-ALR Assembly Instructions

Before you begin, please make sure all parts and proper quantities are included. (See Part Identifier Key) Any parts damaged during shipment must be reported
within 24 hours of receipt. To report information regarding damages or if you have any questions, please call 800.242.2303.
Step 1a:
• If assembling a Hardwood top that has a depth of 36" or less, it
will be in one piece. Place the top face down on a protected flat
Step 3.
surface. Proceed to
Step 1b:
• If assembling a Hardwood top that has a depth greater than 36",
top will be in 2 pieces (.5" undersized on length). Place both top
halves face down on a protected flat surface. Align together the
dog bone holes on both tops.
Step 2:
• Adjust Tite joint fastener to the size of the field joint opening
and then place the fastener into each opening. Using a 7/16"
wrench, tighten each fastener so that both tops are securely
clamped together.
Step 3:

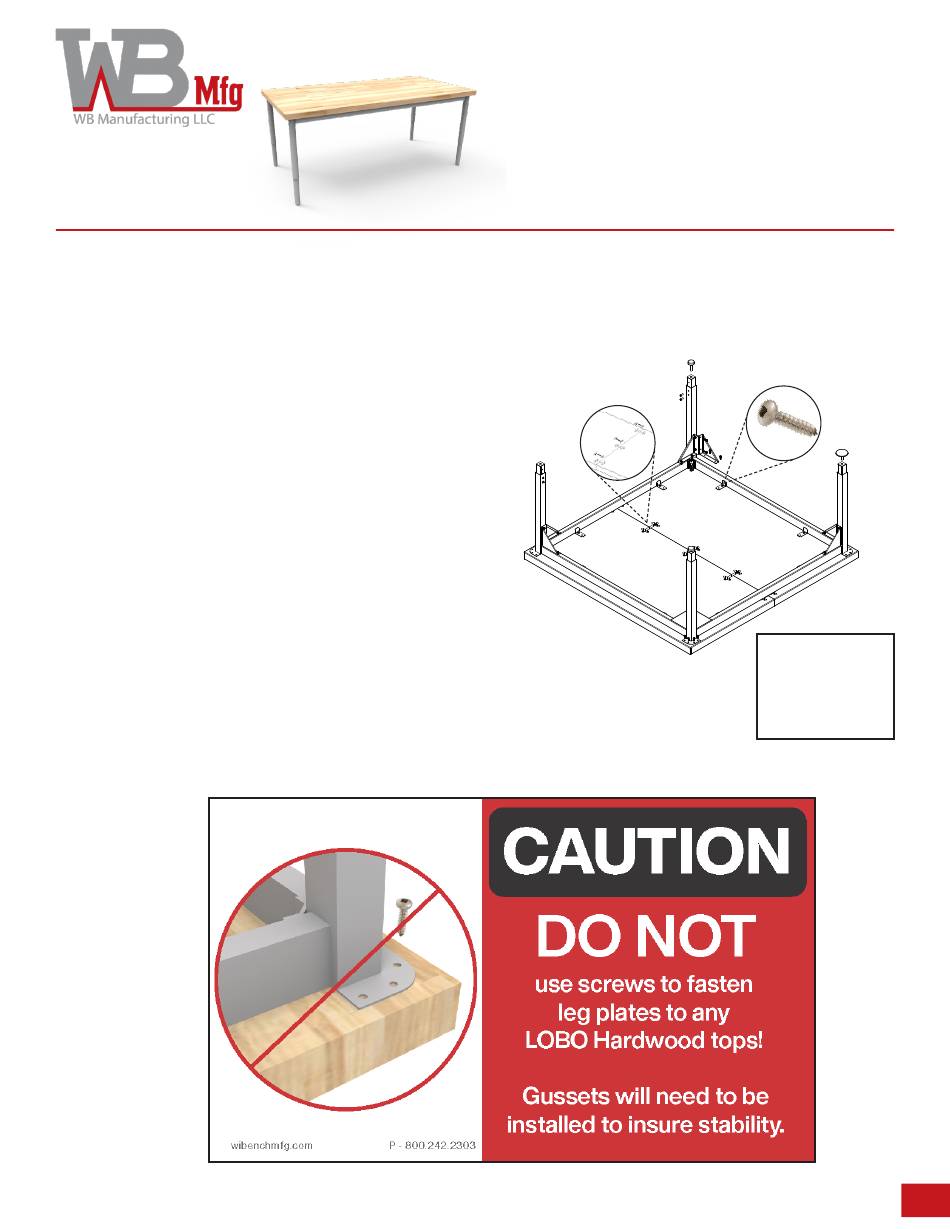

• Place LOBO frame tabs down on top of the LOBO top and align
tabs with pre-drilled pilot holes.
Step 4:
• Using a # S2 square bit, secure frame to table top with #10 x 3/4"
Square pan screws. One screw per tab.
wibenchmfg.com
LOB9093-ALR
Specifications are subject to change. Product
images are for illustrative purposes only and may
differ from the actual product.
Assembly Instructions
1 or 2 Piece Butcherblock Tops
2
Step
507 E. Grant St. Thorp, WI 54771 • P - 800.242.2303
LOBO Tables
Step 4
To o l s R e q u i r e d
• 1/2" Wrench
• 7/16" Wrench
• Screw gun
• # S2 Square bit
1
