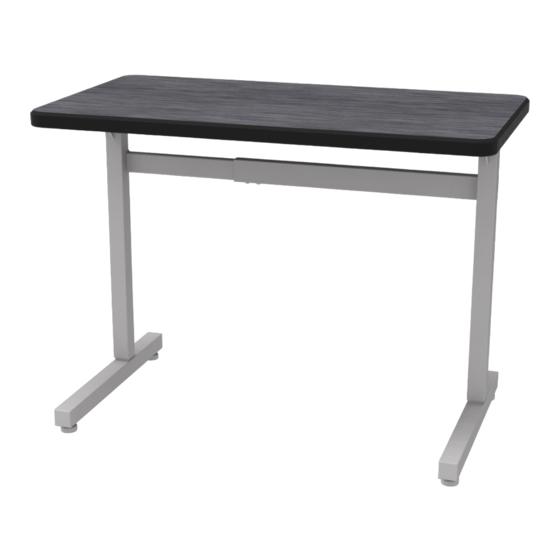

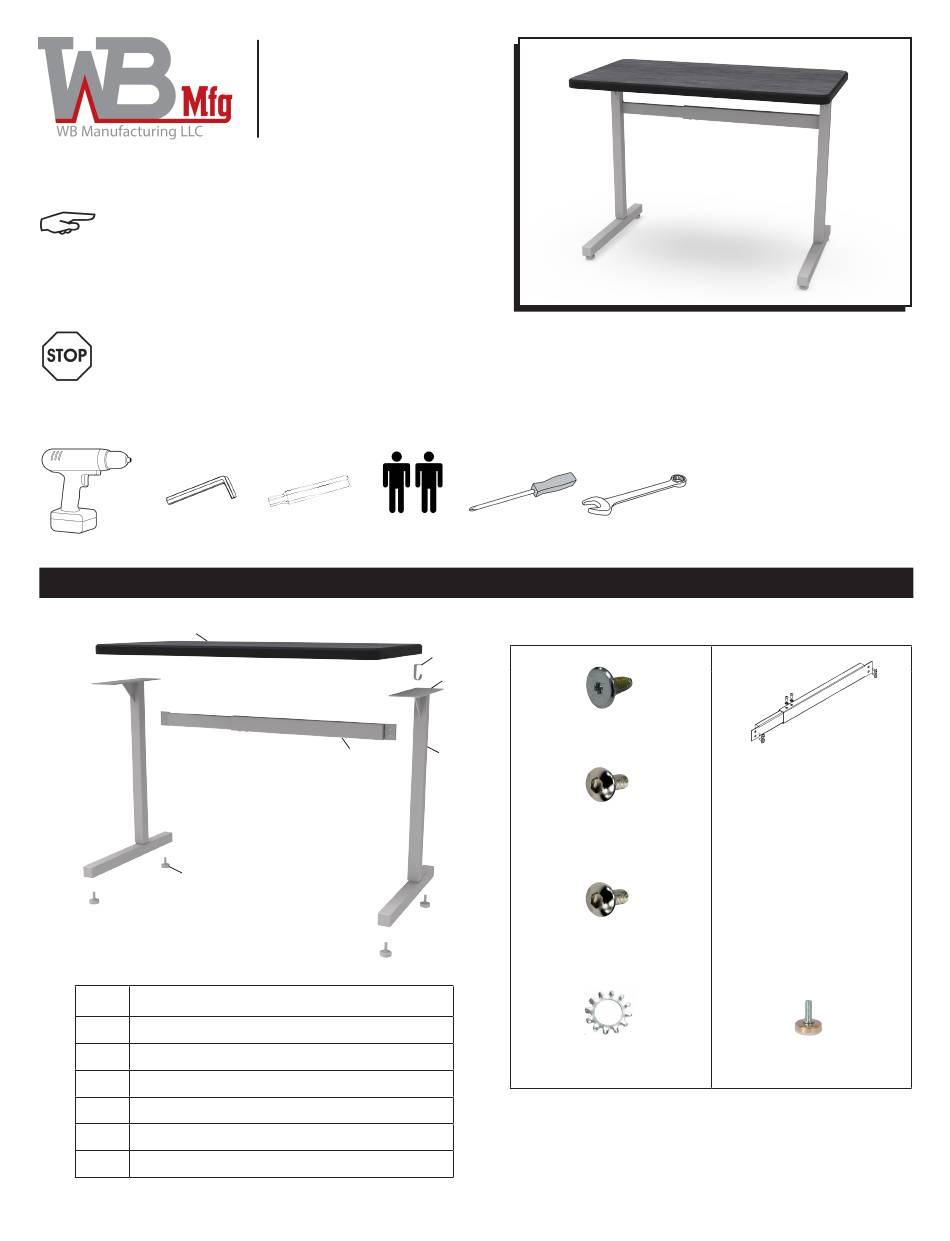

UNE-T DESK/TABLE
NOTE: These instructions are based on model
#UNE-T7142-ADJ. These instructions work for
all UNET desk & table models. Product images
are for illustrative purposes only and may differ
from actual product.
The assembly of this desk requires the
assistance of another person.
TOOLS NEEDED
Drill
4mm Allen
Wrench
①
⑤
#
DESCRIPTION x QTY
1
Laminate Top x 1
2
Leg x 2
3
Leg Plate x 2 (Attached to Leg)
4
Cross Bar x 1
5
Footing x 4
6
Backpack Hook x 1 (Optional)
wibenchmfg.com
1-800-242-2303
wibenchmfg.com
4mm Hex
Assistance
Bit
④
PARTS x QTY
Specifications are subject to change. Product
images are for illustrative purposes only and may
differ from the actual product.
Phillips
Screwdriver
Wrench
PARTS
⑥
③
1/4"-20x19mm joint connector
bolts x 6 per leg plate
04088861
②
M6-1x10mm button head
socket screw x 4 (Used to
attach non-adj cross bar)
04067356
M6-1x14mm button head
socket screw x 2
0401259 (Used to attach adj
cross bar)
#12 star lock washer
0404281
507 E. Grant St. Thorp, WI 54771 • P - 800.242.2303
14mm
HARDWARE x QTY
UNE-T connector bar (adj. or
non-adjustable)
04009770 (27"L top size)
fixed bar
04009771 (36"L top size)
fixed bar
04009772-G4 (48"L top size)
fixed bar
04009773 (54"L top size)
fixed bar
04077747-G4 (27", 30" &
36"L top sizes) adj. bar
04066970 (27"-44"L top
size) adj. bar
04066939 (38"-66"L top
size) adj. bar
1.38" nylon glide
NSL-33056
V042822 Version subject to change
1
Advertisement
Related Manuals for WB Manufacturing UNE-T7142-ADJ
Summary of Contents for WB Manufacturing UNE-T7142-ADJ
- Page 1 1-800-242-2303 wibenchmfg.com UNE-T DESK/TABLE NOTE: These instructions are based on model #UNE-T7142-ADJ. These instructions work for all UNET desk & table models. Product images are for illustrative purposes only and may differ from actual product. The assembly of this desk requires the assistance of another person.
- Page 2 PARTS OPTIONAL HARDWARE x QTY NOTE: Hardware packs are included in packaging. You may receive more hardware than needed. Discard any extra hardware after assembly. 2.5” Grand Hank nylon glide, 3/8”-16x1” x 1 per leg Backpack hook x 1 CAUTION! Some parts may have sharp 040164 04066852 (black) edges.
- Page 3 ASSEMBLY 1. Place top ① face down on protected flat surface so that the threaded inserts are facing up. 2. Align leg plates ③ (attached to legs ②) with threaded inserts in the top ①. Using a 4mm Allen wrench or 4mm hex bit, secure top with 1/4”-20x19mm joint connector bolts.
- Page 4 ASSEMBLY 12. If a backpack hook was ordere, determine the location in which you would like to place the optional backpack hook ⑥. Remove the joint connector bolt from the leg plate ③ in the determined location. Align tab of the backpack hook on top of the leg plate.
