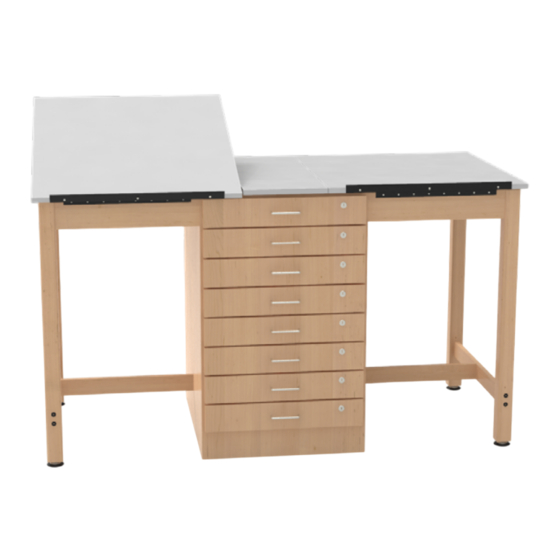

WB Manufacturing Two-Station Drafting Table Assembly Instructions

Before you begin, please make sure all parts and proper quantities are included. (See Part Identifier Key) Any parts damaged during shipment must be reported
within 24 hours of receipt. To report information regarding damages or if you have any questions, please call 800.242.2303.

Step 1:

• Lay the two top assemblies on a protected flat
surface with apron side facing up.

Step 2:

• Insert hanger bolt on one leg through the corner
bracket and insert lock washer and hex nut.
• Screw on nut using a 1/2" wrench or 1/2" socket and
torque wrench.
• Do NOT tighten all the way.
• Repeat for other 3 legs.
• The two legs with a chamfer must go on the front of
the table with chamfered edges facing out.

Step 3:

• Screw leg levelers into t-nut on bottom of legs.
Front leg
Front apron
Hinge
Tools Required
• 1/2" wrench
• 1/2" socket and
torque wrench
(optional)
• 4mm wrench
wibenchmfg.com
Step:
Back leg
Leg with a
chamfer needs to
be facing out (Both
top assemblies)
Specifications are subject to change. Product
images are for illustrative purposes only and may
differ from the actual product.
Assembly Instructions
Two-Station Drafting Table
Step: 1
2
Step: 3
507 E. Grant St. Thorp, WI 54771 • P - 800.242.2303
w/ Drawers in Middle
Apron side
facing up
Levelers
V031521 Version subject to change
1
