Altronix TROVE T1PDK724 Installation Manual page 3

1. Fasten spacers (provided) to pems that match the hole pattern for PDK 8DEE modules (Fig. 2, pg. 3).
2. Mount boards to spacers utilizing 5/16" pan head screws (provided) (Fig. 2, 2a, pg. 3).
Note: PDK 8DEE modules have one (1) RJ45 jack each.
Please make sure that they are mounted correctly, as shown in Fig. 2 below.
4. Fasten TPD1 backplane to Trove1 enclosure utilizing hardware (provided).

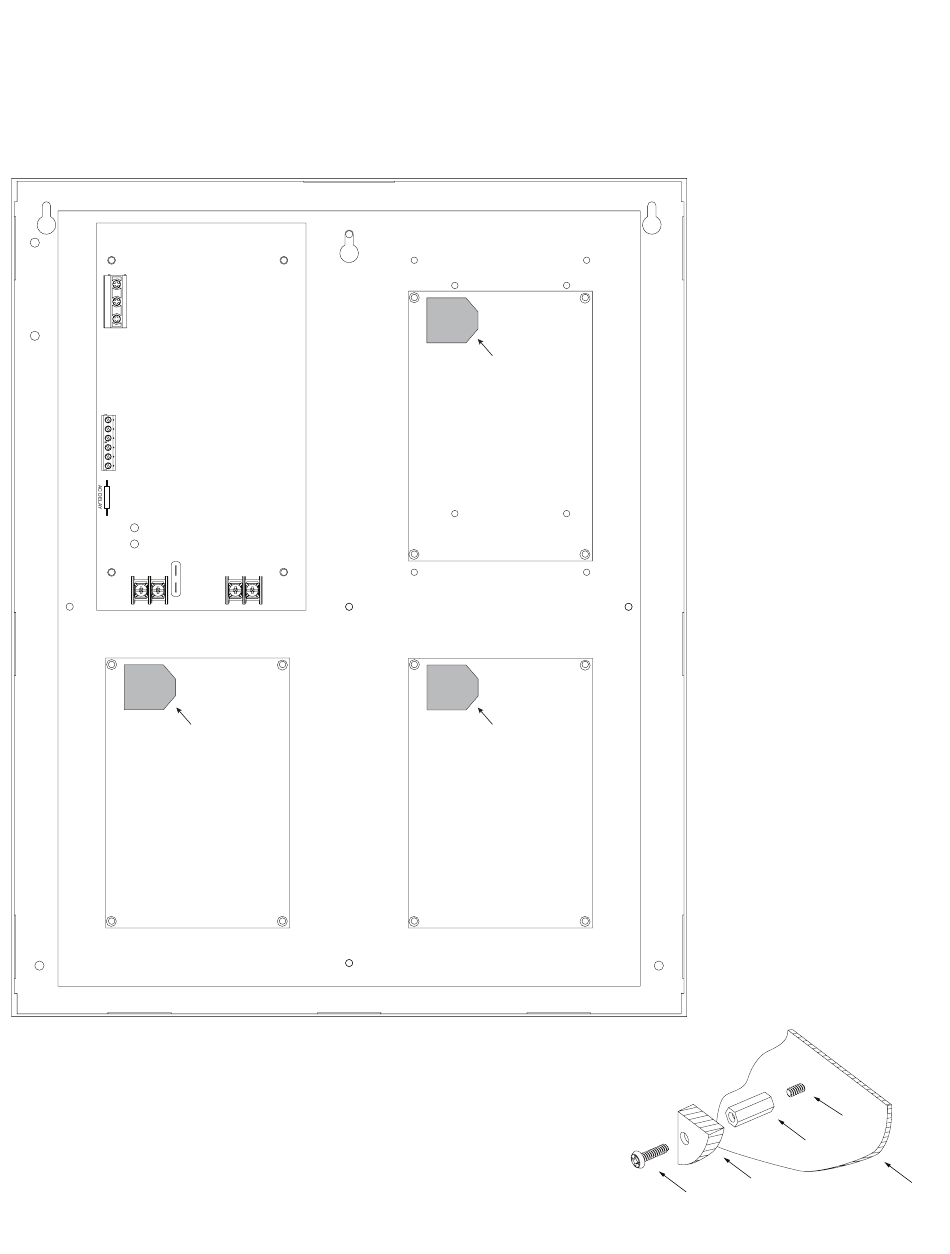

Fig. 2
L
G
N
Altronix
AL1024ULXB2
BAT FAIL
NC
C
NO
NC
C
NO
AC FAIL
AC
DC
- BAT +
PDK
8DEE
T1PDK724 Installation Guide
Configuration of PDK 8DEE Modules:
+ DC -
RJ45 Jack
RJ45 Jack
PDK
8DEE
RJ45 Jack
PDK
8DEE
Pem
Spacer
Pan Head PDK
Screw 8DEE module
Fig. 2a
Backplane
- 3 -
