Amico AHM Quick Installation Instructions

Tilt Adjustment Handle
8. Cable Management (Pg. 29)
Manages the cables of the Monitor
Adjustable Height Monitor (AHM) Arm
for better organization.
Quick Installation and Adjustment Instructions
Medical Facility Responsibility
WARNING: It is the responsibility of the end user to ensure all aspects of the installation are covered by following the full
!
manual at: https://www.amico.com/sites/default/files/product/downloads/amico-aa-ahm-adjustable-height-
patient-monitor-arm-manual.pdf

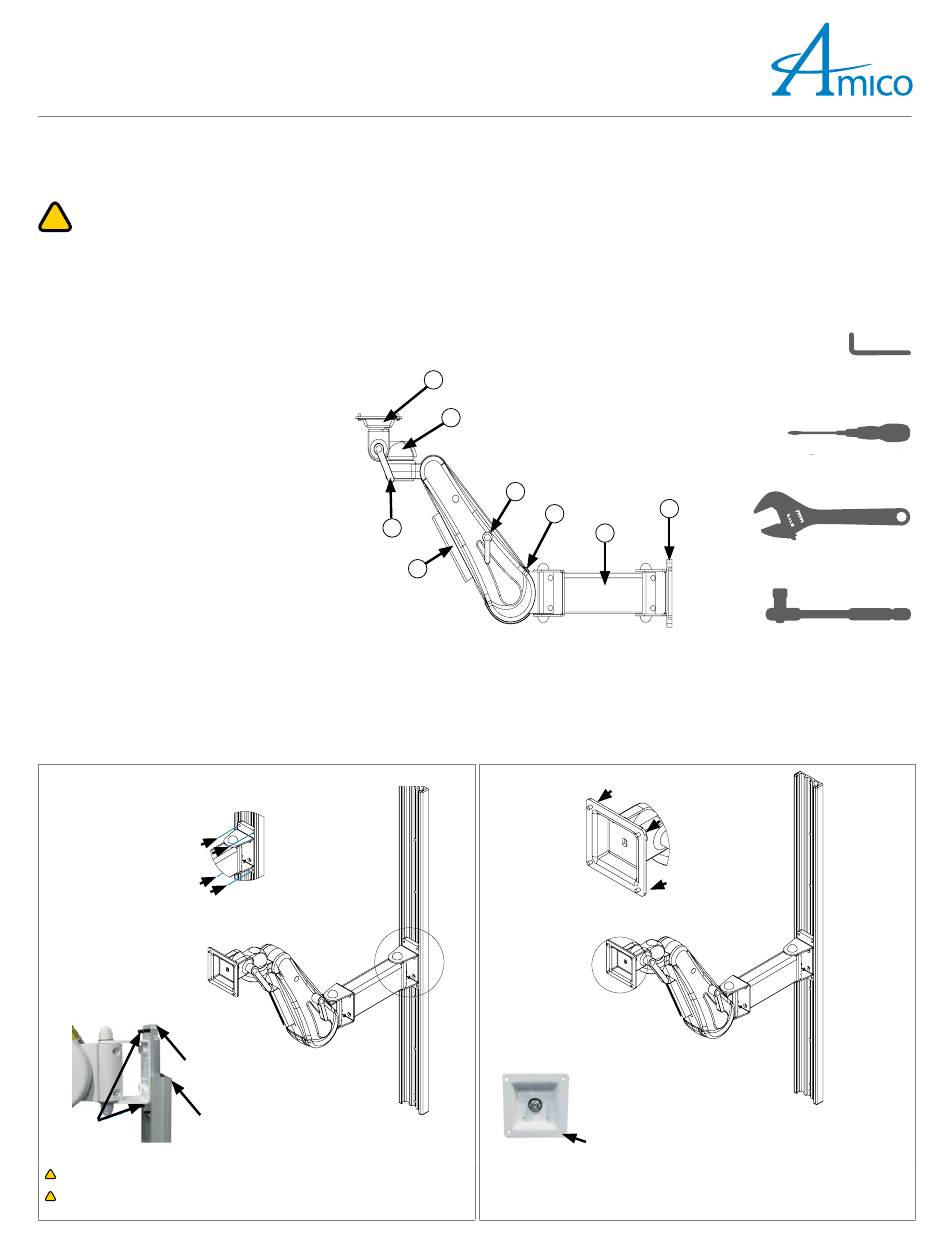

AHM Monitor Arm
1. Monitor Mounting Adapter
VESA LCD mount shown, other options available
2. Monitor Head - Rotation
Monitor rotation adjustment
3. Monitor Locking Lever
Locks the AHM arm at a desired height
4. Counter Balance
Used to adjust for zero movement
5. Extension Arm*
6" extension arm shown
6. Mounting Adapter
MON adapter shown for MRS rail
7. Monitor Head - Tilt
Tilt adjustment handle
8. Cable Management
Manages the cables for better organization
* If requested
1. Installation to Structure
4x 1/4-20 SET SCREWS
USE 1/8" (3 mm)
USE HEX KEY TO TIGHTEN
STANDARD MON ADAPTER
MRS RAIL
SET SCREWS
(3 mm)
! WARNING: Never attempt to mount or remove the AHM ARM from the rail when a MONITOR is installed.
! WARNING: Support AHM ARM until the SET SCREWS are tightened, AHM ARM can slide down when SET
SCREWS are not tightened.
7 7
8 8
1
2
3
4
7
8
2. Installation to Monitor
* LCD mount shown, for other monitor styles, refer to the manual.
1
2
3 3
4 4
5 5
6 6
Installation Tools
Hex Keys (1/8", 3/16", M3, M4) - 1
6
5
Socket Wrench (12 mm, 1/2") - 1
INSERT 4x SCREWS THROUGH
THE M4 MOUNTING HOLES INTO
BACK OF THE MONITOR
*
M4 MOUNTING HOLE
Phillips Head Screw Driver
Adjustable Wrench
1
