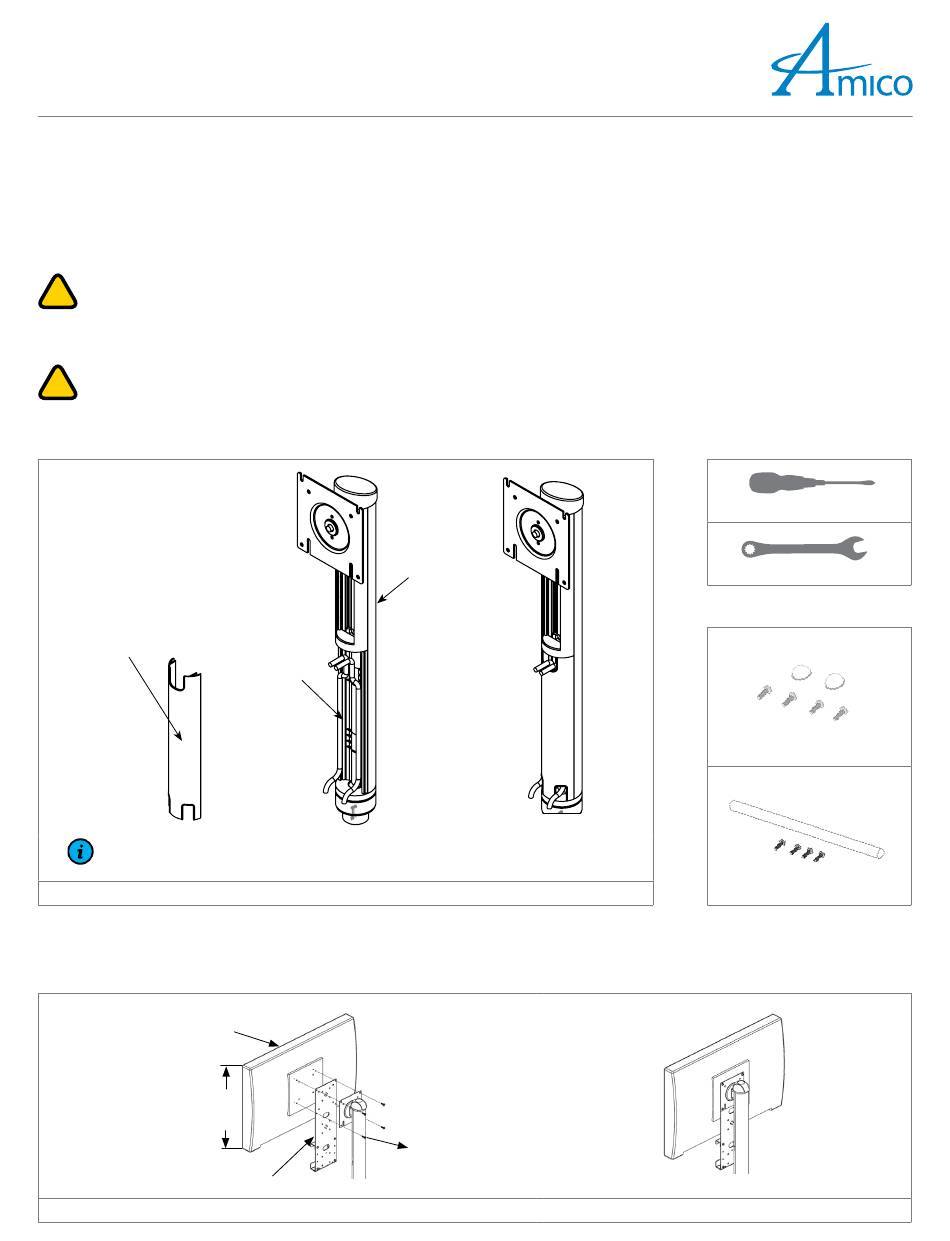

JABRA SPEAKER 410/510 MOUNTING PLATE
Quick Installation and Maintenance Instructions
HMA-VESA-SPK-PLT
Medical Facility Responsibility
Preventive maintenance checks must be performed regularly to maintain the quality and performance of this product. Any parts that
may be broken, missing, worn, distorted, or contaminated in any way should not be used and all affected parts should be replaced
immediately. Should the necessity of any repair be suspected; please contact your local distributor.
WARNING: This Quick Installation and Maintenance Guide is for retrofitting existing Hummingbird cart with the
!
HMA-VESA-SPKT-PLT and CAMHLD for telehealth usage. User may refer to the full Hummingbird manual for aspects associated
to the mobile workstation.
WARNING: Ensure the installation is performed away from the patient in a safe proximity to avoid any potential injuries to
!
any person.
Cabling
REMOVE THE SWIVEL
POST CABLE COVER
ENSURE THAT PASSING OF MONITOR CABLES THROUGH SWIVEL POST HAPPENS PRIOR TO MOUNTING
THE MONITOR TO THE VESA PLATE.
Attaching Monitor & Speaker Mounting Plate
DEVICE WITH VESA MOUNT PATTERN
5
(35.56 cm)
HMA-VESA-SPK-PLT
FEED CABLES
THROUGH THE
CABLE GUIDE
CHANNELS
Figure 1
4
≤14"
SWIVEL POST
PROJECTION
PRIVATE AND CONFIDENTIAL
PRIVATE AND CONFIDENTIAL
THIS PRINT IS PROPERTY OF AMICO ACCESSORIES
AND IS LOANED IN CONFIDENCE SUBJECT TO RETURN
THIS PRINT IS PROPERTY OF AMICO ACCESSORIES
UPON REQUEST AND WITH THE UNDERSTANDING THAT
AND IS LOANED IN CONFIDENCE SUBJECT TO RETURN
NO COPIES ARE TO BE MADE WITHOUT THE CONSENT
UPON REQUEST AND WITH THE UNDERSTANDING THAT
OF AMICO ACCESSORIES
NO COPIES ARE TO BE MADE WITHOUT THE CONSENT
OF AMICO ACCESSORIES
ALL RIGHTS TO DESIGN OR INVENTION ARE RESERVED
ALL RIGHTS TO DESIGN OR INVENTION ARE RESERVED
3
2
4
4x
H-PHMS-M4-14
Figure 2
CUSTOMER/PRODUCTION
CUSTOMER/PRODUCTION
Installation Tools
#1 Phillips Head Screwdriver
11/32 Wrench for #8 Nut
Hardware Kits
Height Adjustable Display:
4x H-PHMS-M4-14
2x X-CAM-VESA-BMPR
Fixed Display Height:
4x H-PHMS-M4-14
1x H-FIT-PST-ROD (14.5")
85 Fulton Way
Richmond Hill, Ontario
L4B 2N4, Canada
Toll Free: 1.877.264.2697 (T)
Tel: (905) 763.7778
PROJECTION
www.amico.com
Fax: (905) 763.8587
DESCRIPTION:
www.amico.com
DESCRIPTION:
PART NO:
[TOP LEVEL P.N.]
PART NO:
[TOP LEVEL P.N.]
SHT.
SCALE:
NTS
DRAWN BY:
DATE:
SCALE:
NTS
-
-/-/-
DATE:
CHECKED BY:
DRAWN BY:
-
CHECKED BY:
1
3
2
85 Fulton Way
Richmond Hill, Ontario
L4B 2N4, Canada
Toll Free: 1.877.264.2697 (T)
Tel: (905) 763.7778
Fax: (905) 763.8587
OF
1
1
DRAWING NO:
SHT.
1
OF
1
DATE:
DRAWING NO:
-/-/-
DATE:
1
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Amico HMA-VESA-SPK-PLT
Summary of Contents for Amico HMA-VESA-SPK-PLT
- Page 1 Fax: (905) 763.8587 Tel: (905) 763.7778 PRIVATE AND CONFIDENTIAL DESCRIPTION: www.amico.com Fax: (905) 763.8587 THIS PRINT IS PROPERTY OF AMICO ACCESSORIES DESCRIPTION: AND IS LOANED IN CONFIDENCE SUBJECT TO RETURN THIS PRINT IS PROPERTY OF AMICO ACCESSORIES PART NO: [TOP LEVEL P.N.]...
- Page 2 JABRA SPEAKER 410/510 MOUNTING PLATE Quick Installation and Maintenance Instructions HMA-VESA-SPK-PLT Reorientation of the Speaker Holder Plate H-PHMS-832-516 HORIZONTAL FEATURE: VERTICAL FEATURE: SECURITY FOR DEVICE UNSCREW 4x H-PHMS-832-516 TO CHANGE ORIENTATION OF THE SPEAKER PLATE. QUICK RELEASE (LOCKS UNDER MONITOR – REQUIRES TOOLS)
- Page 3 JABRA SPEAKER 410/510 MOUNTING PLATE Quick Installation and Maintenance Instructions HMA-VESA-SPK-PLT Protecting Speaker Device Only Applicable to Adjustable Display Height FIT Post THE ADJUSTABLE FIT POST PROVIDES HEIGHT ADJUSTABILITY. HOWEVER, TO PREVENT THE SPEAKER FROM DAMAGING/HITTING THE HMW WORKTOP (AS SHOWN), USE 2x X-CAM-VESA-BUMPR (PROVIDED IN THE KIT).
- Page 4 (8.89 cm) NOTE: THERE IS A REQUIREMENT TO HAVE AT LEAST 3.5" (8.89 cm) OF CLEARANCE BETWEEN THE BOTTOM FACE OF THE HMA-VESA-SPK-PLT AND HMW-WT. STANDARD HMW FIT POST IS SHORTER AND NEEDS TO BE REPLACED WITH A LONGER POST (PROVIDED IN THE KIT).
-
Page 5: Warranty
During the term of the 5-year warranty: Within the first twelve (12) months from the date of shipment, Amico Accessories will repair or replace any part which is proven to be defective at no cost. After the twelve (12) month period, Amico Accessories will send the parts to the customer free of charge, however shipping and installation will be borne by the customer.
