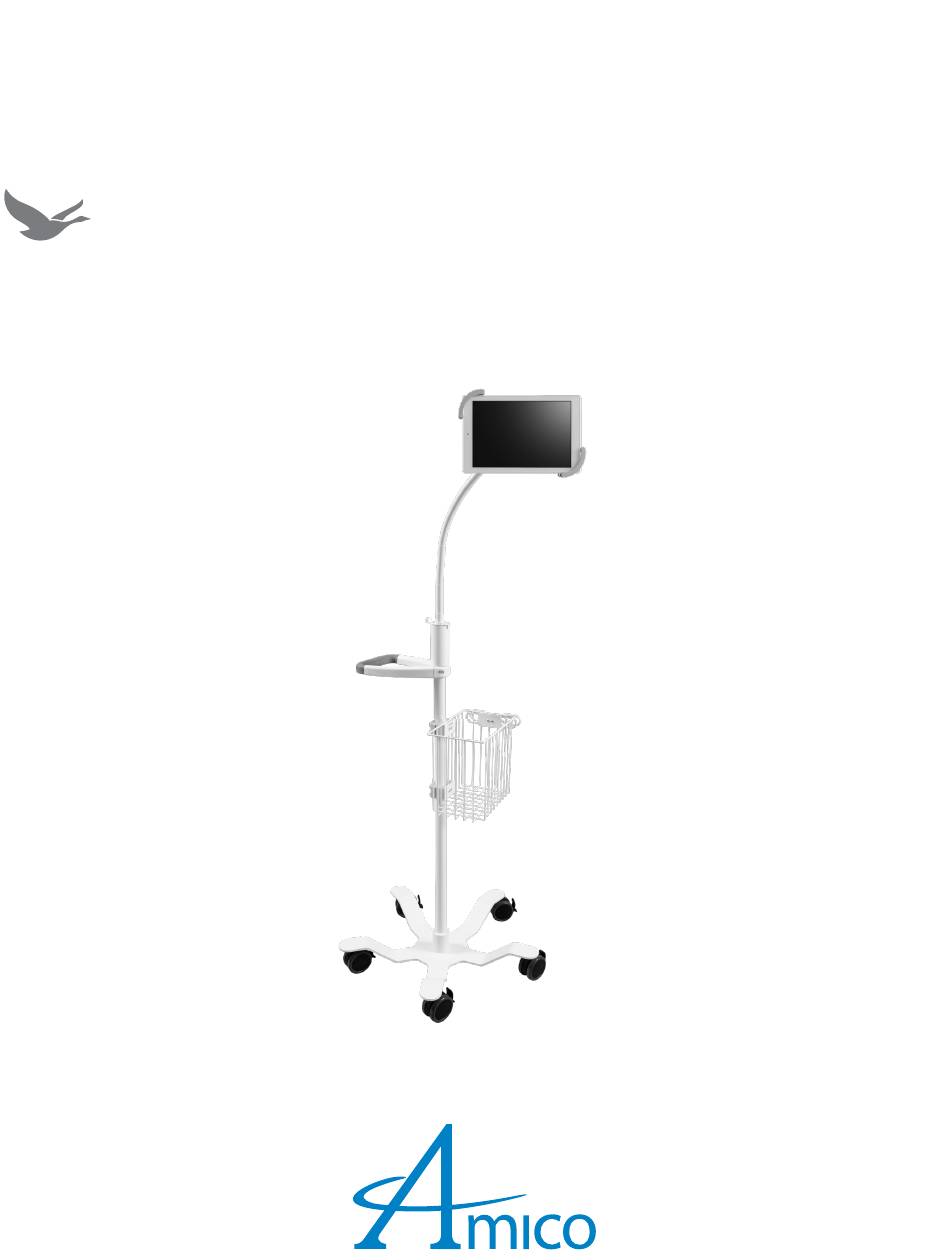

- Page 1 Assembly Instructions Gooseneck Tablet Roll Stand Goose...
- Page 2 This instruction manual is your guide to ensuring that you get the best performance out your equipment. Amico Accessories is not responsible for any damage as a result of (but not limited to) abuse and other malfunctions that may be a direct or indirect result of failure to comply with the instructions provided in this manual.
-
Page 3: Table Of Contents
What's in the Box? Section 3: Assembly 5-16 Connect Roll Stand Post to Base Connect Gooseneck to Roll Stand Post Connecting Powered Gooseneck to Roll Stand Post Mount Integrated Power Adapter (Optional) Installing a Tablet Adjustments Mount the Handle (Optional) -
Page 4: Section 1: Product Specifications
Power Adapter). (outside, corner-to- Adapter. corner dimension), up to 0.4" thick. USB-C Cable through Gooseneck to secured 13.5" - 15.5" coupling. * 5" x 5" x 4" (34.29 cm - 39.37 cm) (12.7 cm x 12.7 cm x (outside, corner-to- North America 10.2 cm) -
Page 5: Section 2: Assembly Preparation
4. Utility knife - not included 5. 1/2" Socket tool - included What's in the Box? NOTE: Please ensure that your contents match the list as outlined below. If not, please contact Amico Accessories at 1-877-264-2697. Gooseneck with Gooseneck Hardware Kit... -
Page 6: Section 3: Assembly
THIS PRI AND IS UPON R 1. Using a 1/2" (1.27 cm) Socket wrench with 6" (15.24 cm) extension and GOOSENECK to ROLL STAND POST ADAPTER NO CO OF AMI (HEAD-HW KIT), insert the HEAD HW-KIT LARGE BOLT through the HEAD-HW KIT LOCK WASHER, then through the ALL RIG HEAD-HW KIT SMALL WASHER. - Page 7 NOTE: HEAD-HW KIT contains the hardware necessary for this section. NOTE: The GOOSENECK may have come with pre-installed power cable for the tablet OR you may need to run a power-supply wire through the GOOSENECK. Wires at the bottom of the GOOSENECK should be fed through the cable channel (notch in GOOSENECK to ROLL STAND POST ADAPTER).
-
Page 8: Connecting Powered Gooseneck To Roll Stand Post
Section 3: Assembly Connecting Powered Gooseneck to Roll Stand Post 1. Use #2 Phillips head screwdriver, place the POWERED GOOSENECK with TABLET HEAD MOUNT on top of the TABLET HEAD MOUNT and secure with 3x GOOSENECK HW-KIT SCREWS. (Figure 1) -
Page 9: Mount Integrated Power Adapter (Optional)
ENCLOSURE bottom slot to stop the C14 CONVERTER slide down. (Figure 1) Figure 1 2. Connect the NEMA 5 PLUG to C14 CONVERTER then connect with cable USB TYPE A end comes from GOOSENECK to NEMA 5 PLUG. (Figure 2) Figure 2 www.amico.com... -
Page 10: Installing A Tablet
Section 3: Assembly 3. Insert the tab on the ENCLOSURE top into GOOSENECK mounting plate slot in an inclined manner then hold on the top of the ENCLOSURE and squeeze the ENCLOSURE bottom slowly to slide onto TABLET HEAD MOUNT. (Figure 3) Figure 3 4. -
Page 11: Adjustments
Section 3: Assembly Adjustments Adjust Tilt Angle Rotate Security Lock Bracket Lock Kensington Lock www.amico.com... -
Page 12: Mount The Handle (Optional)
11" - 13.5" (27.9 cm - 34.3 cm) to 13.5" - 15.5" (34.3 cm - 39.4 cm) (corner to corner) size and thicker tablets or tablet case from 0.4" - 0.8" (1.02 cm - 2.03 cm) thick. Installation Tools Hardware Kit INCORRECT CORRECT #T10 & #T20 Torx Allen key Extender plates Spacers (Included in the KIT) Amico Accessories Inc. - Page 13 3. Use the T20 Torx Allen key to disassemble the clamps from the TABLET MOUNT. Figure 1 Figure 2 NOTE: Keep the hardware safe, these washers and screws will be reused. Figure 3 Figure 4 4. Use the T10 Torx Allen key to disassemble the clamps plates. Figure 5 www.amico.com...
- Page 14 7. Repeat steps 3 to 6 for the other end of the clamp to replace the clamp plate with new extender plate. 8. Put back the clamps to tablet mount with T20 Torx Allen key. 9. After installation, the embossments outlined below are visible. Check by rotating the extension plate and ensure it stops at the embossments. Amico Accessories Inc.
-
Page 15: Instructions To Install Thicker Tablet Kit (Rs8-Upgrd-Tb13)
TABLET MOUNT and keep aside. (Figure 2) Figure 1 Figure 2 3. Use the T10 Torx Allen key to disassemble the clamps from the TABLET MOUNT. (Figure 3) NOTE: Keep the hardware safe, these screws will be reused. www.amico.com... - Page 16 5. Insert the new spacer from the KIT onto the plate as shown in the figure. (Figure 6) 6. Now put back the plate with new Spacer on the TABLET MOUNT and secure with new screw provided in the KIT. (Figure 7) Figure 6 Figure 7 Amico Accessories Inc.
-
Page 17: Mounting The Basket (Optional)
BASKET POLE CLAMP FRONT HALF (PART OF RS1-HANDLE) [H-HSCS-1420-34] REAR BASKET SCREWS (BLACK) BASKET POLE CLAMP FRONT HALF [X-PC-125-1-8-32] (Part of 100609-R125-BB) [H-HSCS-1420-34] [X-PC-125-1-8-32] (PART OF 100609-R125-BB) (PART OF 100609-R125-BB) Figure 1 INCORRECT CORRECT Incorrect Correct Tighten pattern Figure 2 Figure 3 www.amico.com... -
Page 18: Section 4: Troubleshooting, Maintenance And Product Classification
1.877.264.2697 or info@amico-accessories.com. Tablet is drooping Tighten tablet holder mount on ball-joint by turning the black wing-nut clockwise. If any problem persists after troubleshooting, please contact Amico Accessories at 1.877.264.2697 or info@amico-accessories.com. Handle is loose Ensure 2x screws are tight, using a #2 Phillips head screwdriver. If any problem persists after troubleshooting, please contact Amico Accessories at 1.877.264.2697 or info@amico-accessories.com. -
Page 19: Warranty Information
Amico Accessories Inc. will warrant its materials to be free from defect for an additional period of four (4) years, (five [5] years from the date of shipment). Within this period, Amico Accessories Inc. will replace any part which is proven to be defective, at no charge. - Page 20 Amico Accessories Inc. | 85 Fulton Way, Richmond Hill, ON L4B 2N4, Canada Toll Free Tel: 1.877.264.2697 | Tel: 905.763.7778 | Fax: 905.763.8587 Email: info@amico-accessories.com | www.amico.com AA-IM-GOOSENECK-ROLL-STAND 03.15.2022...
