Roll Stand

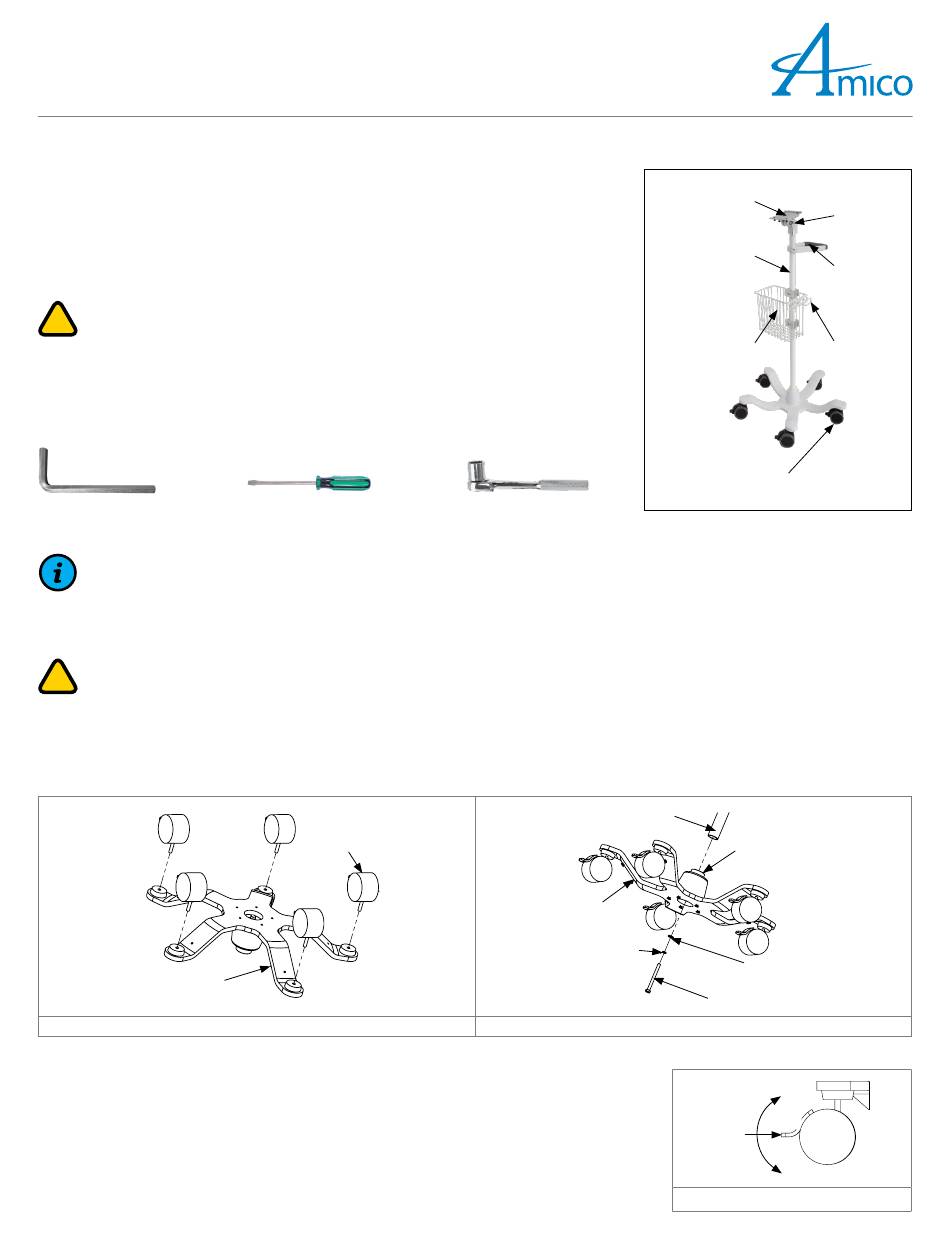

Quick Installation and Maintenance Instructions
RS_-42_-PKG/RS_-LCD-PKG
Medical Facility Responsibility
Preventive maintenance checks must be performed regularly to maintain the quality and
performance of this product. Any parts that may be broken, missing, worn, distorted or
contaminated in any way should not be used and all affected parts should be replaced
immediately. Should the necessity of any repair be suspected; please contact your local Amico
distributor.
WARNING: It is the responsibility of the end user to ensure all aspects of the installation
!
are covered by following the full manual found at:
https://www.amico.com/sites/default/files/product/downloads/amico-aa-rst-
roll-stand-manual.pdf
Installation Tools
3/16" Hex Key
WARNING: If the product was purchased with counterweight, perform Installing Counterweight step 1 and/or step 2 from the full
manual. If not, proceed to the Installing Casters & Post into Base section.
PROJECT #: 0378
FOR USE WITH: RS(5/6/7)-((42(0/2/3/4/6/7/8/9/W))/LCD)(-PKG)
Installing Casters & Post into Base
WARNING: DO NOT USE A HAMMER ON THE CASTERS OR ROLL STAND BASE WHEN INSTALLING CASTERS. DOING SO WILL DAMAGE THE CASTERS
PROJECT #: 0378
PUSH 5X CASTERS INTO STAND BASE BY HAND UNTIL IT CLICKS IN PLACE, AS SHOWN IN FIGURE 1.
1.
!
FOR USE WITH: RS(5/6/7)-((42(0/2/3/4/6/7/8/9/W))/LCD)(-PKG)
WARNING: Do not use a hammer on the CASTERS or ROLL STAND base when installing CASTERS. Doing so will damage the CASTERS.
2.
INSERT STAND POST INTO BASE ADAPTER . USING 1/2" SOCKET WRENCH, SECURE BY INSERTING POST HW-KIT-LARGE BOLT THROUGH POST
HW-KIT LOCK WASHER , POST HW-KIT SMALL WASHER , STAND BASE , BASE ADAPTER , AND INTO STAND POST , AS SEEN IN FIGURE 2.
WARNING: DO NOT USE A HAMMER ON THE CASTERS OR ROLL STAND BASE WHEN INSTALLING CASTERS. DOING SO WILL DAMAGE THE CASTERS
PUSH 5X CASTERS INTO STAND BASE BY HAND UNTIL IT CLICKS IN PLACE, AS SHOWN IN FIGURE 1.
1.
1. Push each of the 5x CASTERS into a leg by hand until it clicks in place, as shown in Figure 1.
2.
INSERT STAND POST INTO BASE ADAPTER . USING 1/2" SOCKET WRENCH, SECURE BY INSERTING POST HW-KIT-LARGE BOLT THROUGH POST
HW-KIT LOCK WASHER , POST HW-KIT SMALL WASHER , STAND BASE , BASE ADAPTER , AND INTO STAND POST , AS SEEN IN FIGURE 2.
2. Insert the POST into the BASE ADAPTER. Using a 1/2" socket wrench, secure by inserting the SCREW through the LARGER WASHER,
SMALLER WASHER, the STAND BASE underside, and BASE ADAPTER into the POST, as seen in Figure 2.
STAND BASE
STAND BASE
[X-RS-BASE]
[X-RS-BASE]
FIGURE 1
Locking & Unlocking Casters
1. To lock the CASTERS, step on the LOCKING LEVER such that it clicks in the down position.
2. To unlock the CASTERS, lift the LOCKING LEVER up as seen in Figure 3.
5
#2, #3 Phillips Head Screwdrivers
5x CASTERS
[X-RS-CSTR-3B]
CASTERS
STAND BASE
[X-RS-CSTR-3B]
[X-RS-BASE]
FIGURE 1
Figure 1
5
1/2" (12.7 mm) Socket Wrench
STAND POST
[X-RS-POST]
5X
CASTERS
[X-RS-CSTR-3B]
5X
STAND BASE
[X-RS-BASE]
STAND BASE
[X-RS-BASE]
POST HW-KIT LOCK WASHER
POST HW-KIT LOCK WASHER
STAND BASE
[H-RS-LOCK-WASH]
[H-RS-LOCK-WASH]
[X-RS-BASE]
POST HW-KIT LOCK WASHER
[H-RS-LOCK-WASH]
FIGURE 2
4
PRIVATE AND CONFIDENTIAL
THIS PRINT IS PROPERTY OF AMICO ACCESSORIES
AND IS LOANED IN CONFIDENCE SUBJECT TO RETURN
UPON REQUEST AND WITH THE UNDERSTANDING THAT
NO COPIES ARE TO BE MADE WITHOUT THE CONSENT
OF AMICO ACCESSORIES
ALL RIGHTS TO DESIGN OR INVENTION ARE RESERVED
4
PATIENT MONITOR
SHELF
ALUMINUM CONSTRUCTION
BASKET
3" (7.6 cm) LOCKING CASTERS
CUSTOMER
STAND POST
[X-RS-POST]
STAND POST
[X-RS-POST]
BASE ADAPTER
BASE ADAPTER
[RS-ADA-125]
[RS-ADA-125]
BASE ADAPTER
[RS-ADA-125]
POST HW-KIT SMALL WASHER
POST HW-KIT SMALL WASHER
[H-STW-516-SMOD]
[H-STW-516-SMOD]
POST HW-KIT LARGE BOLT
POST HW-KIT LARGE BOLT
[H-HSCS-51618-312]
[H-HSCS-51618-312]
PROJECT #: 0378
FIGURE 2
FOR USE WITH: RS(5/6/7)-((42(0/2/3/4/6/7/8/9/W))/LCD)(-PKG)
Figure 2
1.
TO LOCK THE CASTERS , STEP ON THE LOCKING LEVER SUCH THAT IT CLICKS IN THE DOWN POSITION.
2.
TO UNLOCK THE CASTERS , LIFT THE LOCKING LEVER UP
POST HW-KIT SMALL WASHER
PROJECTION
[H-STW-516-SMOD]
PRIVATE AND CONFIDENTIAL
DESCRIPTION:
POST HW-KIT LARGE BOLT
Assembly instructions for Roll Stand
THIS PRINT IS PROPERTY OF AMICO ACCESSORIES
AND IS LOANED IN CONFIDENCE SUBJECT TO RETURN
[H-HSCS-51618-312]
RS_-___-___
PART NO:
UPON REQUEST AND WITH THE UNDERSTANDING THAT
NO COPIES ARE TO BE MADE WITHOUT THE CONSENT
LOCKING
UNLOCK
OF AMICO ACCESSORIES
SCALE:
NTS
LEVER
DRAWN BY:
EC
85 Fulton Way
JT
ALL RIGHTS TO DESIGN OR INVENTION ARE RESERVED
CHECKED BY:
Richmond Hill, Ontario
L4B 2N4, Canada
3
PROJECTION
2
Toll Free: 1.877.264.2697 (T)
LOCKING
Tel: (905) 763.7778
LEVER
Fax: (905) 763.8587
DESCRIPTION:
Assembly instructions for Roll Stand
RS_-___-___
LOCK
PART NO:
LOCK
SCALE:
NTS
2014-02-28
EC
DRAWN BY:
DATE:
2014-08-04
JT
DATE:
CHECKED BY:
Figure 3
1
3
2
TILT ADJUSTMENT
HANDLE
CORD WRAP
CUSTOMER
85 Fulton Way
Richmond Hill, Ontario
L4B 2N4, Canada
Toll Free: 1.877.264.2697 (T)
Tel: (905) 763.7778
Fax: (905) 763.8587
UNLOCK
SHT.
OF
2
6
2014-02-28
DATE:
DRAWING NO:
2014-08-04
DATE:
20140228-E2799
1
SHT.
OF
2
FIGURE 1
6
DRAWING NO:
20140228-E2799
