Amico Mindray MR-SMR-MNT-02 Quick Installation And Maintenance Manual

Mindray Satellite Module Rack (SMR) Mount
Quick Installation and Maintenance Instructions
Medical Facility Responsibility
Preventive maintenance checks must be performed regularly to maintain the quality and performance of this product. Any parts that may be broken, missing, worn,
distorted, or contaminated in any way should not be used and all affected parts should be replaced immediately. Should the necessity of any repair be suspected; please
contact your local distributor.
Installation Tools
¼" Allen Key #2 Philips Screwdriver
(NOT PROVIDED) (NOT PROVIDED)
WARNING: It is the responsibility of the end user to ensure all aspects of installation are covered by following the full manual and reviewing warnings/notes found
!
at https://docs.amico.com/amico-aa-ahm-adjustable-height-patient-monitor-arm-manual.pdf for Adjustable Height Monitor (AHM) Arm, or https://docs.amico.
com/amico-aa-ssm-side-to-side-patient-monitor-arm-manual.pdf for Side to Side Monitor (SSM) Arm.

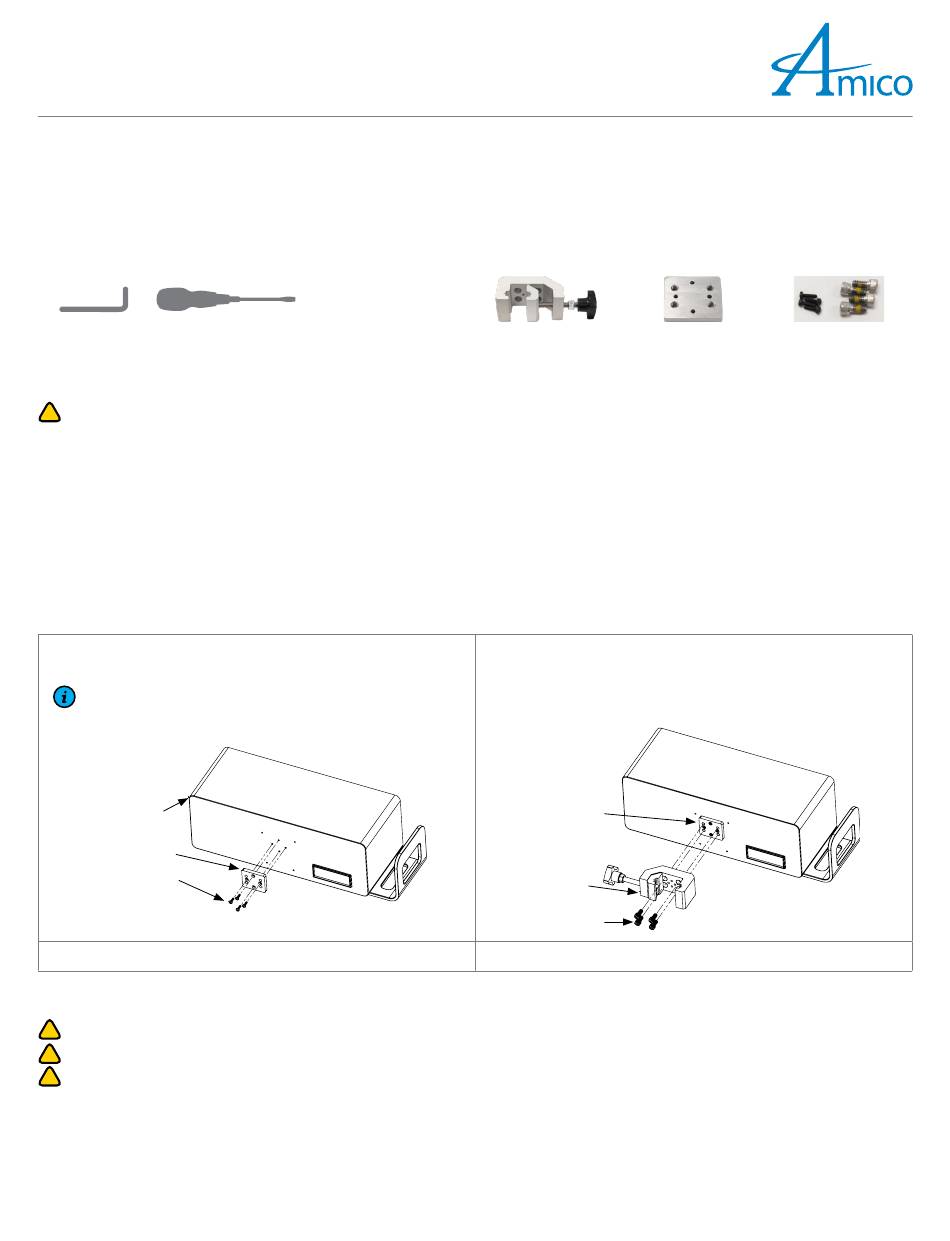

Installation Instructions (MR-SMR-MNT-02)
Specifications
Dimensions: (W x D x H): 5.1" x 2.5" x 1.6" (13.1 cm x 6.4 cm x 4.0 cm)
Weight: 1.1 lbs (0.5 kg)
Load Rating: 15.0 lbs (6.8 kg)
Mounting to Device
1. Align the SMR adapter plate to the back mounting holes of the Mindray SMR
Project #: 0925
Unit and fasten H-PHMS-M3-10 with #2 Philips Screwdriver. (Figure 1)
MR-SMR-MNT-02
Note: Do not overtight to avoid damaging the housing thread.
STEP 1:
2
Mindray SMR Unit
(NOT PROVIDED)
X-MR-SMR-MNT-PLT
1
H-PHMS-M3-10
3
Mounting Device Assembly to Platform
5
!
WARNING: DO NOT ATTEMPT TO MOUNT/REMOVE THE PLV-8-32 WHEN LOADED WITH ANY DEVICE.
!
WARNING: DO NOT MOUNT THE PLV-8-32 ABOVE THE PATIENTS HEAD.
!
WARNING: ENSURE POST IS STABLE AND PROPERLY INSTALLED BEFORE MOUNTING THE PLV-8-32.
ITEM NO. PART NUMBER
1 X-MR-SMR-MNT-PLT SMR ADAPTER PLATE
Mindray SMR (NOT
2 Mindray SMR Unit
PROVIDED)
PAN HEAD MACHINE SCREW,
3 H-PHMS-M3-10
PROJECTION
Figure 1
UNLESS SPECIFIED
