Thank you for purchasing this quality product. Be sure to check all packing materials
carefully for small parts, which may have come loose during shipment. Identify and count
all items and compare with the parts list shown below. It is recommended to have two
people during assembling and to remove the back and base of the furniture out from the box.
Please follow the drawings below to assemble the item
NO.
A
Seat
B
Backrest
C
Left Wing
D
Right Wing
ASSEMBLY INSTRUCTIONS
LINTON LEATHER COLLECTION
ITEM# : L1721-13
DESCRIPTION :
Parts List
DESCRIPTION
All images shown are for illustration purpose only.
Actual product may vary due to product enhancement.

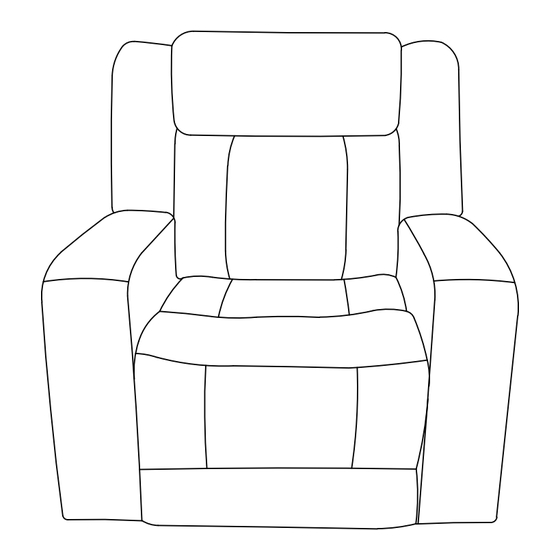

LINTON LEATHER GLIDER RECLINER
Page 1 of 2
SKETCH
Q'TY
1 PC
1 PC
1 PC
1 PC
Advertisement
Related Manuals for New Classic Furniture LINTON L1721-13
Summary of Contents for New Classic Furniture LINTON L1721-13
- Page 1 ASSEMBLY INSTRUCTIONS LINTON LEATHER COLLECTION ITEM# : L1721-13 DESCRIPTION : LINTON LEATHER GLIDER RECLINER Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which may have come loose during shipment. Identify and count all items and compare with the parts list shown below.
- Page 2 ASSEMBLY INSTRUCTIONS LINTON LEATHER COLLECTION ITEM# : L1721-13 DESCRIPTION : LINTON LEATHER GLIDER RECLINER Step 1: Attach Backrest (B) to the Seat (A). Attach the Left Wing (C) and Right Wing (D) to Backrest (B). Step 2: Open the footrest by pulling the handle. ON-PULL All images shown are for illustration purpose only.
