Thank you for purchasing this quality product. Be sure to check all packing materials
carefully for small parts, which may have come loose during shipment. Identify and count
all items and compare with the parts list shown below. It is recommended to have two
people during assembling and to remove the back and base of the furniture out from the box.
Please follow the drawings below to assemble the item
NO.
A
Seat
B
Backrest
C
Left ear
D
Right ear
E
Plug
F
Transformer
ASSEMBLY INSTRUCTIONS
JOSHUA LEATHER COLLECTION
ITEM# : L1716-13P2
DESCRIPTION :
Parts List
DESCRIPTION
All images shown are for illustration purpose only.
Actual product may vary due to product enhancement.

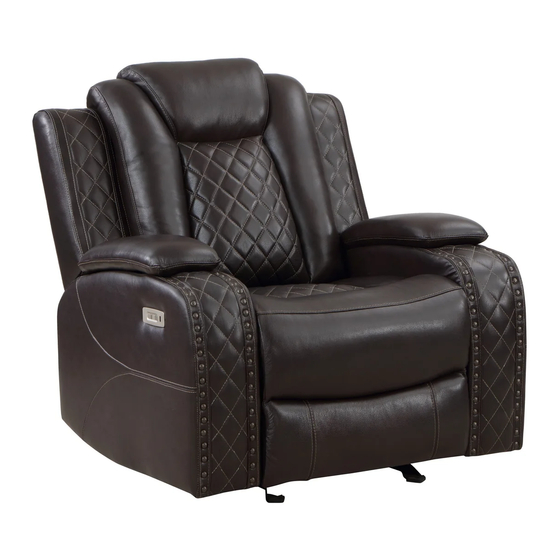

JOSHUA LEATHER GLIDER RECLINER
W/ PWR FR & HR
Page 1 of 2
SKETCH
Q'TY
1 PC
1 PC
1 PC
1 PC
1 PC
1 PC
Advertisement
Table of Contents
Related Manuals for New Classic Furniture JOSHUA LEATHER L1716-13P2
Summary of Contents for New Classic Furniture JOSHUA LEATHER L1716-13P2
- Page 1 ASSEMBLY INSTRUCTIONS JOSHUA LEATHER COLLECTION ITEM# : L1716-13P2 DESCRIPTION : JOSHUA LEATHER GLIDER RECLINER W/ PWR FR & HR Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which may have come loose during shipment. Identify and count all items and compare with the parts list shown below.
- Page 2 ASSEMBLY INSTRUCTIONS JOSHUA LEATHER COLLECTION ITEM# : L1716-13P2 DESCRIPTION : JOSHUA LEATHER GLIDER RECLINER W/ PWR FR & HR Step 1: Step 2: Attach Backrest (B) to the Seat (A) Attach the Left ear (C) and Right ear (D) to Backrest (B) Step 3: Connect the power and Open the footrest or move the headrest by pressing the button.
