Thank you for purchasing this quality product. Be sure to check all packing
materials carefully for small parts, which may have come loose during
shipment. Identify and count all items and compare with the parts list and/or
hardware list shown
assembling and to remove the backs and base of the furniture out from the
box.
Please follow the drawings below to assemble the item
NO.
A
B
C
D
E
ASSEMBLY INSTRUCTIONS
CICERO COLLECTION
ITEM:L4231-25P2

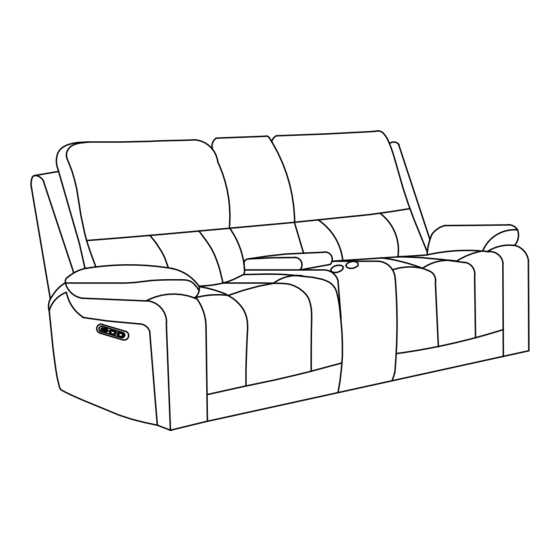

DESCRIPTION:CICERO CONSOLE LOVESEAT W/ PWR
FR & HR
. It is recommended to have two people during
below
Parts List
DESCRIPTION
Q'TY
1
1
1
1
2
All images shown are for illustration purpose only.
Actual product may vary due to product enhancement.
SKETCH
Advertisement
Table of Contents
Related Manuals for New Classic Furniture CICERO L4231-25P2
Summary of Contents for New Classic Furniture CICERO L4231-25P2
- Page 1 ASSEMBLY INSTRUCTIONS CICERO COLLECTION ITEM:L4231-25P2 DESCRIPTION:CICERO CONSOLE LOVESEAT W/ PWR FR & HR Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which may have come loose during shipment. Identify and count all items and compare with the parts list and/or hardware list shown .
- Page 2 Step 1: There is a zipper at the bottom of the console, please open the zipper to find the console back and take it out for assembly. Then open the console storage to find the hardware to assemble the console back. Step 2: Please align and insert the metal bracket (F) on the backrest onto the metal bracket (M) of .
- Page 3 Please connect the cord from the seat (D) with the cord from the Power Supply (F), then connect Cable (G) to the Power Supply (F). All images shown are for illustration purpose only. Actual product may vary due to product enhancement.
