Thank you for purchasing this quality product. Be sure to check all packing materials
carefully for small parts, which may have come loose during shipment. Identify and count
all items and compare with the parts list shown below. It is recommended to have two
people during assembling and to remove the back and base of the furniture out from the box.
Please follow the drawings below to assemble the item
NO.
A
Seat
B
Backrest
C
Left Wing
D
Right Wing
E
Plug
F
Transformer
ASSEMBLY INSTRUCTIONS
LINTON LEATHER COLLECTION
ITEM# : L1721-13P1
DESCRIPTION :
Parts List
DESCRIPTION
All images shown are for illustration purpose only.
Actual product may vary due to product enhancement.

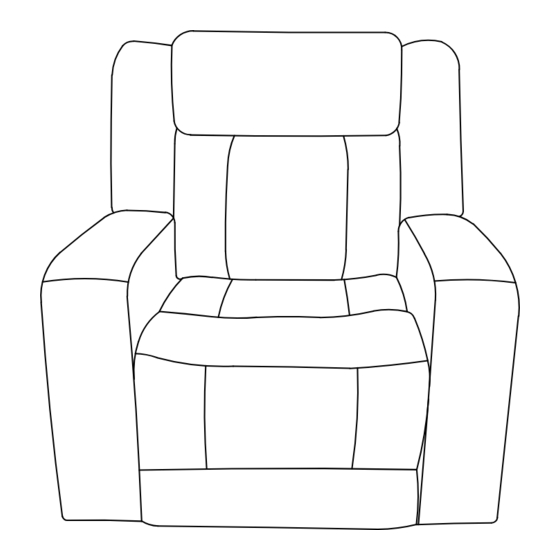

LINTON LEATHER GLIDER RECLINER
W/ PWR FR
Page 1 of 2
SKETCH
Q'TY
1 PC
1 PC
1 PC
1 PC
1 PC
1 PC
Advertisement
Related Manuals for New Classic Furniture LINTON LEATHER L1721-13P1
Summary of Contents for New Classic Furniture LINTON LEATHER L1721-13P1
- Page 1 ASSEMBLY INSTRUCTIONS LINTON LEATHER COLLECTION ITEM# : L1721-13P1 DESCRIPTION : LINTON LEATHER GLIDER RECLINER W/ PWR FR Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which may have come loose during shipment. Identify and count all items and compare with the parts list shown below.
- Page 2 ASSEMBLY INSTRUCTIONS LINTON LEATHER COLLECTION ITEM# : L1721-13P1 DESCRIPTION : LINTON LEATHER GLIDER RECLINER W/ PWR FR Step 1: Attach Backrest (B) to the Seat (A). Attach the Left Wing (C) and Right Wing (D) to Backrest (B). Step 2: Open the Footrest by pressing the power button on/off.
