Grizzly T27327 Instruction Sheet

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T27327 Bed Extension extends the bed
length of the Model T25920 and T25926 benchtop
lathes to accommodate longer workpieces.
Inventory
(Figure 1)
A. Bed Extension ............................................ 1
B. Rubber Feet ............................................... 2
C. Lock Washers 10mm .................................. 2
B

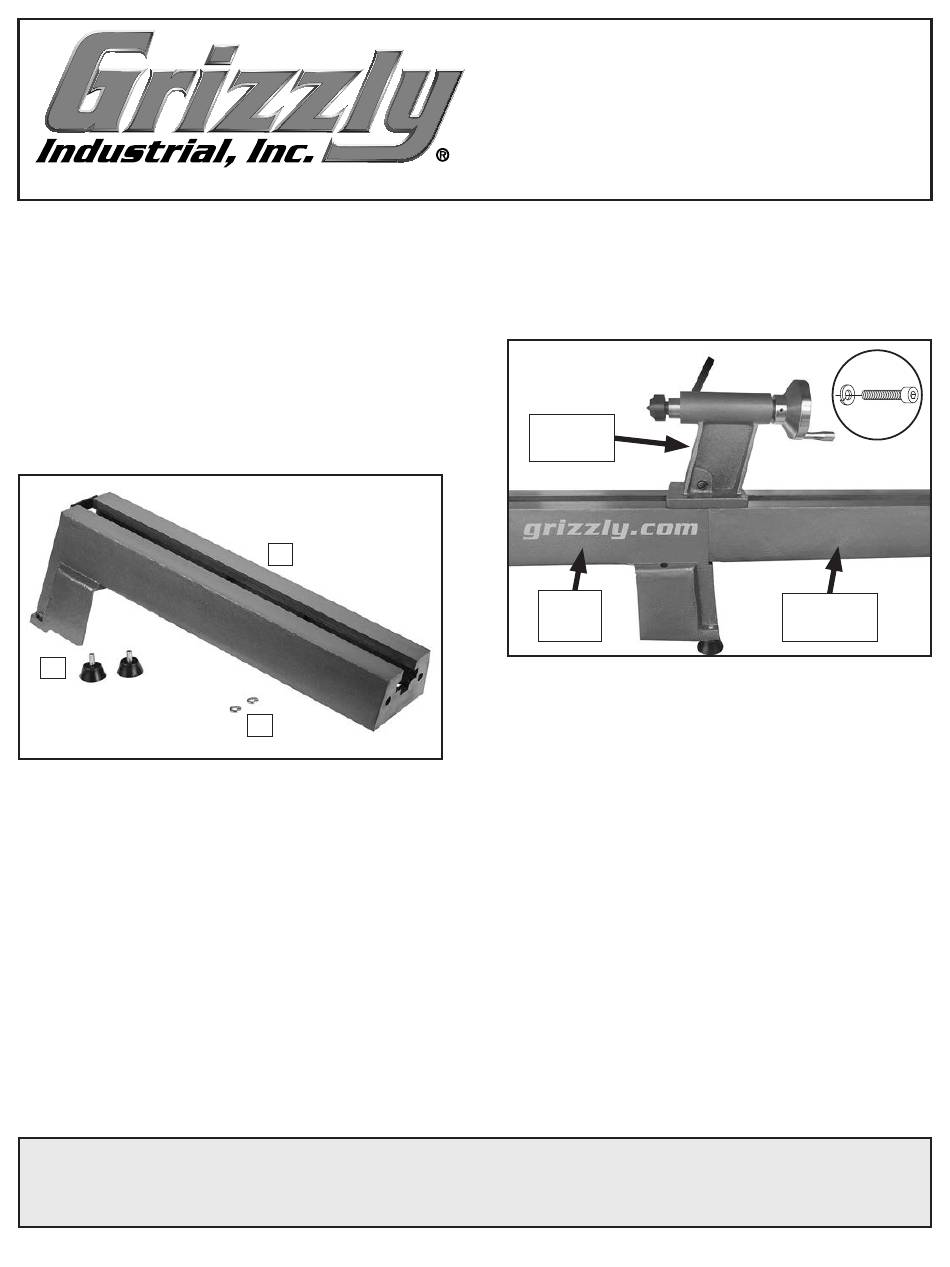

Figure 1. Model T27327 inventory.
Installation
Thread rubber feet into bottom of bed
1.
extension.
Remove (2) M10-1.5 x 12 cap screws secur-
2.
ing retaining plate to tailstock end of lathe
bed.
Secure bed extension to lathe bed with both
3.
cap screws removed in previous step and (2)
10mm lock washers. Finger-tighten only for
now.
COPYRIGHT © JUNE, 2015 BY GRIZZLY INDUSTRIAL, INC., REVISED FEBRUARY, 2024 (CM)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
A
C
(FOR MODELS MFD. SINCE 05/23) #JH17496 PRINTED IN CHINA
***Keep for Future Reference***
MODEL T27327
22" BED EXTENSION
FOR T25920 & T25926
INSTRUCTION SHEET
Center tailstock over bed extension and lathe
4.
(see Figure 2), and tighten clamp handle.
This will align bed extension and lathe bed to
bottom of tailstock.
Lathe
Tailstock
Lathe
Bed
Figure 2. Tailstock centered over extension table
and lathe bed (Model T25926 shown).
Using a 6mm hex wrench, fully tighten bed
5.
extension cap screws.
Loosen tailstock clamp handle, and slide
6.
tailstock over length of bed extension and
lathe bed.
— If tailstock catches where lathe and bed
extension meet, loosen fasteners and
repeat Steps 4–6 until it slides smoothly.
Place straightedge over bed extension and
7.
lathe bed to verify they are parallel and
aligned.
x 2
Bed
Extension
V2.02.23
