Grizzly T28173 Instructions Manual

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Rails Rollers Reversible Work Stop
T28174

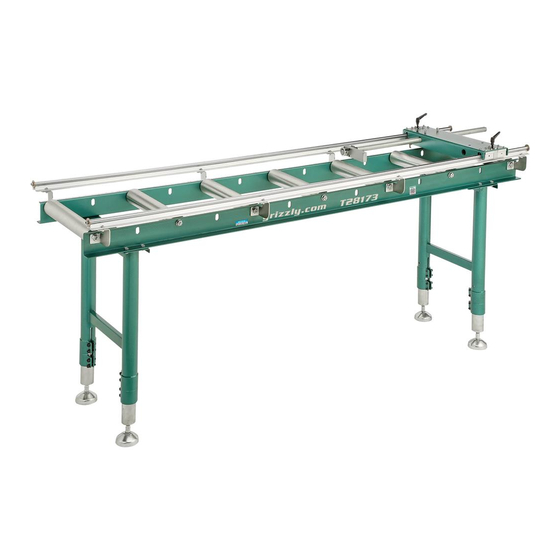

Figure 1. T28173/T28174 Roller Table features.
Introduction
The Model T28173/T28174 Roller Table (see
Figure 1) allow users to feed long material into a
workbench, saw, or other device across steel sup-
port rollers using a rail-mounted work-stop system
for repeatable cuts.
Support rollers are installed on 12
Adjustable legs and steel feet allow a working
height of 28" to 48".
The T28378 Slotted Mounting Plate (not included)
allows connection of the roller table to a machine
or workbench.
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
Carriage
T28173
Adjustable
Legs & Feet
⁄ " centers.
5
8
COPYRIGHT © JANUARY, 2018 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
#KB19284 PRINTED IN CHINA
MODEL T28173/T28174
ROLLER TABLES
INSTRUCTIONS
FOR MODELS MFD. SINCE 10/17
B
C D
Figure 2. T28173/T28174 inventory.
T28173 & T28174 Inventory
Description (Figure 2)
A. Roller Table Assembly 78" (T28173) .......... 1
Roller Table Assembly 118" (T28174) ......... 1
B. Adjustable Leg Assemblies (T28173) ......... 2
Adjustable Leg Assemblies (T28174) ......... 3
C. Adjustable Handles 62L, M8-1.25 x 32 ...... 2
D. Hex Nuts M8-1.25 (T28173) ........................ 8
Hex Nuts M8-1.25 (T28174) ...................... 12
E. Flat Washers 8mm (T28173) ...................... 8
Flat Washers 8mm (T28174) .................... 12
F. Hex Bolts M8-1.25 x 16 (T28173) ............... 8
Hex Bolts M8-1.25 x 16 (T28174) ............. 12
G. Hex Wrench 6mm ....................................... 1
Specifications
Model Length Weight Capacity Rollers
T28173 78" 128 lbs. 1540 lbs.
T28174 118" 154 lbs. 1540 lbs.
A
E F G
7
10
V1.01.18
Qty
