For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com

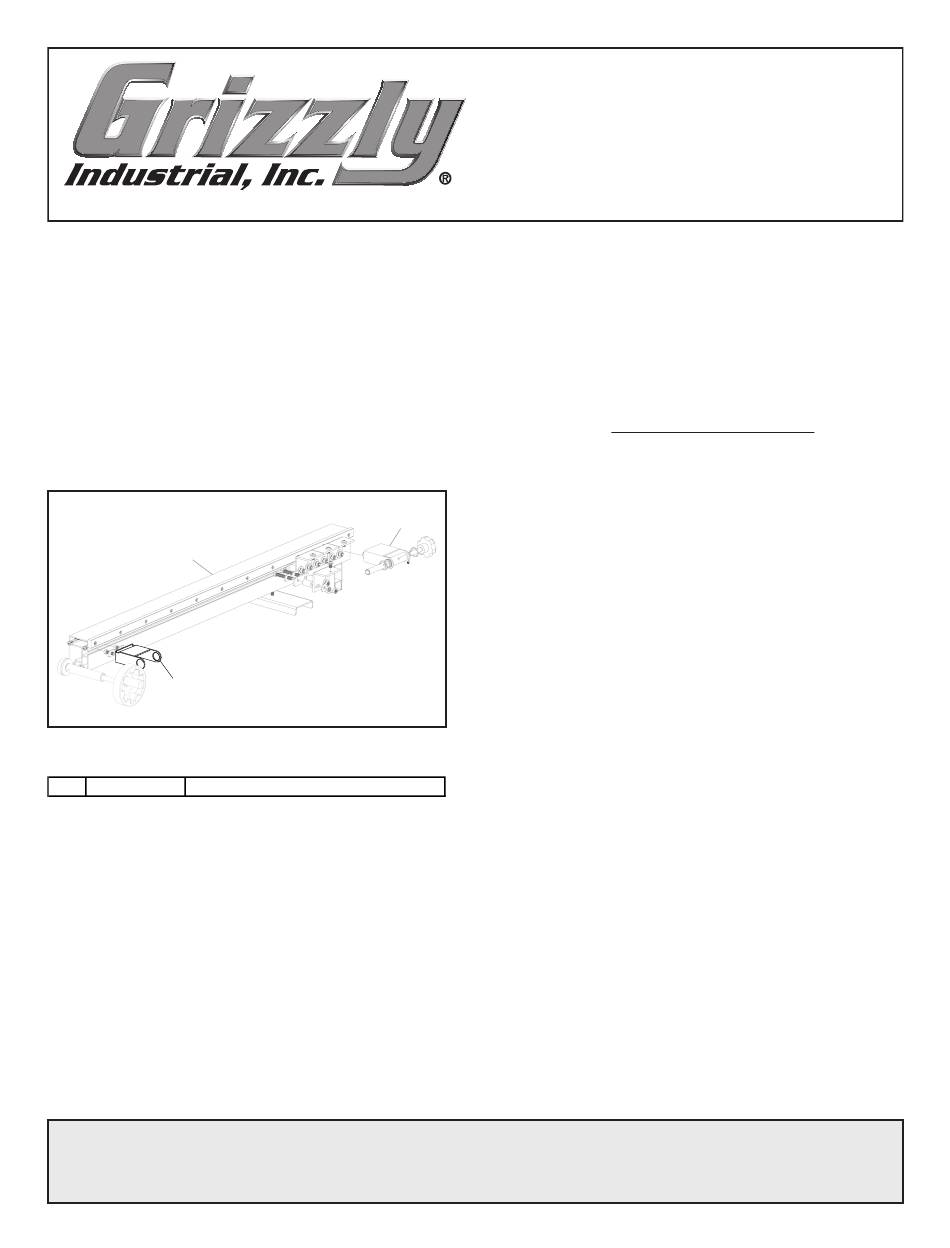

The following change was recently made since the owner's manual was printed:
•
Part has changed.
Aside from this information, all other content in the owner's manual applies and MUST be read and under-
stood for your own safety. IMPORTANT: Keep this update with the owner's manual for future reference.
For questions or help, contact our Tech Support at (570) 546-9663 or techsupport@grizzly.com.
Revised Parts
25V2
45V2
REF PART #
DESCRIPTION
45V2 PT27313045V2 CENTER BRACKET W/GROOVE V2.02.24
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
READ THIS FIRST
45
COPYRIGHT © FEBRUARY, 2024 BY GRIZZLY INDUSTRIAL, INC.
#LW23084 PRINTED IN CHINA
Model T27313
***IMPORTANT UPDATE***
For Machines Mfd. Since 02/24
and Owner's Manual Revised 04/16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T27313 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Grizzly T27313

Summary of Contents for Grizzly T27313

  • Page 1 ***IMPORTANT UPDATE*** For Machines Mfd. Since 02/24 and Owner's Manual Revised 04/16 For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com The following change was recently made since the owner's manual was printed: •...

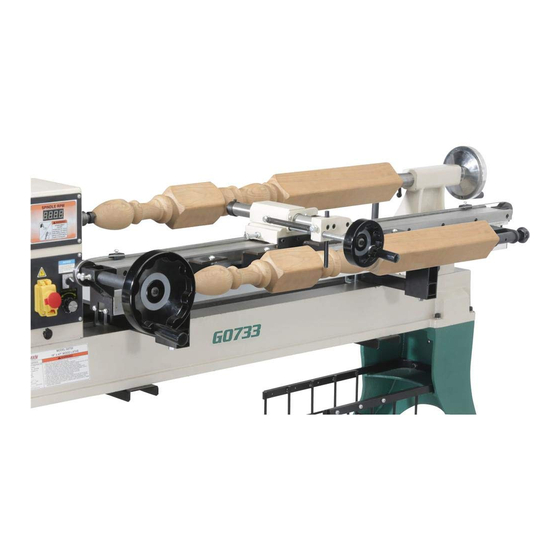

  • Page 2 (For models manufactured since 03/16) (Model T27313 shown installed on Model G0733) COPYRIGHT © MARCH, 2015 BY GRIZZLY INDUSTRIAL, INC. REVISED APRIL, 2016 (MN) WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
  • Page 3 This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators. Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

  • Page 4: Table Of Contents

    Table of Contents INTRODUCTION ..........................2 Machine Description ........................2 Contact Info ..........................2 Manual Accuracy ........................2 Controls & Components ......................3 SECTION 1: SAFETY ........................4 Safety Instructions for Machinery ....................4 Additional Safety for Copy Attachments ..................6 SECTION 2: SETUP .........................

  • Page 5: Introduction

    The T27313 is designed to be mounted to the G0733, G0462, G0584 and If you find this to be the case, and the difference G5979 wood lathes.

  • Page 6: Controls & Components

    K. Template Support: Brackets that allow tem- plates to securely mount to copy attachment. Figure 1. T27313 controls and components. A. Longitudinal Feed Cable: Cable that con- nects carriage to longitudinal feed wheel allowing carriage to travel along copy attach- ment bed.

  • Page 7: Section 1: Safety

    Everyday ery. Never operate under the influence of drugs or eyeglasses are NOT approved safety glasses. alcohol, when tired, or when distracted. Model T27313 (Mfd. Since 12/15)
  • Page 8 EXPERIENCING DIFFICULTIES. If at any time debris. Make sure they are properly installed, you experience difficulties performing the intend- undamaged, and working correctly BEFORE ed operation, stop using the machine! Contact our operating machine. Technical Support at (570) 546-9663. Model T27313 (Mfd. Since 12/15)

  • Page 9: Additional Safety For Copy Attachments

    MEASURING WORKPIECE. Only measure work- SAFE CLEARANCES. Before starting spindle, piece after it has stopped. Trying to measure a verify workpiece has adequate clearance by spinning workpiece increases entanglement risk. hand-rotating it through its entire range of motion. Model T27313 (Mfd. Since 12/15)

  • Page 10: Section 2: Setup

    Grizzly or the shipping agent. You MUST have the original pack- Box 1 (Figure 2) aging to file a freight claim.

  • Page 11: Cleanup

    Figure 3. T23692 Orange Power Degreaser. off the rest with the rag. Repeat Steps 2–3 as necessary until clean, then coat all unpainted surfaces with a quality metal protectant to prevent rust. Model T27313 (Mfd. Since 12/15)

  • Page 12: Site Considerations

    See below for required space allocation. ⁄ " 55" Figure 4. Working clearances (Model T27313 shown attached to example wood lathe). Model T27313 (Mfd. Since 12/15)

  • Page 13: Assembly

    Figure 5 shows the sup- port arm orientation for each of the four wood lathes onto which the model T27313 mounts. The arms will be mounted on top of the lathe bed with the mounting holes extending approximately 6"...
  • Page 14 1.5 x 45 T-bolts. T-Bolt T-Bolt Channel Figure 8. T-bolt installed into slot on bottom of copy attachment (1 of 2). Turn copy attachment right side up, then insert T-bolts into support arm holes. -11- Model T27313 (Mfd. Since 12/15)
  • Page 15 Attachment 3" Gauge Board Figure 12. Securing cutting tool. Lathe Bed 10. Rough alignment is now complete. Please Figure 10. Use of gauge boards for alignment. proceed to Performing Final Alignment on Page 13. -12- Model T27313 (Mfd. Since 12/15)
  • Page 16 Continue to test and adjust copy attachment until it is evenly spaced along length of turn- ing square. Once adjustments are complete, ensure all mounting bolts are securely tightened. Figure 13. Aligning lathe to copy attachment. -13- Model T27313 (Mfd. Since 12/15)

  • Page 17: Section 3: Operations

    Regardless of the content in this sec- tion, Grizzly Industrial will not be held liable for accidents caused by lack of training. -14- Model T27313 (Mfd. Since 12/15)

  • Page 18: Workpiece Inspection

    You will need to make the ejected from the lathe causing impact injures. cuts with a lathe chisel on your tool rest, prior Only turn concentric workpieces! to installing the copy attachment. -15- Model T27313 (Mfd. Since 12/15)

  • Page 19: Copy Stylus

    Tighten M5-.8 x 10 set screw to secure sty- lus. Run stylus along length of master spindle or template. — If stylus does not contact master spindle or template details, move cutting tool accordingly, and repeat Steps 3–4. -16- Model T27313 (Mfd. Since 12/15)

  • Page 20: Basic Operation

    Adjust crossfeed handwheel until stylus comes in contact with template in its desired Stylus position. Move from high points towards areas with greater depth of cut Figure 17. Recommended direction of stylus travel. -17- Model T27313 (Mfd. Since 12/15)
  • Page 21 Refer to your owner's manual for complete workpiece, back off cutting tool slightly and setup, operating, and safety instructions. try again. Be conservative when removing Serious injury could occur if you do not fol- stock. low these instructions. -18- Model T27313 (Mfd. Since 12/15)

  • Page 22: Section 4: Accessories

    T-9 4 oz. Spray ® To reduce this risk, only install accessories H3788—G96 Gun Treatment 12 oz. Spray ® recommended for this machine by Grizzly. H3789—G96 Gun Treatment 4.5 oz. Spray ® NOTICE Refer to our website or latest catalog for additional recommended accessories.

  • Page 23: Section 5: Maintenance

    Figure 24. Location of leadscrews and slides. Cleaning & Protecting Cleaning the Model T27313 is relatively easy. Vacuum excess wood chips and sawdust, and wipe off the remaining dust with a dry cloth. If any resin has built up, use a resin dissolving cleaner to remove it.

  • Page 24: Section 6: Service

    2. Frequently clean away chips that load up during turning operations. 3. Slides are dry and in need of lubrication. 3. Lubricate slides. 4. Loosen gib screw(s) slightly (Page 1). 4. Gibs are too tight. -21- Model T27313 (Mfd. Since 12/15)

  • Page 25: Cable Tension

    Cable Tension ing or wobble. Bolt —If carriage binds or wobbles, repeat Step 3. Figure 25. Adjusting carriage cable tension. When adjustments are complete, tighten the hex nuts while maintaining the set screw position. -22- Model T27313 (Mfd. Since 12/15)

  • Page 26: Section 7: Parts

    Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here are available for purchase. Call (800) 523-4777 or visit our online parts store at www.grizzly.com to check for availability.
  • Page 27 FLAT WASHER 6MM PT27313050 T-BOLT M10-1.5 X 45 PT27313022 CHIP GUARD PT27313052 LONGITUDINAL FEED PULLEY PT27313024 COPY ATTACHMENT BED PT27313053 HEX NUT M10-1.5 25V2 PT27313025V2 FRONT GUIDE RAIL V2.03.16 PT27313054 FENDER WASHER 10MM PT27313028 PULLEY SHAFT -24- Model T27313 (Mfd. Since 12/15)

  • Page 28: Longitudinal Drive Breakdown

    Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes off or becomes unreadable, the owner of this machine MUST replace it in the original location before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com. -25-...

  • Page 29: Carriage Breakdown

    PT27313255 CUTTING TOOL PT27313242 SET SCREW M8-1.25 X 12 PT27313256 HANDWHEEL 98MM DIA DISHED (PLASTIC) PT27313243 HANDWHEEL HANDLE PT27313257 FLAT HD SCR M6-1 X 8 PT27313244 SET SCREW M5-.8 X 10 PT27313258 MACHINE ID LABEL -26- Model T27313 (Mfd. Since 12/15)
  • Page 30 Would you recommend Grizzly Industrial to a friend? _____ Yes _____No Would you allow us to use your name as a reference for Grizzly customers in your area? Note: We never use names more than 3 times. _____ Yes _____No 10.
  • Page 31 FOLD ALONG DOTTED LINE Place Stamp Here GRIZZLY INDUSTRIAL, INC. P.O. BOX 2069 BELLINGHAM, WA 98227-2069 FOLD ALONG DOTTED LINE Send a Grizzly Catalog to a friend: Name_______________________________ Street_______________________________ City______________State______Zip______ TAPE ALONG EDGES--PLEASE DO NOT STAPLE...

  • Page 32: Warranty & Returns

    WARRANTY & RETURNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance.
