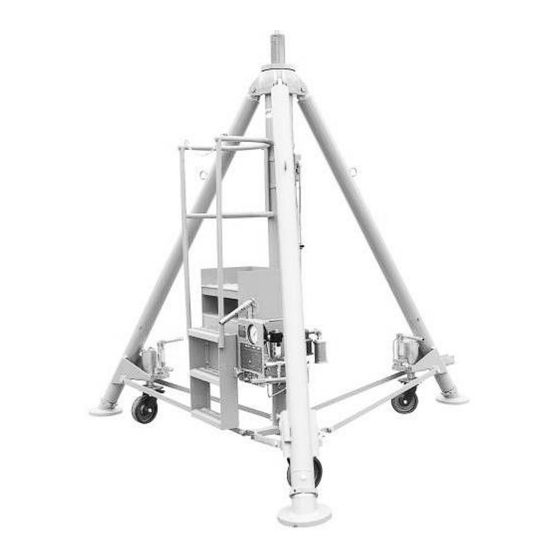

Single stage fixed height hydro-mechanical aviation tripod jack
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

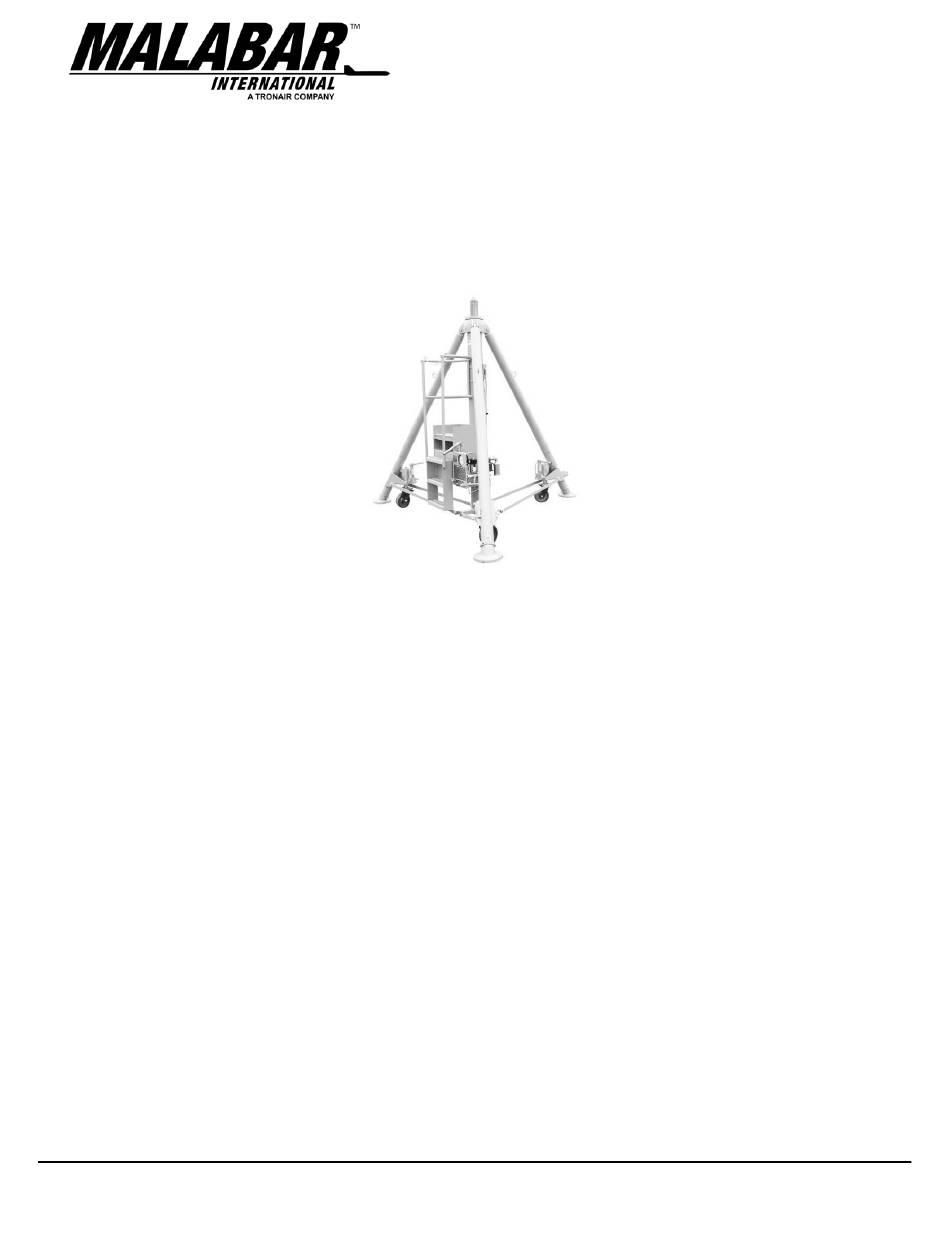

OPERATION & SERVICE MANUAL
Model: 8810B
Single Stage Fixed Height
Hydro – Mechanical
Aviation Tripod jack
04/2023 − Rev. 03
Malabar International
Phone: (419) 866-6301 | 800-426-6301
1 Air Cargo Pkwy East
Web: www.malabar.com
Swanton, OH 43558
Email: sales@malabar.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MALABAR 8810B and is the answer not in the manual?

Questions and answers

Related Manuals for Tronair MALABAR 8810B

Summary of Contents for Tronair MALABAR 8810B

  • Page 1 OPERATION & SERVICE MANUAL Model: 8810B Single Stage Fixed Height Hydro – Mechanical Aviation Tripod jack 04/2023 − Rev. 03 Malabar International Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.malabar.com Swanton, OH 43558 Email: sales@malabar.com...
  • Page 2 REVISION DATE TEXT AFFECTED 11/2018 Original release Modified Parts List – Figure 13 08/2019 Modified Parts List – Figure 6 04/2023...

  • Page 3: Table Of Contents

    Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up TABLE OF CONTENTS PAGE PRODUCT INFORMATION .............................. 1 DESCRIPTION ..............................1 MODEL & SERIAL NUMBER ..........................1 MANUFACTURER .............................. 1 SPECIFICATIONS .............................. 1 SAFETY INFORMATION ..............................2 USAGE AND SAFETY INFORMATION ......................

  • Page 4: Product Information

    S/N 13000 and up This product can not be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., it suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur.

  • Page 5: Safety Information

    Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up SAFETY INFORMATION USAGE AND SAFETY INFORMATION To insure safe operations please read the following statements and understand their meaning. Also refer to your equipment manufacturer’s manual for other important safety information. This manual contains safety precautions which are explained below.

  • Page 6: Training

    Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up TRAINING TRAINING REQUIREMENTS The employer of the operator is responsible for providing a training program sufficient for the safe operation of the unit. TRAINING PROGRAM The employer provided operator training program should cover safety procedures concerning use of the unit in and around the intended aircraft at the intended aircraft servicing location.
  • Page 7 Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up OPERATING PROCEDURES (continued) To raise the load: The jack is equipped with an adjustable hand pump. The hand pump handle length can be varied by inserting the quick release pin through the clamp and appropriate hole along the handle (see figure 4).

  • Page 8: Trouble Shooting

    Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up TROUBLE SHOOTING TROUBLE PROBABLE CAUSE REMEDY Release valve open Close valve firmly (Oil passing back into reservoir) Intake valve open. Pump rapidly to flush dirt off (Oil passing back into reservoir) Discharge valve open Pump rapidly to flush dirt off...

  • Page 9: Maintenance

    Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up MAINTENANCE SERVICING Servicing the jack consists primarily of the following: When in use the jack and hydraulic caster (if so equipped) reservoirs should be kept at the proper level with hydraulic fluid MIL-PRF-5606 or approved equivalent.

  • Page 10: Testing

    Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up MAINTENANCE (testing) TESTING: Place jack in a load indicating test fixture. Make sure the test adapter is 3/4 inch male spherical radius. Operate jack hand pump to extend plunger against the test adapter. Make sure ship adapter and test adapter are correctly mated.

  • Page 11: Provision Of Spares

    Website: www.malabar.com For Spare Parts, Operations & Service Manuals or Service Needs: Scan the QR code or visit Tronair.com/aftermarket RECOMMENDED SPARE PARTS LISTS The following spare parts are recommended and available upon request. Reference the following page(s) for Replacement Parts and Kits available.

  • Page 12: Load Gauge Kit

    Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up 8.2.3 Load Gauge Kit Part Number Description 73358 Load gauge 424-001 Shut- off valve 8.2.4 Adjustable Foot Kit Part Number Description 75941 Sticker, footpad 79225 Level Assembly 8.2.5...

  • Page 13: In Service Support

    Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up IN SERVICE SUPPORT Contact Malabar, Inc. for technical services and information. See Section 1.3 − Manufacturer. 10.0 GUARANTEES/LIMITATION OF LIABILITY Seller warrants each new product of its manufacture to be free from defects in material or workmanship, under proper, reasonable, and normal use and service.
  • Page 14 Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up PNEUMATIC / HYDRAULIC DIAGRAM AIR RELIEF VALVE SYSTEM RELIEF VALVE AIR VALVE THERMAL RELIEF VALVE LUBRICATOR CYLINDER ASSEMBLY AIR PUMP LOAD GAUGE MUFFLER SHUT-OFF VALVE OIL SCREEN RELEASE VALVE VALVE BLOCK...
  • Page 15 Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up PNEUMATIC / HYDRAULIC DIAGRAM WITH REMOTE CONTROL AIR RELIEF VALVE SYSTEM RELIEF VALVE AIR VALVE THERMAL RELIEF VALVE LUBRICATOR CYLINDER ASSEMBLY AIR PUMP LOAD GAUGE MUFFLER SHUT-OFF VALVE OIL SCREEN...
  • Page 16 Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up HYDRAULIC CASTER DIAGRAM VALVE BLOCK RELEASE VALVE HAND PUMP METERING ORIFICE RELIEF VALVE SHOCK ABSORBER CYLINDER ASSEMBLY 04/2023 | Rev. 03 Page | 13...
  • Page 17 Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up This page left blank intentionally. 04/2023 | Rev. 03 Page | 14...
  • Page 18 Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up Parts List – Figure 1A When ordering replacement parts/kits, please specify model, serial number and color of your unit.  PART OF REPAIR PARTS KIT 04/2023 | Rev.

  • Page 19: Cylinder Assembly

    Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up Parts List – Figure 1A When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description 881099A CYLINDER ASSEMBLY 56010-2 VALVE BLOCK ASSEMBLY...
  • Page 20 Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up Parts List – Figure 1B When ordering replacement parts/kits, please specify model, serial number and color of your unit. 04/2023 | Rev. 03 Page | 17...
  • Page 21 Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up Parts List – Figure 1B When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description 79562 FILLER CAP WITH DIPSTICK 881029 BRACE...
  • Page 22 Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up Parts List – Figure 2 When ordering replacement parts/kits, please specify model, serial number and color of your unit.  PART OF REPAIR PARTS KIT 04/2023 | Rev.
  • Page 23 Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up Parts List – Figure 2 When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description 881099A Cylinder Assembly;...
  • Page 24 Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up Parts List – Figure 3 When ordering replacement parts/kits, please specify model, serial number and color of your unit.  PART OF REPAIR PARTS KIT 04/2023 | Rev.
  • Page 25 Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up Parts List – Figure 3 When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description 56010-2 Valve Block Assembly;...
  • Page 26 Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up Parts List – Figure 4 When ordering replacement parts/kits, please specify model, serial number and color of your unit.  PART OF REPAIR PARTS KIT 04/2023 | Rev.

  • Page 27: Self Tapping Screw

    Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up Parts List – Figure 4 When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description 79571-2 Hand Pump Assembly;...
  • Page 28 Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up Parts List – Figure 5 When ordering replacement parts/kits, please specify model, serial number and color of your unit. *PARTS ARE LOCATED INSIDE RESERVOIR TANK ...
  • Page 29 Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up Parts List – Figure 5 When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description 73395 Air Pump Kit;...
  • Page 30 Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up Parts List – Figure 6 When ordering replacement parts/kits, please specify model, serial number and color of your unit.  PART OF REPAIR PARTS KIT 04/2023 | Rev.
  • Page 31 Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up Parts List – Figure 6 When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description 73422 Load Gauge Kit;...
  • Page 32 Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up Parts List – Figure 7 When ordering replacement parts/kits, please specify model, serial number and color of your unit. 04/2023 | Rev. 03 Page | 29...
  • Page 33 Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up Parts List – Figure 7 When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description 881039 Adjustable Foot Kit Assembly;...
  • Page 34 Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up Parts List – Figure 8 When ordering replacement parts/kits, please specify model, serial number and color of your unit. 04/2023 | Rev. 03 Page | 31...
  • Page 35 Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up Parts List – Figure 8 When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description 881050 Adjustable Foot Kit with Hydraulic Caster Assembly;...
  • Page 36 Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up Parts List – Figure 9 When ordering replacement parts/kits, please specify model, serial number and color of your unit. PART OFHYDRAULIC CASTER REPAIR KIT *APPLY LOCKTITE NO.
  • Page 37 Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up Parts List – Figure 9 When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description 881800 Hydraulic Caster Assembly;...
  • Page 38 Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up Parts List – Figure 10 When ordering replacement parts/kits, please specify model, serial number and color of your unit. PART OFHYDRAULIC CASTER REPAIR KIT 04/2023 | Rev.
  • Page 39 Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up Parts List – Figure 10 When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description 881808 Valve Block and Hand Pump Assembly;...
  • Page 40 Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up Parts List – Figure 11 When ordering replacement parts/kits, please specify model, serial number and color of your unit. *37º FLARE END OF ITEM 2 TO BE INSERTED INTO ITEM 1 Item Part Number Description...
  • Page 41 Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up Parts List – Figure 12 When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description 881036 Ladder Kit Assembly;...
  • Page 42 Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up Parts List – Figure 13 When ordering replacement parts/kits, please specify model, serial number and color of your unit. 04/2023 | Rev. 03 Page | 39...
  • Page 43 Model: 8810B Single Stage Fixed Height, Hydro - Mechanical Aviation Tripod Jack S/N 13000 and up Parts List – Figure 13 When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description 881031 Remote Control Kit Assembly;...
  • Page 45 APPENDIX I Safety Data Sheet MIL-PRF-5606 Hydraulic Fluid...
