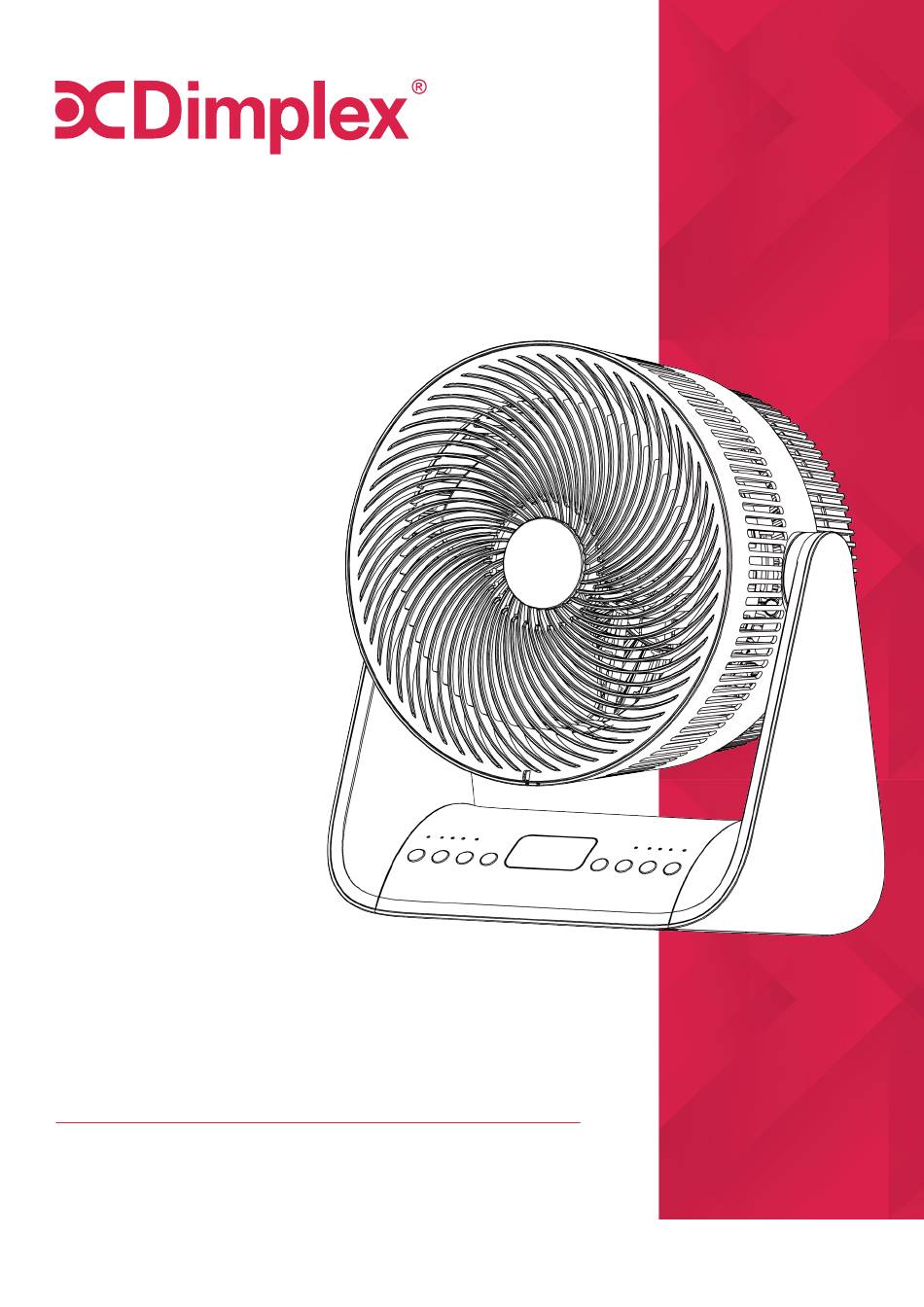

- Page 1 INSTRUCTION MANUAL Heat & Cool Air Circulator Fan Model: DCAC29HC For domestic household use only. Issue 1...
- Page 2 IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. Note also the information presented on the appliance CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY Please read the operating instructions carefully before using your air circulator for the first time and keep them in a safe place.
- Page 3 • Please ask a professional service agent to repair the product. Improper repair may cause danger to users. • Disconnect the appliance from mains power whenever it is not in use, before relocating it, and before cleaning. • Operate the appliance only at the voltage specified on the rating label. •...
- Page 4 WARNING - KEEP BATTERIES OUT OF REACH OF CHILDREN • Swallowing may lead to serious injury in as little as 2 hours or death, due to chemical burns and potential perforation of the oesophagus. • If you suspect your child has swallowed or inserted a button battery immediately call the 24-hour Poisons Information Centre on 13 11 26 (in Australia) or 0800 764 766 (in New Zealand) for fast, expert advice.
- Page 5 Exposed to the Near water If the power cable weather outdoors wires are frayed or cut Where small children No extension leads or Where the power may be left unattended power boards cable may be damaged On a slope or Where there is risk Where it may be uneven surface...
-
Page 6: Specification
Specification Model no. DCAC29HC Power supply 220-240V~, 50Hz 35W (cooling) Rated power 1000/2000W (heating) Speed settings 3 (cooling) Heat settings Timer 1-12 hours Air movement /min Air speed (max) ≥6m/s Vertical oscillation (manual) Horizontal oscillation (automatic) Noise level (MAX) ≤50dB Weight (net) 4.0kg... -
Page 7: How It Works
Most fans simply lack the aerodynamics to keep the air in the room in motion. As opposed to blowing air directly in contact with it, our Dimplex air circulators create a 3D oscillating draught in the form of an invisible jet stream. - Page 8 Parts (1) Grille Cover (6) Rear Shell (2) Front Grille (7) Rear Grille (3) Display Panel (8) Remote Storage (4) Display Lights (9) Swing Bracket (5) Control Buttons (10) Power Cord (10)
-
Page 9: Remote Control
Control Panel & LED Display On/Standby Temp/Timer Increase Fan Speed (Cooling) T emp/Timer Function Oscillation function Heater function Temp/Timer Decrease Display On/Off button Remote Control On/Standby Oscillation function Fan Speed button Heater function Temperature/Timer decrease Temperature/Timer increase Display On/Off button Temperature/Timer toggle To remove the cover of the remote, remove the screw. -
Page 10: Operation
Operation FUNCTION After the power is turned on, the device beeps twice and enters the standby state. All functions and displays are turned off. (note: If you press the On/Standby button within 10 seconds after turning off the heater or directly press the On/Standby button in the heating state, the fan will delay 10 seconds before turning off. -
Page 11: Temperature Setting
Operation In the standby state: the fan enters the schedule power-on setting function. The adjustment button "-" and "+" can be used to adjust the schedule time up or down. The adjustment is not cyclic. The schedule setting range is 1-12H with a step size of 1H. -
Page 12: Screen Off
Operation c) The ECO mode is turned on when the Heating Air Speed button is pressed for the third time, and the ECO indicator light comes on. The operating rules of ECO mode are as follows: 1) The default setting temperature is 25°C and 18°C. When the ambient temperature is lower than 18°C, the heating wire runs at the high level. - Page 13 Cleaning Over time, dust can accumulate on the grille covers, filter (if applicable) and fan blades, which can affect the fans performance. It is recommended to clean the fan at least once a month. 1. Turn the unit OFF and disconnect the appliance from the power supply. 2.
-
Page 14: Maintenance
Warranty Please refer to the warranty card in the box for warranty information. For any troubleshooting advice, please contact the relative Customer Care Centre below. Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd 8 Lakeview Drive, 38 Harris Road, East Tamaki,... - Page 15 Notes...
- Page 16 Supplied by Glen Dimplex Australia 8 Lakeview Drive, Scoresby, Victoria, 3179 © Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex Australia.
