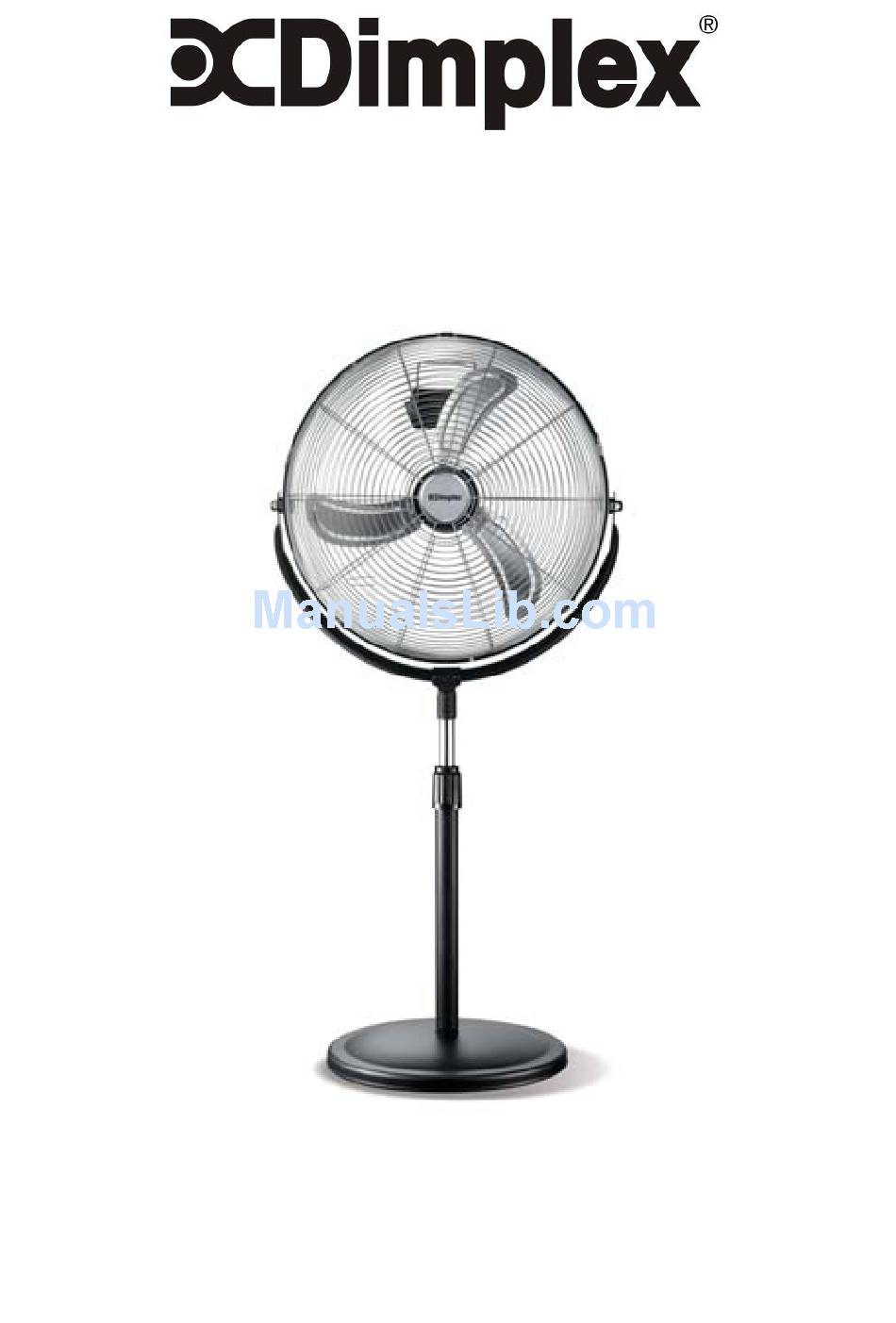

- Page 1 46cm HV PEDESTAL FAN Model: DCPF46 INSTRUCTION MANUAL PLEASE READ THE INSTRUCTION MANUAL CAREFULLY BEFORE USING THE UNIT...
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT INFORMATION……………..………………………………………… 1 STRUCTURE….……………….…………………………………………………………. 3 ASSEMBLY & OPERATION………………………………………………………….. 4 CLEANING & MAINTENANCE..…………………………………………………….. 5 TECHNICAL SPECIFICATIONS.….…………………………………………………. 7 WARRANTY.....…..………..……………………………………………………. 7... -
Page 3: Important Information
IMPORTANT INFORMATION Warnings Never place the unit near any gas appliances, fire or flammable • liquids. Never hit or shake the unit to prevent damage. • Never cover or obstruct the air inlet or outlet to prevent overheating. • Never spray water or place the unit near water to prevent electric •... - Page 4 The unit should not be placed in a damp place or where humidity is • high (such as a bathroom). Electrical connections shall be in accordance with National or Local • Codes. Keep the unit at least 1 metre away from electric appliances such as •...
-
Page 5: Structure
STRUCTURE 1. Front Guard 12. Washer 2. Screw 13. Inner Pillar 3. Blade 14. Long Screw 4. Rear Guard 15. Outer Connector 5. Motor 16. Outer Pillar 6. Switch Box 17. Base 7. Power Supply Cord 18. Basic Addition Part 8. -
Page 6: Assembly & Operation
ASSEMBLY & OPERATION Assembly of your pedestal fan 1. Locate the pedestal base of the fan (item 17). Insert the outer pillar (item 16) into the pedestal base, then fasten together with the additional part (item 17 & 18) using the screws provided. 2. -
Page 7: Cleaning & Maintenance
CLEANING AND MAINTENANCE Cleaning 1. Always unplug the fan before cleaning. 2. To clean the blade and grille assembly, remove the safety grille, unscrew the locknut and remove the blade from the unit. 3. Clean the unit with a soft cloth moistened with a mild soap solution. Use dry cloth to wipe the unit after cleaning. - Page 8 Maintenance If the unit’s working efficiency decreases, the unit is broken or other problems arise, please stop running the unit and unplug it. Ask for advice by calling your local after sales service agent or the Customer Care Centre on 1300 556 816 (AU) / +64 9 274 8265 (NZ)
-
Page 9: Technical Specifications
The warranty is valid for 12 months from date of purchase. For service advice, please contact the Customer Care Centre on 1300 556 816 (AU) / +64 9 274 8265 (NZ) Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd Unit 1, 21 Lionel Road...
