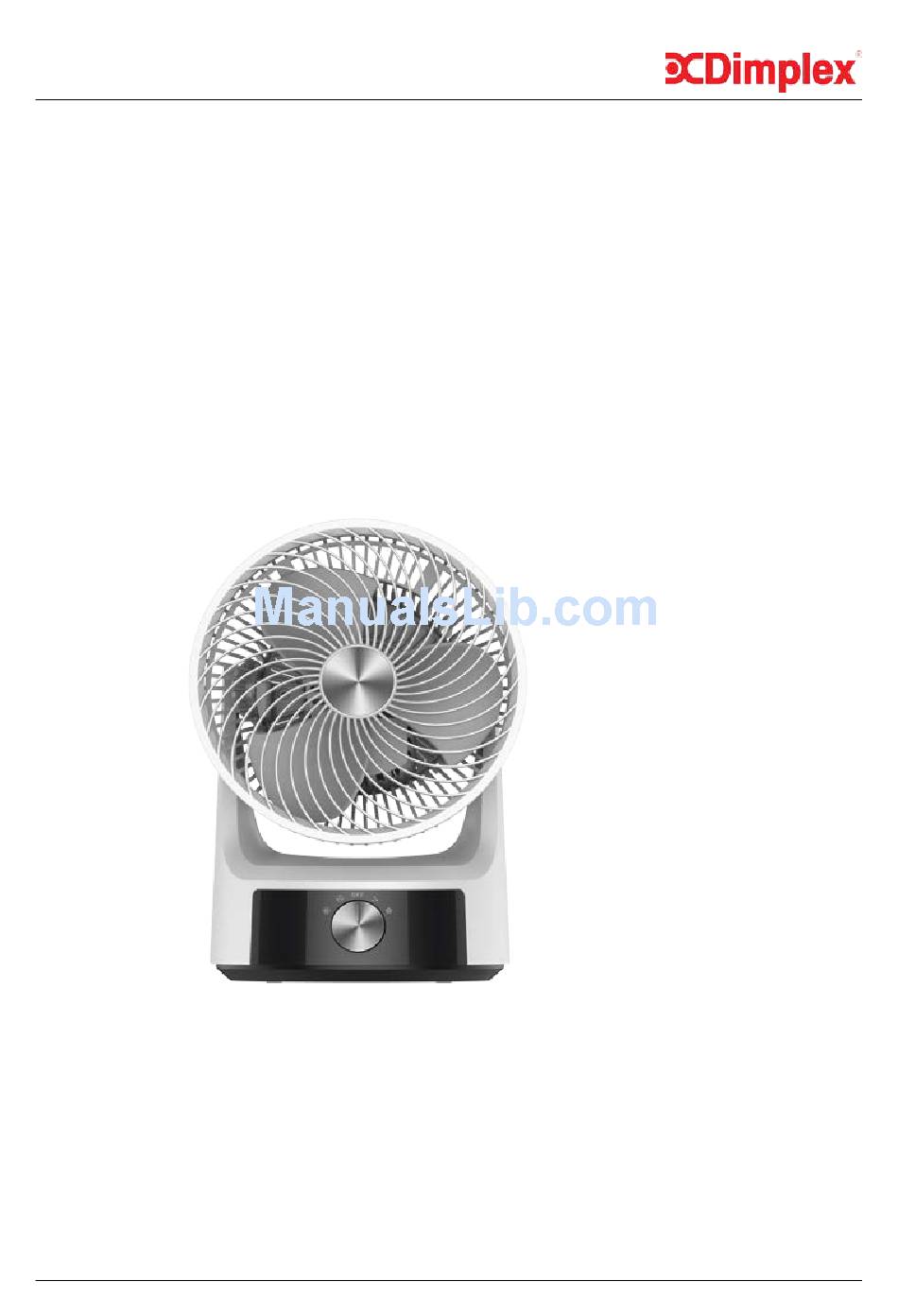

- Page 1 DCACM20 Air Circulator w/Manual Controls INSTRUCTION MANUAL PLEASE READ THE INSTRUCTION MANUAL CAREFULLY BEFORE USING THE UNIT. www.dimplex.com.au...
-
Page 2: Table Of Contents
CONTENTS WARNINGS AND PRECAUTIONS STRUCTURE OPERATION CLEANING AND MAINTENANCE TECHNICAL REFERENCE DATA WARRANTY www.dimplex.com.au... -
Page 3: Warnings And Precautions
WARNINGS & PRECAUTIONS Warnings • Never place the unit near gas appliances, flames or • flammable liquids. • Never hit or shake the unit. Doing so may cause damage. • Never cover or obstruct the air inlet or outlet. • Doing so may cause overheating. - Page 4 WARNINGS & PRECAUTIONS • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of ex- perience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Page 5: Structure

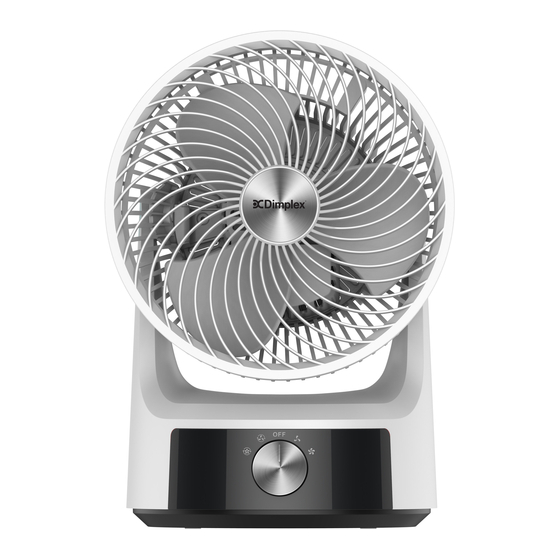

STRUCTURE Base Dial Setting panel Brand badge Front grille Pivot point – oscillation Rear housing Fan body Power cord... -
Page 6: Operation
OPERATION DISPLAY / CONTROL PANEL Low speed + Low speed oscillation High speed + oscillation High speed When the dial is aligned to the ‘OFF’ marker, the unit will be/turn off. Turn the dial left or right of this marker, and the unit will turn on. LOW SPEED Turn the dial one click right from the OFF position to operate in Low Speed. - Page 7 OPERATION HIGH Speed Turn the dial one click left from the OFF position to operate in High Speed. HIGH SPEED + OSCILLATION When operating in high speed, turn the dial left once more to start oscillation. 90° VERTICAL OSCILLATION Tilt the fan head to achieve up to 90° angled oscillation. Ensure the fan is OFF when adjusting the fan head position.
-
Page 8: Cleaning And Maintenance
CLEANING & MAINTENANCE CLEANING Over time, dust can accumulate on the rear grille cover and fan blades, which can affect the fans performance. It is recommended to clean the fan at least once a month. 1. Turn the unit OFF and disconnect the appliance from the power supply. 2. -
Page 9: Technical Reference Data
The warranty period is 12 months from the date of purchase. For service advice, please contact the Customer Care Centre on 1300 556 816 (AU) / 0800 666 2824 (NZ). Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd 1340 Ferntree Gully Road,...
