Summary of Contents for Dimplex DCACP25

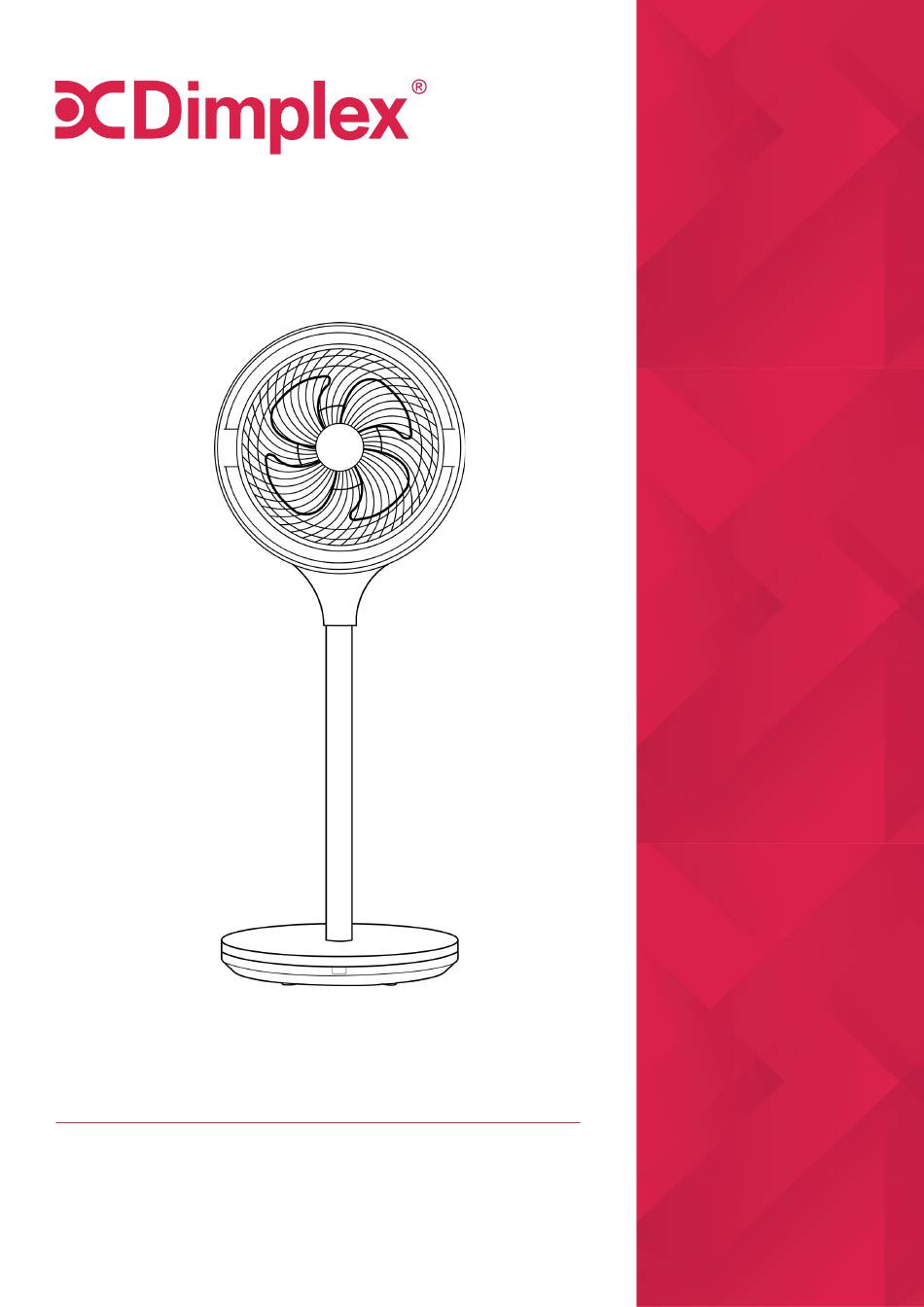

- Page 1 INSTRUCTION MANUAL Dimplex Pedestal Air Circulator Models: DCACP25 For domestic household use only.
- Page 2 IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. Note also the information presented on the appliance CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/ OR DAMAGE AND MAY INVALIDATE YOUR GUARANTEE Please read the operating instructions carefully before using your fan for the first time and keep them in a safe place.
- Page 3 Installation Intructions STRUCTURE 1. Base plate 2. Power cord 3. Button 4. Screw 5. Column 6. Button 7. Bracket 8. Rear grill 9. Handle 10. Fan blade 11. Front cover ASSEMBLY INSTRUCTIONS 1. Install the column on the base. 2. Install the motor part on the column.
- Page 4 Remote and Display REMOTE 1. On/Off button 2. Mode button 3. Swing/Oscillation button 4. Fan speed button 5. Timer button DISPLAY/CONTROL PANEL 1. On/Off button 2. Fan speed button 3. Mode button 4. Swing/Oscillation button 5. Timer button Operation Instructions When you first plug in, the fan will make a sound alert and then enter standby mode.
- Page 5 FAN SPEED The wind speed can be adjusted with the [FAN SPEED] button. Pressing the button repeatedly will rotate between Low, Medium and High wind speeds. MODES The wind mode can be adjusted by pressing the [MODE] button. Pressing the button repeatedly will rotate between Normal, Natural breeze, Sleep modes.
- Page 6 Maintenance Instructions The fan requires little maintenance. Do not try to fix it by yourself. Refer it to a qualified service person if service is needed. 1. Unplug the fan before cleaning and assembling. 2. To ensure there is adequate air circulation to the motor, keep the rear vents free of dust.
