INSTRUCTION MANUAL
Air Circulator + Purifier
Model: DCACP23
For domestic household use only.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DCACP23 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dimplex DCACP23

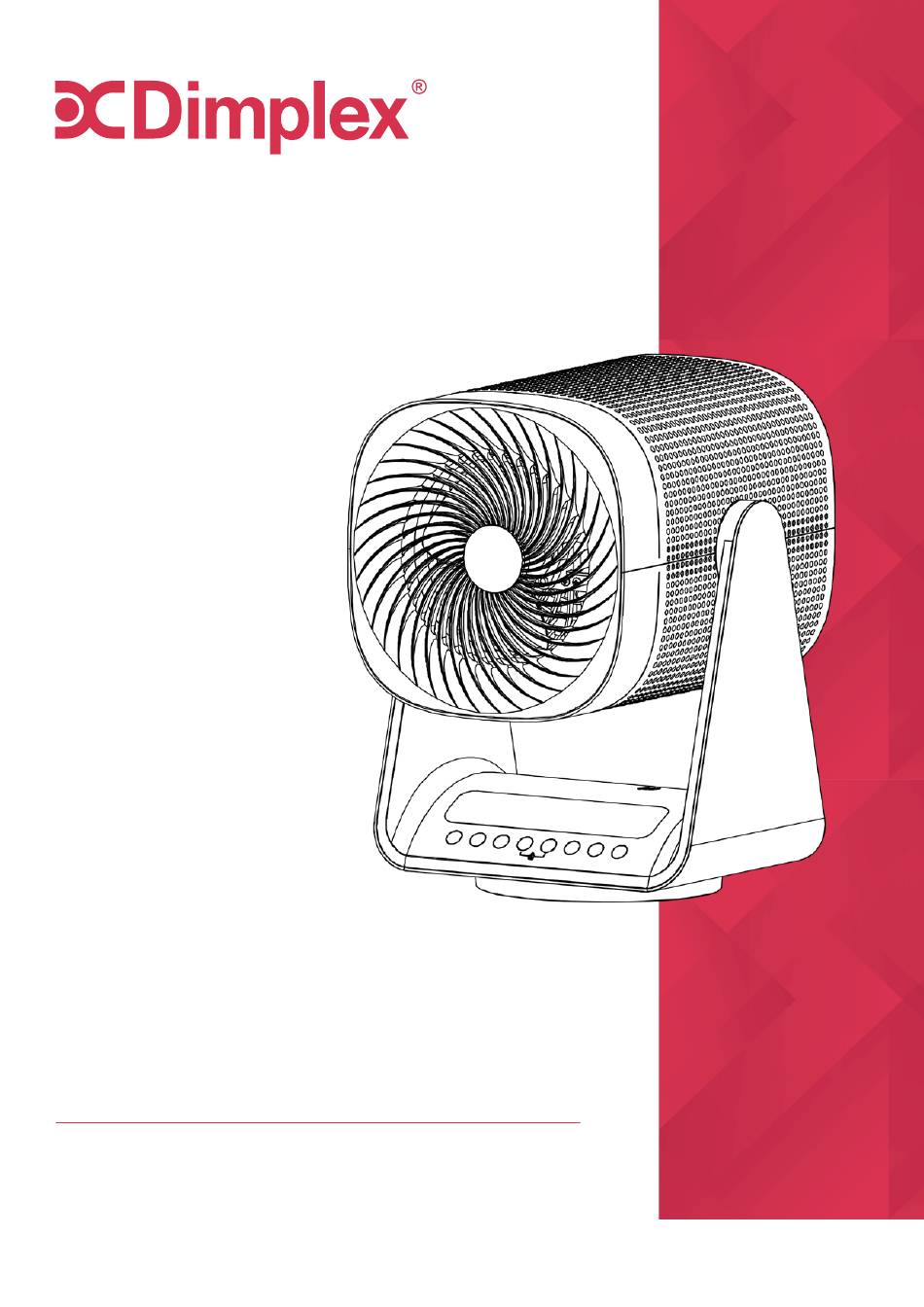

  • Page 1 INSTRUCTION MANUAL Air Circulator + Purifier Model: DCACP23 For domestic household use only.
  • Page 2 IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. Note also the information presented on the appliance CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY Please read the operating instructions carefully before using your air circulator for the first time and keep them in a safe place.
  • Page 3 • NEVER drop or insert any object or fingers into any openings. • Do not use the appliance in locations where paint, petrol or other flammable liquids are used or stored. • Do not use bug sprays or other flammable cleansers/vapour sprays on or around the unit.
  • Page 4 WARNING: KEEP BATTERIES OUT OF REACH OF CHILDREN • Swallowing may lead to serious injury in as little as 2 hours or death, due to chemical burns and potential perforation of the oesophagus. • If you suspect your child has swallowed or inserted a button battery immediately call the 24-hour Poisons Information Centre on 13 11 26 (in Australia) or 0800 764 766 (in New Zealand) for fast, expert advice.
  • Page 5 Exposed to the Near water If the power cable weather outdoors wires are frayed or cut Where small children No extension leads or Where the power may be left unattended power boards cable may be damaged On a slope or Where there is risk Where it may be uneven surface...
  • Page 6: Specification

    Specification DCACP23 Model no. Power supply 220-240V~, 50Hz Rated power Speed settings 24 hour Timer 5m/s Air speed Oscillation 80° Tilt Head 90° 55dB(A) Noise level (MAX) 3.3kg Weight (net) 268 x 234 x 422mm Dimensions (w x d x h)
  • Page 7: How It Works

    How It Works In contrast to a traditional fan which brings only cooling benefits when directly facing you; an air circulator works for any season, keeping the air in motion and making the entire room more comfortable to be in. This jet stream helps maintain a constant room temperature by ridding the room of cold and warm spots.
  • Page 8 Parts Fan Body Grille Front Grille Fan Blades Display Panel Control Panel Buttons Bottom Cover Back Cover Remote Control Holder Swing Bracket Swing Bracket Cover Base Cover Base...
  • Page 9: Remote Control

    Remote Control On/Off AI Purification Fan speed Increase Timer Swing Decrease Timer Plasma Lights Off Control Panel Air Quality Monitor High Timer Purifi- Replace Timer On Swing Plasma Speed Speed Speed Display cation Filter Swing Decrease Increase On/Off Plasma Light Off Speed Timer Timer...
  • Page 10: Usage Of Remote Control

    Usage of Remote Control 1. Unscrew the screw on the back of the remote. 2. To open the battery cover, press and hold in the direction of arrow 1 to release the upper snap, and then pull it out in the direction of arrow 2 as per shown below. 3.
  • Page 11: Operation

    Operation Note: Please remove the plastic bag from the HEPA filter before turning on the device. ON/OFF After the device is plugged in to a power supply, press the ON/OFF button to turn the unit on. The defualt state the device will enter is low wind speed, with display panel and other functionality off.
  • Page 12: Other Functions

    Operation HEPA FILTER REPLACEMENT In order to maintain the best air purification effect, this device will tell you when the HEPA filter is in need of replacement. The red indicator replacement filter light (as shown on page 8) will begin to flash when the filter needs to be replaced. If you want this logo to stop flashing, press and hold the AI PURIFICATION button for three seconds.
  • Page 13 HEPA Filter Installation 1. As per shown below, the back cover is locked when the small triangle is aligned to the 'lock symbol.' To unlock the back cover, rotate the back cover counter clockwise approximately 8 degrees or so the small triangle is more aligned to the 'unlock symbol.' 2.
  • Page 14 Cleaning Over time, dust can accumulate on the grille covers, filter (if applicable) and fan blades, which can affect the fans performance. It is recommended to clean the fan at least once a month. 1. Turn the unit OFF and disconnect the appliance from the power supply. 2.
  • Page 15: Maintenance

    Warranty Please refer to the warranty card in the box for warranty information. For any troubleshooting advice, please contact the relative Customer Care Centre below. Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd 8 Lakeview Drive, 38 Harris Road, East Tamaki,...
  • Page 16 Supplied by Glen Dimplex Australia 8 Lakeview Drive, Scoresby, Victoria, 3179 © Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex Australia.
