Summary of Contents for Dimplex DCAC20T

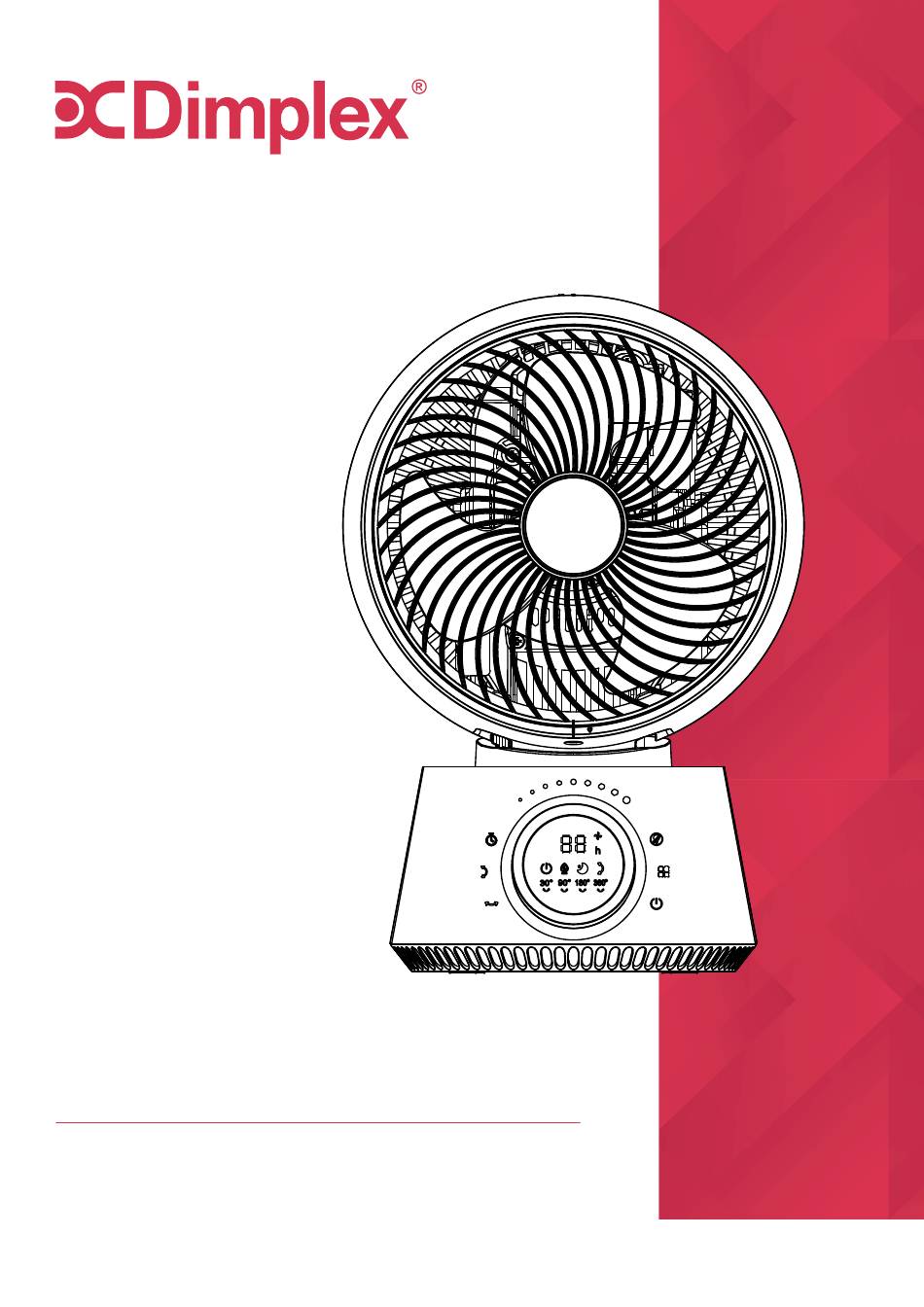

- Page 1 INSTRUCTION MANUAL DC Air Circulator Model: DCAC20T For domestic household use only.
- Page 2 IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. Note also the information presented on the appliance CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY Please read the operating instructions carefully before using your air circulator for the first time and keep them in a safe place.
- Page 3 • DO NOT cover cord with carpeting, throw rugs, runners, or similar coverings. • DO NOT route cord under furniture or appliances. Take care to position the cord away from traffic areas and where it will not be a tripping hazard. •...
- Page 4 WARNING - KEEP BATTERIES OUT OF REACH OF CHILDREN • Swallowing may lead to serious injury in as little as 2 hours or death, due to chemical burns and potential perforation of the oesophagus. • If you suspect your child has swallowed or inserted a button battery immediately call the 24-hour Poisons Information Centre on 13 11 26 (in Australia) or 0800 764 766 (in New Zealand) for fast, expert advice.
- Page 5 Exposed to the Near water If the power cable weather outdoors wires are frayed or cut Where small children No extension leads or Where the power may be left unattended power boards cable may be damaged On a slope or Where there is risk Where it may be uneven surface...
-
Page 6: Specification
Specification DCAC20T Model no. Power supply 220-240V~, 50Hz Rated power Speed settings Timer 12 hours 6.5m/s Air speed Vertical oscillation Horizontal oscillation 56dB(A) Noise level (MAX) 2.5kg Weight (net) 255 x 237 x 374mm Dimensions (w x d x h) -
Page 7: How It Works
Most fans simply lack the aerodynamics to keep the air in the room in motion. As opposed to blowing air directly in contact with it, our Dimplex air circulators create a 3D oscillating draught in the form of an invisible jet stream. - Page 8 Parts (1) Fan Head (7) Rotating Bracket (2) Front Grille (8) Display Window (3) Back Grille (9) Rear Shell (4) Speed Dial (10) Front Shell (5) Front Cover (11) Bottom Cover (6) Upper Base Cover...
-
Page 9: Remote Control
Control Panel & LED Display Screen Off Timer Up/Down Wind Mode Swing Left/Right On/Off Swing LED Display Timer Vertical Swing On/Off Sleep Wind Natural Wind Horizontal Swing Remote Control On/Off Display On/Off Increase Fan Speed Decrease Fan Speed Up/Down Swing Left/Right Swing Mode Timer... -
Page 10: Operation
Operation ON/OFF After the power is turned on, the device will beep twice and enter standby state. In standby state, all functions and displays will be off, and all buttons aside from the On/Off button are invalid. In standby state, pressing the On/Off button once will turn on the device. - Page 11 Operation WIND MODE By default, when the wind mode button is first pressed, the device will automatically be on normal wind mode. Press the button again to switch modes. This will switch the device wind modes in the following sequence: Normal - Natural - Sleep - Normal etc.
- Page 12 Cleaning Over time, dust can accumulate on the grille covers, filter (if applicable) and fan blades, which can affect the fans performance. It is recommended to clean the fan at least once a month. 1. Turn the unit OFF and disconnect the appliance from the power supply. 2.
-
Page 13: Maintenance
Warranty Please refer to the warranty card in the box for warranty information. For any troubleshooting advice, please contact the relative Customer Care Centre below. Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd 8 Lakeview Drive, 38 Harris Road, East Tamaki,... - Page 16 Supplied by Glen Dimplex Australia 8 Lakeview Drive, Scoresby, Victoria, 3179 © Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex Australia.
