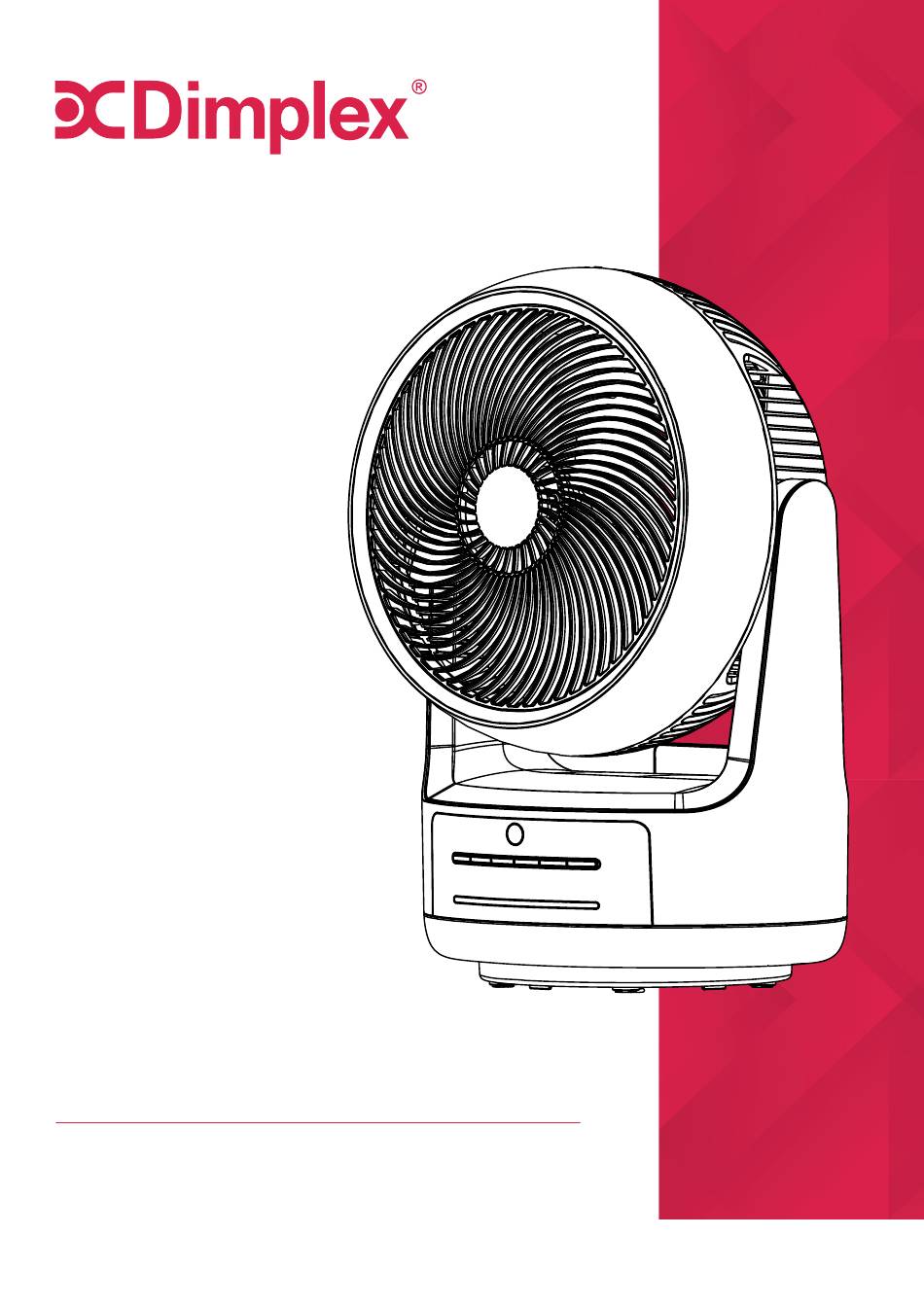

- Page 1 INSTRUCTION MANUAL Heat & Cool Air Circulator Fan Model: DCAC25HC For domestic household use only.
- Page 2 IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. Note also the information presented on the appliance CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY Please read the operating instructions carefully before using your air circulator for the first time and keep them in a safe place.
- Page 3 • Please ask a professional service agent to repair the product. Improper repair may cause danger to users. • Disconnect the appliance from mains power whenever it is not in use, before relocating it, and before cleaning. • Operate the appliance only at the voltage specified on the rating label. •...
- Page 4 WARNING - KEEP BATTERIES OUT OF REACH OF CHILDREN • Swallowing may lead to serious injury in as little as 2 hours or death, due to chemical burns and potential perforation of the oesophagus. • If you suspect your child has swallowed or inserted a button battery immediately call the 24-hour Poisons Information Centre on 13 11 26 (in Australia) or 0800 764 766 (in New Zealand) for fast, expert advice.
- Page 5 Exposed to the Near water If the power cable weather outdoors wires are frayed or cut Where small children No extension leads or Where the power may be left unattended power boards cable may be damaged On a slope or Where there is risk Where it may be uneven surface...
-
Page 6: Specification
Specification Model no. DCAC25HC Power supply 230-240V~, 50Hz 40W (cooling) Rated power 900W/1500W (heating) Speed settings 4 (cooling) Heat settings Timer 1-4 hours Vertical oscillation (manual) Horizontal oscillation (automatic) Noise level (MAX) ≤55dB Weight (net) 3.5kg Dimensions (w x d x h) 280 x 220 x 412mm •... -
Page 7: How It Works
Most fans simply lack the aerodynamics to keep the air in the room in motion. As opposed to blowing air directly in contact with it, our Dimplex air circulators create a 3D oscillating draught in the form of an invisible jet stream. - Page 8 Parts (1) Front Shell (9) Rear guard (2) Front grille (10) Carry handle (3) Support (11) Rear shell (4) Remote control receiver (12) Dust filter (5) Operation buttons (13) Remote control (6) LED Indicators (14) Control panel (7) Lower shell (15) Body (8) Base (16) Foot pad...
-
Page 9: Remote Control
Control Panel & LED Display On/Standby Timer function (1h, 2h, 4h) Fan Speed (Cooling) Oscillation Temperature selection (25, 35) High/Low Heat setting Remote Control Fan Speed (Cooling) On/Standby Temperature selection Timer function Oscillation High/Low Heat Setting To remove the cover of the remote, remove the screw. -
Page 10: Operation
Operation FUNCTION After the power is turned on, the device beeps twice and enters the standby state. All functions and displays are turned off. (Note: If you press the On/Standby button within 10 seconds after turning off the heater or directly press the On/Standby button in the heating state, the fan will delay 10 seconds before turning off. -
Page 11: Timer Setting
Operation TIMER SETTING To enable to timer function, press the Timer button (4). Pressing this button will cycle through the timer settings None, 1 Hour, 2 Hours and 4 Hours. The corresponding indicator lights will turn on to match their respective setting. The indicator lights will show the remaining time left, e.g. - Page 12 Cleaning Over time, dust can accumulate on the grille covers, filter (if applicable) and fan blades, which can affect the fans performance. It is recommended to clean the fan at least once a month. 1. Turn the unit OFF and disconnect the appliance from the power supply. 2.
-
Page 13: Maintenance
Warranty Please refer to the warranty card in the box for warranty information. For any troubleshooting advice, please contact the relative Customer Care Centre below. Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd 8 Lakeview Drive, 38 Harris Road, East Tamaki,... - Page 14 Supplied by Glen Dimplex Australia 8 Lakeview Drive, Scoresby, Victoria, 3179 © Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex Australia.
