U-Line H-7935 Manual

H-7935, H-7936, H-9672
H-9673, H-10903, H-10904
ALL-WEATHER
LOW PROFILE
FLOOR SCALE
SITE SELECTION
Select a site for the floor scale where it is least likely to
be damaged by forklifts and other material handling
devices. Floor scale load cell weighing elements are
prone to overload damage caused by side impacts,
falling objects and weight loads that exceed the rated
capacity of the scale.
Site should be:
• Level within 1/4".
• Free from vibration.
• Clean of debris.
• Out of the way of vehicle traffic patterns, unless
installed in a pit while having a rated capacity
that exceeds all loaded vehicle weights that could
possibly drive onto or contact the scale.
The cable from the floor scale to the digital weight
indicator should be run through conduit to protect it
against possible damage. Running the instrument cable
through conduit is the best method of protection.
UNPACKING
1. Inspect your shipment for damage. If you see visible
signs of damage, notify carrier at once.
2. Remove floor scale from the shipping pallet.
3. Unpack the digital indicator. Digital indicator and
power cord are located in the junction box in the
side of the scale. (See Figure 2)
PAGE 1 OF 18
1-800-295-5510
uline.com
INTRODUCTION
INTRODUCTION
RAMP INSTALLATION (OPTIONAL)
1. Set floor scale in a desired location.
2. Position the scale feet inside the mounting tabs.
(See Figure 1)
3. Anchor the ramp to the floor using two 1/2 x 3"
anchors (not included).

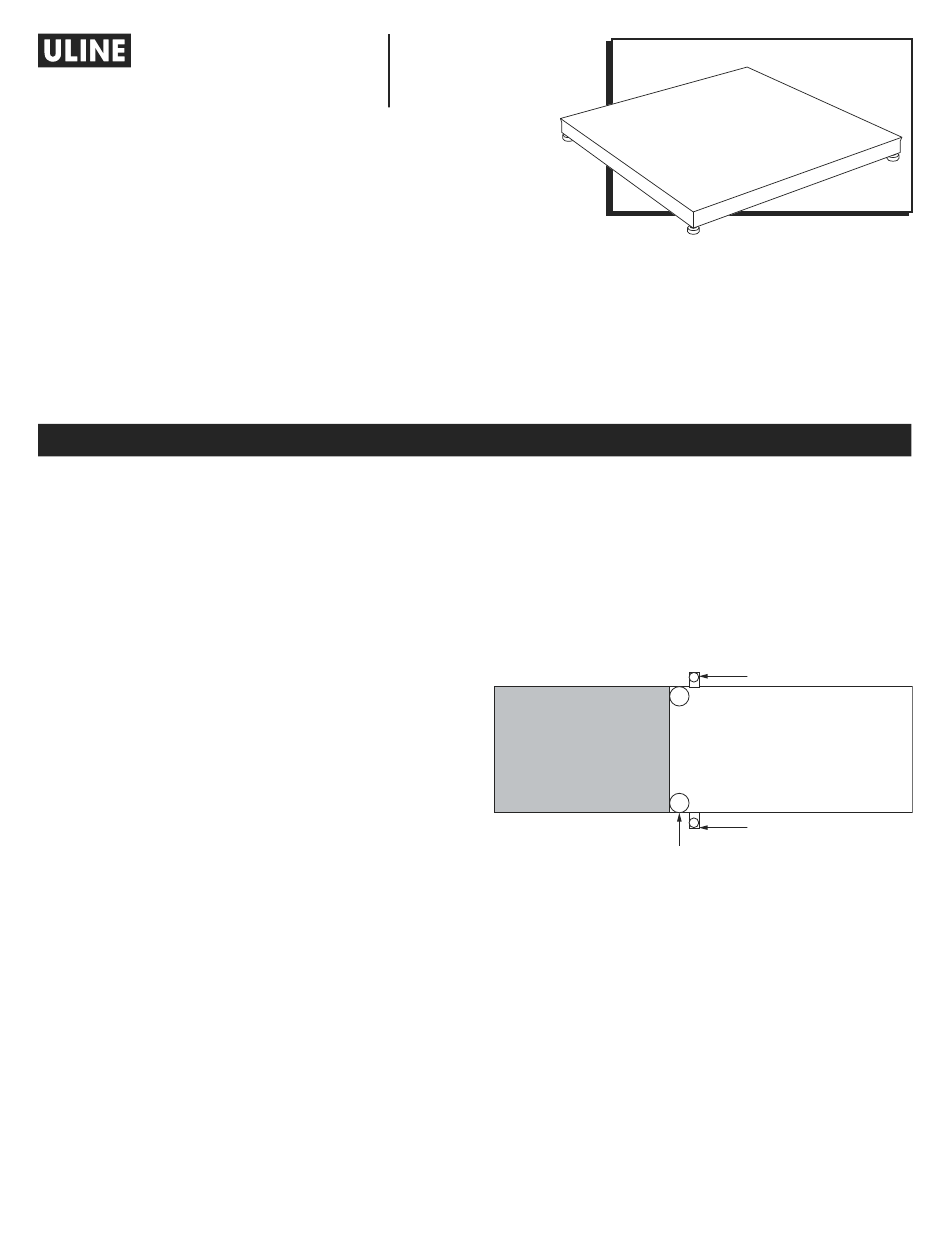

Figure 1
Ramp
HEIGHT AND LEVEL ADJUSTMENTS
1. Unlock the locknuts on all four feet.
2. Using a pry bar, lift the weight of the scale base off
the scale feet.
3. Make adjustments by screwing the feet
counterclockwise. All four feet should make firm
contact with the floor.
4. Do not screw feet counterclockwise more than ten
turns.
5. Tighten locknuts on feet.
6. Check your work.
Para Español, vea páginas 7-12.
Pour le français, consulter les pages 13-18.
Mounting Tabs
Scale
Anchor goes here.
Load Cell Foot
0924 IH-7935
