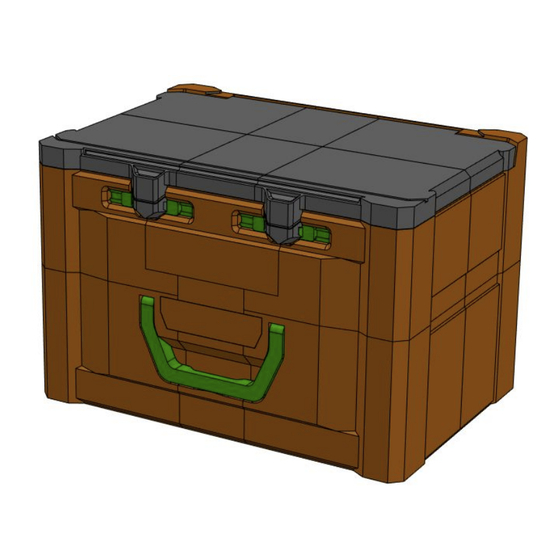

Omni Duffle Bag Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Duffle Bag Main Assembly

Advertisement

loading
Need help?

Need help?

Do you have a question about the Duffle Bag and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Omni Duffle Bag

Summary of Contents for Omni Duffle Bag

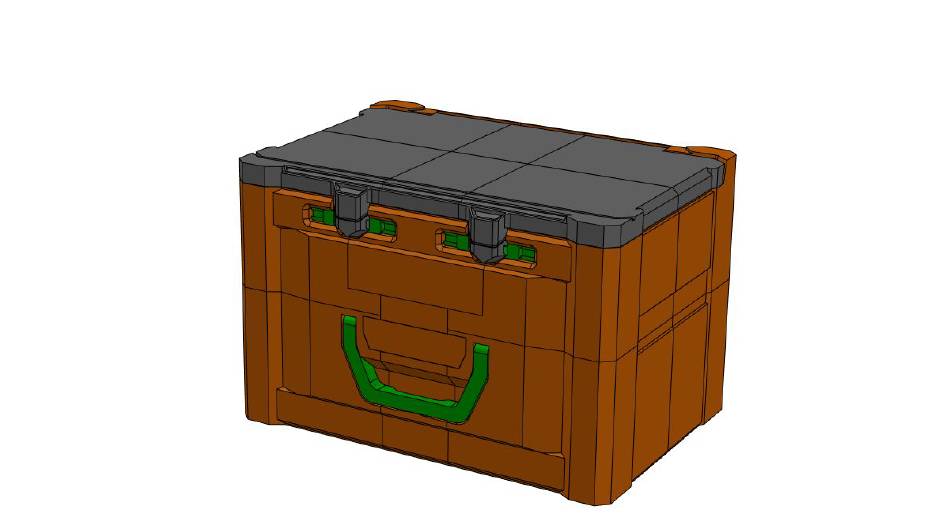

  • Page 1 Duffle Bag Main Assembly...
  • Page 2 Bottom Subassembly STEP 1 : Take BA4 and BA1 Pieces and Insert #8 Nut as shown below Insert the #8 Nut In this pocket Insert the #8 Nut In these pocket...
  • Page 3 Bottom Subassembly STEP 2 : Connect both pieces using the #8-32 x 0.5in Screw Insert the #8-32 x 0.5in Screw here...
  • Page 4 Bottom Subassembly STEP 3 : Repeat the STEP 1 and STEP 2 on BA3 and BA6 Pieces Insert the #8-32 x 0.5in Screw here...
  • Page 5 Bottom Subassembly STEP 4 : Insert #8 Nut on BA2 and BA5 Pieces as shown Insert the #8 Nut Insert the #8 Nut In these pocket In these pocket...
  • Page 6 Bottom Subassembly STEP 5 : Arrange Parts as shown here...
  • Page 7 Bottom Subassembly STEP 6 : Insert the “Center Lock Plate” and Screw it using #8-32 x 0.5in Screws Center Lock Plate Insert the #8-32 x 0.5in Screw on All 8 locations on center lock plate...
  • Page 8 Bottom Subassembly STEP 7 : Insert the “Handle” and place the Dowel pins Place the Handle at this position On Currently Prepared Assembly Insert Dia 5 x 50mm Length Dowel Pins passing through Handle on both sides...
  • Page 9 Bottom Subassembly STEP 8 : Prepare the “Handle Plate” Insert the #8 Nut In these pocket...
  • Page 10 Bottom Subassembly STEP 9 : Insert and Screw the “Handle Plate” Insert the #8-32 x 0.5in Screw on All 3 Locations and screw it...
  • Page 11 Bottom Subassembly STEP 10 : Insert and Screw the “Handle Plate” Insert the #8-32 x 0.5in Screw on All 3 Locations and screw it...
  • Page 12 Bottom Subassembly STEP 11 : Insert #8 Nuts for further assembly Insert the #8 Nut In these pocket Insert the #8 Nut In these pocket Insert the #8 Nut In these pocket Insert the #8 Nut In these pocket...
  • Page 13 Upper Subassembly STEP 12 : Prepare the Upper Level, Take BB4 and BB1 Pieces together Insert the #8 Nut In this pocket...
  • Page 14 Upper Subassembly STEP 13 : Prepare the Upper Level, Take BB4 and BB1 Pieces together Insert the #8 Nut In this pocket...
  • Page 15 Upper Subassembly STEP 14 : Connect both pieces using the #8-32 x 0.5in Screw Insert the #8-32 x 0.5in Screw here...
  • Page 16 Upper Subassembly STEP 15 : Repeat the STEP 1 and STEP 2 on BB3 and BB6 Pieces Insert the #8-32 x 0.5in Screw here...
  • Page 17 Upper Subassembly STEP 16 : Place the BB2 part in between Insert the #8 Nut In these pockets Connect BB2 using SQ Lock Plate and Insert #8-32 x 0.5in Screws...
  • Page 18 Upper Subassembly STEP 17 : Place the BB5 part in between Insert the #8 Nut In these pockets...
  • Page 19 Upper Subassembly STEP 18 : Connect BB5 using Screws & Insert #8 Nut on pockets Insert the #8 Nut In these pockets Connect BB5 using #8-32 x 0.5in Screws Insert the #8 Nut In these pockets...
  • Page 20 STEP 19 : Connect Slider Assembly Insert the Slider Assembly in both pockets and NOTE : Both slider assembly must be mounted in connect it using #8-32 x 0.5in Screws opposite orientation and must be as shown here Upper Subassembly...
  • Page 21 STEP 20 : Connect Slider Assembly Insert the Slider Assembly in both pockets and NOTE : Both slider assembly must be mounted in connect it using #8-32 x 0.5in Screws opposite orientation and must be as shown here Upper Subassembly...
  • Page 22 Upper Subassembly STEP 21 : Insert #8 Nut Insert the #8 Nut In these pockets...
  • Page 23 STEP 22 : Take the Bottom and Upper Subassemblies together Place upper subassembly on Bottom Subassembly as shown here Upper Subassembly Bottom Subassembly...
  • Page 24 STEP 23 : Connect both using RC Lock Plate and Insert #8-32 x 0.5in Screws...
  • Page 25 STEP 24 : Insert #8-32 x 0.5in Screws on connecting places...
  • Page 26 Top Subassembly STEP 25 : Take T1, T2, T3 Parts and assemble them together Insert the #8 Nut In these pockets and connect pieces using #8-32 x 0.5in Screws...
  • Page 27 Top Subassembly STEP 26 : Take T4, T5, T6 Parts and assemble them together Insert the #8 Nut In these pockets and connect pieces using #8-32 x 0.5in Screws...
  • Page 28 Top Subassembly STEP 27 : Assemble all parts together as shown here Insert the #8 Nut In these pockets Opposite side too...
  • Page 29 Top Subassembly STEP 28 : Assemble all parts together as shown here Insert the #8-32 x 0.5in Screw here...
  • Page 30 Top Subassembly STEP 29 : Insert the “Center Lock Plate” and Screw it using #8-32 x 0.5in Screws Center Lock Plate Insert the #8-32 x 0.5in Screw on All 8 locations on center lock plate...
  • Page 31 Top Subassembly STEP 30 : Insert Dia 15x 3 Magnet on Top Sub Assembly Insert Dia 15 x 3 Magnet on Top Parts...
  • Page 32 Main Assembly STEP 31 : Put Top Sub Assembly on Bottom Sub Assembly...
  • Page 33 Main Assembly STEP 32 : Insert Dia 5 x 50mm Dowel Pins Insert Dia 5 x 50mm Dowel Pin in this pocket and Slide to left...
  • Page 34 Main Assembly STEP 33 : Insert Dia 5 x 50mm Dowel Pins Again Insert Dia 5 x 50mm Dowel Pin in this pocket and Slide to right...
  • Page 35 Main Assembly STEP 34 : Insert Dia 5 x 50mm Dowel Pins Insert Dia 5 x 50mm Dowel Pin in this pocket and Slide to left...
  • Page 36 Main Assembly STEP 35 : Insert Dia 5 x 50mm Dowel Pins Again Insert Dia 5 x 50mm Dowel Pin in this pocket and Slide to right...

  • Page 37: Lock In Place

    LOCK IN PLACE Lead comes down...
  • Page 38 Main Assembly...
