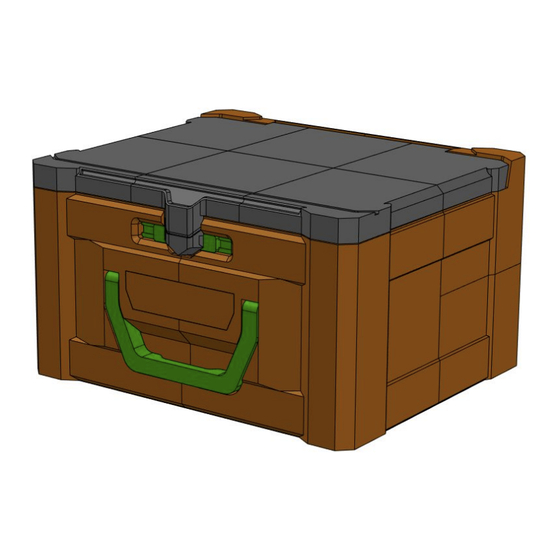

Omni Briefcase Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. Omni Manuals
  4. Laboratory Equipment
  5. Briefcase
  6. Assembly instructions manual

Omni Briefcase Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Briefcase Main Assembly

Advertisement

loading
Need help?

Need help?

Do you have a question about the Briefcase and is the answer not in the manual?

Questions and answers

Related Manuals for Omni Briefcase

Summary of Contents for Omni Briefcase

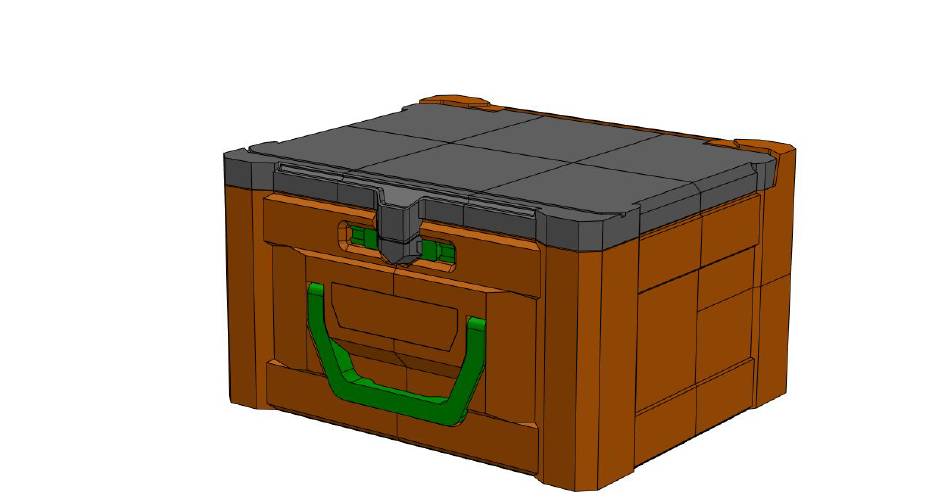

  • Page 1 Briefcase Main Assembly...
  • Page 2 Bottom Subassembly STEP 1 : Take B1_A Piece and Insert #8 Nut as shown below Insert the #8 Nut In this pocket Insert the #8 Nut B1_A In these pocket Insert the #8 Nut In these pocket...
  • Page 3 Bottom Subassembly STEP 2 : Connect B1_A and B1_B pieces using the #8-32 x 0.5in Screw Place B1_B on the top Of B1_A and screw both Pieces together B1_B B1_A Insert the #8-32 x 0.5in Screw here...
  • Page 4 Bottom Subassembly STEP 3 : Take B4_A Piece and Insert #8 Nut as shown below Insert the #8 Nut In these pocket B4_A Insert the #8 Nut In these pocket...
  • Page 5 Bottom Subassembly STEP 4 : Connect B1_A-B1_B and B4_A pieces using the #8-32 x 0.5in Screw B4_A B1_B Insert the #8-32 x 0.5in Screw here B1_A...
  • Page 6 Bottom Subassembly STEP 5 : Take B2_A Piece and Insert #8 Nut as shown below Insert the #8 Nut In this pocket Insert the #8 Nut In these pocket B2_A Insert the #8 Nut In these pocket...
  • Page 7 Bottom Subassembly STEP 6 : Connect B2_A and B2_B pieces using the #8-32 x 0.5in Screw Insert the #8 Nut In these pocket B2_B Place B2_B on the top Of B2_A and screw both Pieces together B2_A Insert the #8-32 x 0.5in Screw here...
  • Page 8 Bottom Subassembly STEP 7 : Take B3_A Piece and Insert #8 Nut as shown below Insert the #8 Nut In these pocket B3_A Insert the #8 Nut In these pocket...
  • Page 9 Bottom Subassembly STEP 8 : Connect B2_A-B2_B and B3_A pieces using the #8-32 x 0.5in Screw Insert the #8 Nut In these pocket Insert the #8-32 x 0.5in Screw here B2_B B3_A B2_A...
  • Page 10 Bottom Subassembly STEP 9 : Place Prepared Parts together B1_B B2_B B1_A B2_A B4_A B3_A...
  • Page 11 Bottom Subassembly STEP 10 : Insert Lock_Plate and connect pieces together B1_B Lock_Plate B2_B Use #8-32 x 0.5in to assemble B1_A Lock_Plate with Other parts B2_A B4_A B3_A...
  • Page 12 Bottom Subassembly STEP 11 : Insert the “Center_Lock_Plate” and Screw it using #8-32 x 0.5in Screws Center_Lock_Plate Insert the #8-32 x 0.5in Screw on All 4 locations on center lock plate...
  • Page 13 Bottom Subassembly STEP 12 : Prepare the “Handle Plate” Insert the #8 Nut In these pocket...
  • Page 14 Bottom Subassembly STEP 13 : Insert the “Handle” and place the Dowel pins Place the Handle at this position Insert Dia 5 x 50mm Length Dowel Pins passing On Currently Prepared Assembly through Handle on both sides...
  • Page 15 Bottom Subassembly STEP 14 : Insert and Screw the “Handle Plate” Insert the #8-32 x 0.5in Screw on All 3 Locations and screw it...
  • Page 16 Bottom Subassembly STEP 15 : Insert #8 Nut as shown below Insert the #8 Nut In these pocket...
  • Page 17 STEP 16 : Connect Slider Assembly Slider Assembly Insert the Dia15x3 Magnet Insert the Slider Assembly in pocket and connect it using #8-32 x 0.5in Screws Bottom Subassembly...
  • Page 18 Top Subassembly STEP 17 : Take Top-4, Top-5, Top-6 Parts and assemble them together Insert the #8 Nut In these pockets and connect pieces using #8-32 x 0.5in Screws...
  • Page 19 Top Subassembly STEP 18 : Take Top-1, Top-2, Top-3 Parts and assemble them together Insert the #8 Nut In these pockets and connect pieces using #8-32 x 0.5in Screws...
  • Page 20 Top Subassembly STEP 19 : Assemble all parts together as shown here Insert the #8 Nut In these pockets Opposite side too...
  • Page 21 Top Subassembly STEP 20 : Assemble all parts together as shown here Insert the #8-32 x 0.5in Screw here...
  • Page 22 Top Subassembly STEP 21 : Assemble all parts together as shown here Center_Lock_Plate Use #8-32 x 0.5in to assemble Center_Lock_Plate with Other parts...
  • Page 23 Top Subassembly STEP 22 : Insert Dia 15x 3 Magnet on Top Sub Assembly Insert Dia 15 x 3 Magnet on Top Part...
  • Page 24 Main Assembly STEP 23 : Place Top Sub Assembly on Bottom Sub Assembly...
  • Page 25 Main Assembly STEP 24 : Insert Dia 5 x 50mm Dowel Pins Insert Dia 5 x 50mm Dowel Pin in this pocket and Slide to left...
  • Page 26 Main Assembly STEP 25 : Insert Dia 5 x 50mm Dowel Pins Again Insert Dia 5 x 50mm Dowel Pin in this pocket and Slide to right...
  • Page 27 Main Assembly STEP 26 : Insert Dia 5 x 50mm Dowel Pins Insert Dia 5 x 50mm Dowel Pin in this pocket and Slide to left...
  • Page 28 Main Assembly STEP 27 : Insert Dia 5 x 50mm Dowel Pins Insert Dia 5 x 50mm Dowel Pin in this pocket and Slide to right...

  • Page 29: Lock In Place

    LOCK IN PLACE Lead comes down...
  • Page 30 Briefcase Main Assembly...
