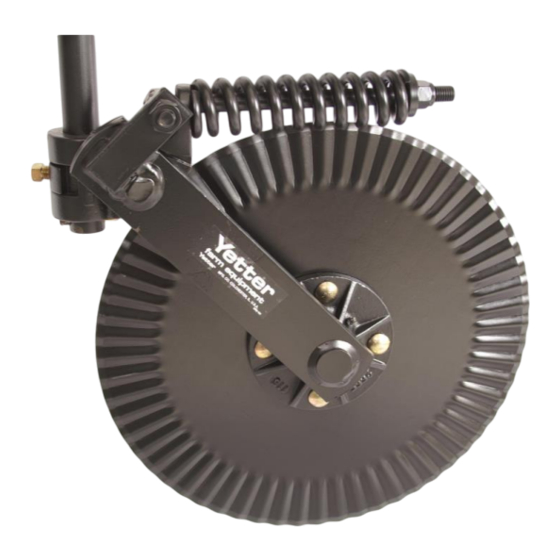

- Page 1 2910-130-HD HEAVY DUTY COULTER OPERATOR’S MANUAL PART IDENTIFICATION 2565-743_REV_B • 09/2024 YETTER MANUFACTURING CO. FOUNDED 1930 Colchester, IL 62326-0358 Toll free: 800/447-5777 309/776-3222 (Fax) Website: www.yetterco.com E-mail: info@yetterco.com...
-
Page 4: Bolt Torque
BOLT TORQUE Mounting bolts and hardware Before operating the 2910-130-HD Coulter for the first time, check to be sure that all hardware is tight. Check all hardware again after approximately 50 hours of operation and at the beginning of each planting season. - Page 5 YETTER 2910-130-HD HEAVY DUTY COULTER...
-
Page 6: Installation
2910-130-HD INSTALLATION 1. Assembly 3/8 x 2-1/2” roll pin into hole closest to end of 1-1/2” diameter shank, leaving approximately equal amount protruding out each side. Note: offset shanks require that you perform step 2 first then step 1. 2. Insert lock collar into pivot casting and slide shank up through casting and lock collar. -
Page 7: Operation
OPERATION 1. Set/mount coulter blades to run perpendicular to the soil. Operation depth and blade wear can be affected if the coulter is mounted crooked or if the toolbar is not level side to side. 2. After a few hours of use, check all bolts for tightness and proper torque. 3. -
Page 8: Parts Identification
PARTS IDENTIFICATION BLADE OPTIONS PART NO. DESCRIPTION PART NO. DESCRIPTION 2571-164 14-5/8" Wave Blade (8 Wave) 2571-154 18" Wavy Blade (8 Wave) 2571-167 14-4/8" 25 Multi-Wave Blade 2571-155 18" 13 Wave Blade 2571-154 16" Bubble Flute Blade 2571-179 18" Multi-Wave Blade (25 Wave) 2571-163 16"... - Page 9 PARTS IDENTIFICATION 2990-159 Clamp Kit, 3” Diamond Bar Key Qty. Part No. Description 2502-369 1/2-13 x 8” HHCS Gr. 5 ZP 2990-314 Clamp Plate, 4” Sq. or 3” Diamond 2970-326 Adaptor, 3” Sq. Diamond Bar 2990-360 Clamp Casting, Drilled 2503-379 5/8-11 x 1” Sq. HCPSS Gr. 5 ZP 2520-357 1/2-13 Lock Hex Nut ZP 2990-160 Clamp Kit, 3-1/2”...
- Page 10 PARTS IDENTIFICATION 2990-154 Clamp Kit, 2-1/2” Sq. Bar 2990-155 Clamp Kit, 2 x 6 Bar Key Qty. Part No. Description Key Qty. Part No. Description 2502-368 1/2-13 x 5-1/2” HHCS GR. 5 ZP 2502-362 1/2-13 X 5” HHCS GR. 5 ZP 2990-313 Clamp Plate, 2-1/2 Square Bar 2975-363 Clamp Plate, Universal 2990-360 Clamp Casting, Drilled...
- Page 11 PARTS IDENTIFICATION 2975-151 Clamp Kit, 3 x 6 Bar 2990-172 Clamp Kit, 4 x 6 Bar Key Qty. Part No. Description Key Qty. Part No. Description 2502-373 1/2-13 x 6” HHCS GR. 5 ZP 2502-371 1/2-13 X 7” HHCS GR. 5 Zp 2975-363 Clamp Plate, Universal 2975-363 Clamp Plate, Universal 2990-360 Clamp Casting, Drilled...
- Page 12 East, the South, the West and now north into Canada. We’re even getting orders from as far away as Australia and Africa. So, when you buy Yetter products . . .you’re buying a name that’s recognized. A name that’s known and respected. A name that’s become a part of American agriculture and has become synonymous with quality and satisfaction in the field of conservation tillage.
